LTX 1046 (13WP91AT010) - Cub Cadet 46" Lawn Tractor (2010) Frame, Electrical & PTO Parts Diagram

46" Lawn Tractor

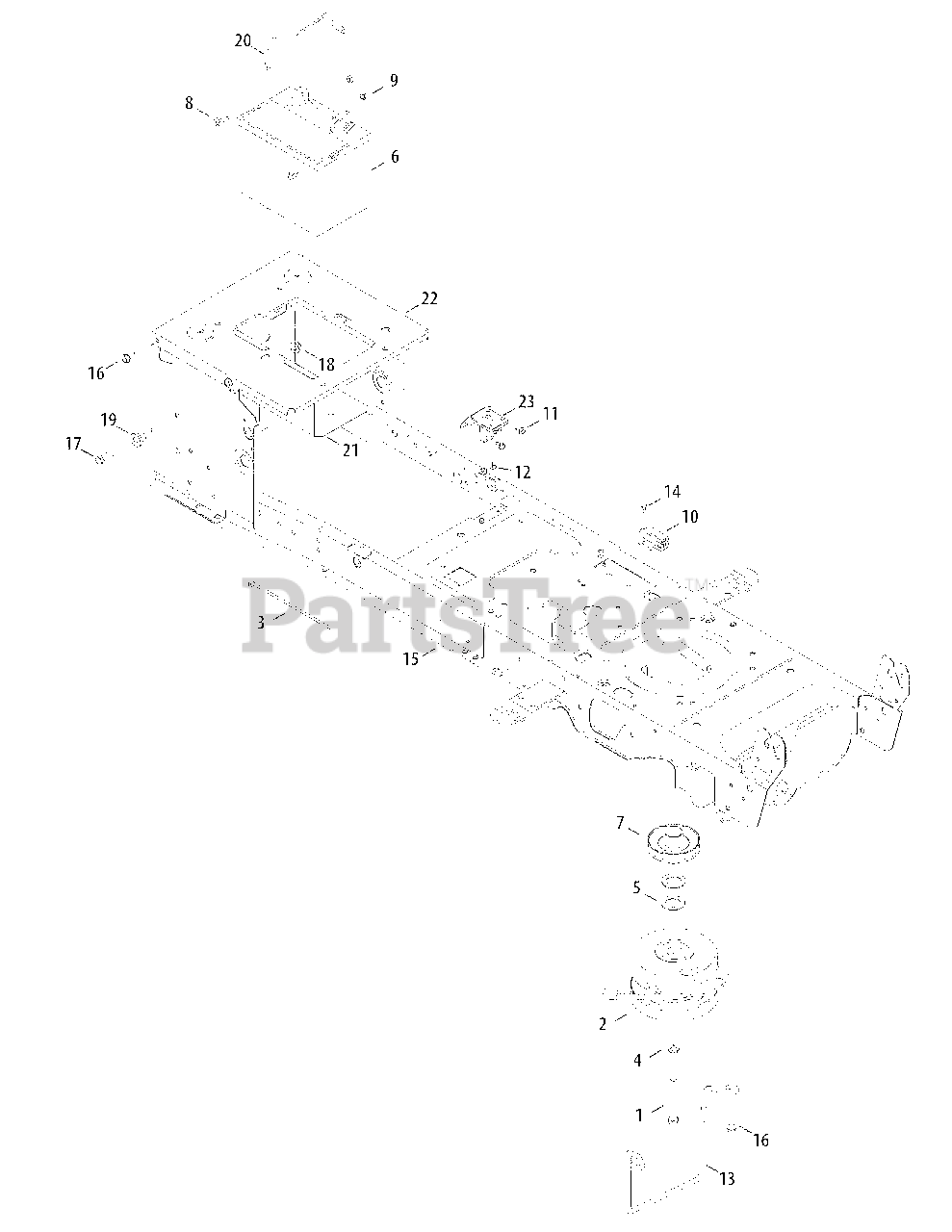

Frame, Electrical & PTO Parts Diagram

  • Title

1

Cub Cadet 710-04379A

Hex Screw, 7/16-20, 3.50, Gr5, Lock

$5.99

$

In Stock, Qty 20+

0

2

Cub Cadet 917-04552

Clutch, Electric PTO

$494.99

$

In Stock, only 4 left!

0

3

Cub Cadet 725-0157

Cable, Tie, 3/16 X .05 X 7.4

$3.49

$

In Stock, only 4 left!

0

4

Cub Cadet 736-0171

Washer, Lock, 7/16 , Regular Duty

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0277

Washer, Flat, 1.031 X1.620 X.095

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 925-1707D

Battery

$

$

Not available

7

Cub Cadet 756-0978B

Engine Pulley, Electric PTO

$61.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04666

Hex Flange Screw, 1/4-20, .75, Gr5

$6.49

$

In Stock, Qty 9

0

9

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 725-04363

Switch, Interlock

$14.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0653

Screw, Self-tapping, 1/4-20, 0.375

$4.49

$

In Stock, Qty 16

0

12

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 747-05171

Rod, Keeper
(Superseded to 747-05171A)

$30.99

$

In Stock, Qty 17

0

14

Cub Cadet 738-04237A

Screw, Shoulder, #10-32, .50

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet 683-04469A-0637

Frame Assembly, Lower
(Superseded to 683-04469D-0637)

$495.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3005

Hex Screw, 3/8-16, 1.25, Gr5, Std

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 738-04058

Spacer, Shoulder, .38 X 1.0 X .70

$4.49

$

In Stock, Qty 7

0

20

Cub Cadet 747-04121A

Rod, Battery

$5.99

$

In Stock, Qty 20+

0

21

Cub Cadet 783-0349-0637

Tray, Battery

$

$

Not available

22

Cub Cadet 783-06089-0637

Bracket, Frame, Seat

$57.99

$

In Stock, only 1 left!

0

23

Cub Cadet 725-04439

Solenoid, 12V, 100 Amp, 4 term
(Superseded to 725-04439B)

$37.99

$

In Stock, Qty 20+

0

Cub Cadet 925-04093

Harness Assembly, Main

Note: Not Shown

$210.99

$

Usually ships in 3-6 days

0
