LTX 1046 (13WP91AT010) - Cub Cadet 46" Lawn Tractor (2010) Kohler SV715 Fuel System Parts Diagram

46" Lawn Tractor

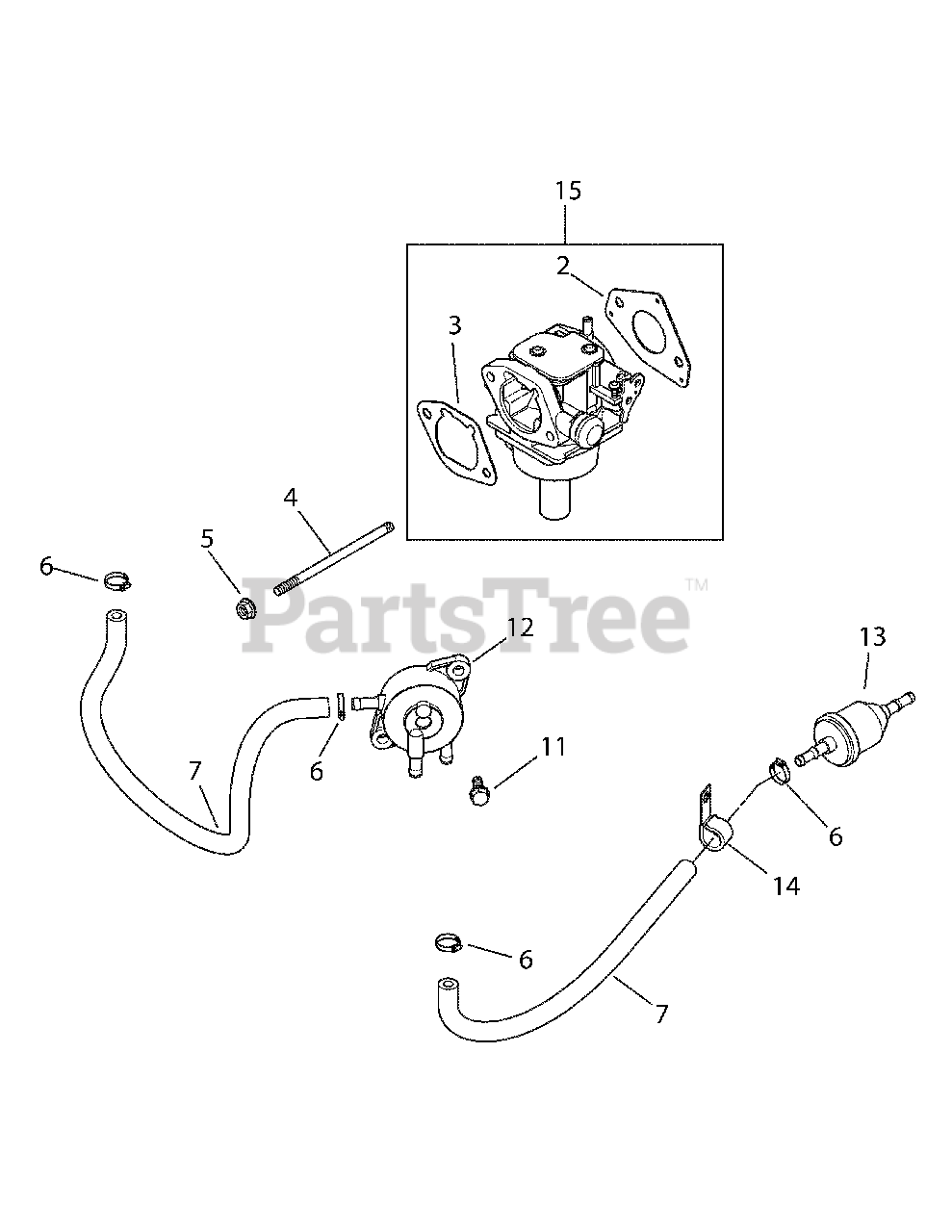

Kohler SV715 Fuel System Parts Diagram

  • Title

2

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

4

Cub Cadet KH-M-629105-S

Stud, M6 X 1.0 X 106
(Superseded to KH-25-072-25-S)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-641060-S

Flg. Nut, M6 X 1.0

$4.49

$

In Stock, Qty 17

0

6

Cub Cadet KH-25-237-14-S

Hose Clamp, 1/2
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet KH-25-111-34-S

Fuel Line
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 9

0

11

Cub Cadet KH-24-086-12

Tap Screw, M6 X 1.7 X 18

$

$

Not available

12

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

13

Cub Cadet KH-25-050-22-S1

Fuel Filter

$9.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-47-154-01-S

Cable Clip

$4.99

$

In Stock, Qty 7

0

15

Cub Cadet KH-32-853-11-S

Carburetor Assembly, 19mm KEIHIN (Inc.2 & 3)

$351.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-36-S

Choke Repair Service Kit (Inc. 2 & 3)

Note: Not Shown

$116.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-38-S

Gasket Repair Service Kit (Inc. 2 & 3)

Note: Not Shown

$32.99

$

In Stock, Qty 13

0

Cub Cadet KH-24-757-44-S

Float Kit (Inc. 2 & 3)

Note: Not Shown

$93.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-45-S

Solenoid Valve Repair Kit (Inc. 2 & 3)

Note: Not Shown

$246.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-46-S

Carb Repair Overhaul Kit (Inc. 2 & 3)

Note: Not Shown

$137.99

$

In Stock, only 1 left!

0
