LTX 1046 (13WP91AT010) - Cub Cadet 46" Lawn Tractor (2010) Kohler SV715 Fuel System, Air Intake & Filtration Parts Diagram

46" Lawn Tractor

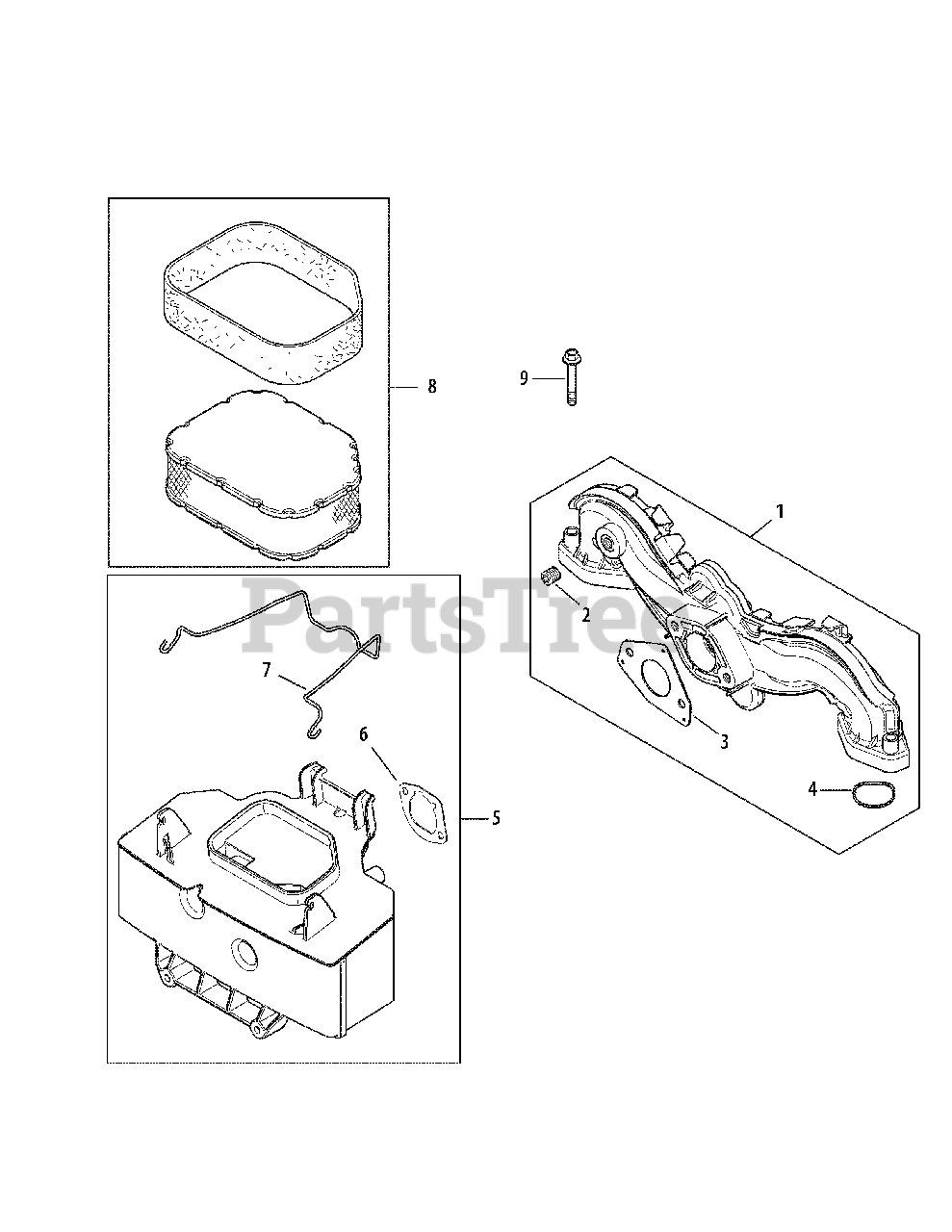

Kohler SV715 Fuel System, Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-24-164-91-S

Intake Manifold Kit (Inc. 2-4)
(Superseded to KH-24-164-278-S)

$203.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-153-27-S

Intake Port O-Ring

$3.49

$

In Stock, Qty 11

0

4

Cub Cadet KH-25-139-60-S

Pipe Plug, 1/8

$3.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-32-094-04-S

Air Cleaner Base Kit (Inc. 5 & 6)

$

$

Not available

6

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

7

Cub Cadet KH-32-344-02-S

Air Cleaner Element Latch

$

$

Not available

8

Cub Cadet KH-32-883-03-S1

Air Filter Element
(Superseded to 3288303S1C)

$27.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-M-651040-S

Flg. Screw, M6 X 1.0 X 40

$2.49

$

In Stock, Qty 13

0

10

Cub Cadet KH-32-883-03-S1

Pre-Cleaner Element
(Superseded to 3288303S1C)

$27.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-757-45-S

Solenoid Valve Repair Kit (Inc. 2 & 3)

Note: Not Shown

$246.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-46-S

Repair Overhaul Kit (Inc. 2 & 3)

Note: Not Shown

$137.99

$

In Stock, only 1 left!

0
