LTX 1046 (13YP91AT010) - Cub Cadet 46" Lawn Tractor (2011) Kohler SV720-3002 Crankcase Parts Diagram

46" Lawn Tractor

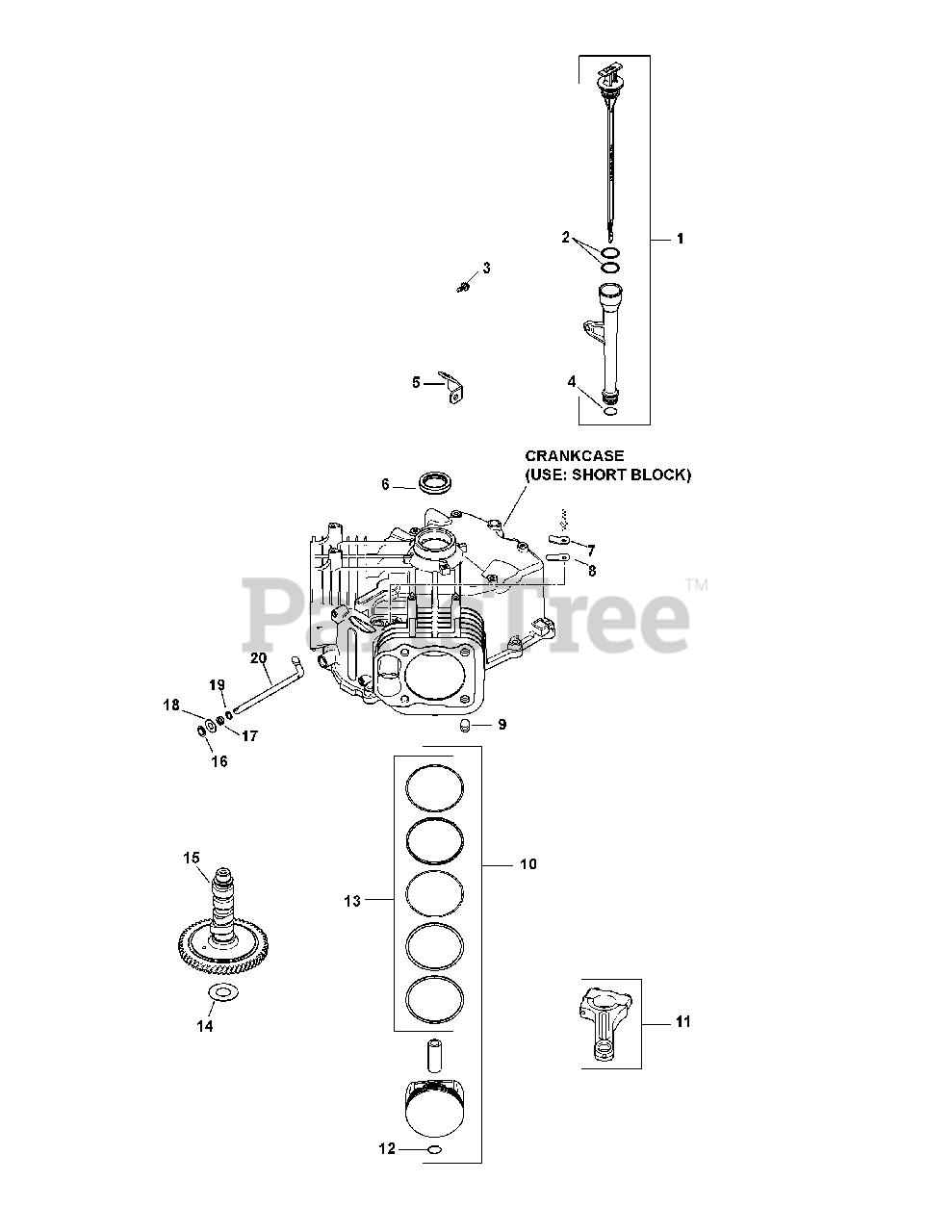

Kohler SV720-3002 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-32-755-04-S

Kit, Dipstick And Tube

$

$

Not available

2

Cub Cadet KH-25-153-09-S

O-Ring

$4.99

$

In Stock, Qty 17

0

3

Cub Cadet KH-M-545013-S

Screw, Flg Thd Frm M5X0.8X13

$2.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-12-153-01-S

O-Ring, Lower Oil Fill Tube

$6.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-24-126-19

Bracket, Oil Fill Tube
(Superseded to KH-24-126-243-S)

$11.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-032-19-S

Seal, Oil (Helix Lip)

$9.49

$

In Stock, Qty 20+

0

7

Cub Cadet KH-24-018-04-S

Retainer, Breather Reed

$2.49

$

In Stock, Qty 20+

0

8

Cub Cadet KH-12-402-02

Reed, Breather

$

$

Not available

9

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-32-874-13-S

Kit, Piston W/Ring (Std)
(Superseded to KH-25-874-13-S)

$301.99

$

In Stock, Qty 6

0

11

Cub Cadet KH-24-067-28-S

Rod, Assembly Connecting (Std)
(Superseded to KH-25-067-04-S)

$83.99

$

In Stock, Qty 20+

0

12

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$3.49

$

In Stock, Qty 14

0

13

Cub Cadet KH-32-108-01-S

Ring Set, Piston (Std)
(Superseded to KH-25-108-01-S)

$94.99

$

In Stock, only 4 left!

0

14

Cub Cadet KH-12-422-07-S

Shim, Camshaft (White .028'')

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-12-422-08-S

Shim, Camshaft (Blue .03'')

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-12-422-09-S

Shim, Camshaft (Red .032'')

$2.49

$

In Stock, only 1 left!

0

14

Cub Cadet KH-12-422-10-S

Shim, Camshaft (Yellow .034'')

$2.49

$

In Stock, Qty 11

0

14

Cub Cadet KH-12-422-11-S

Shim, Camshaft (Green .036'')

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-12-422-12-S

Shim, Camshaft (Gray .038'')

$2.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-12-422-13-S

Shim, Camshaft (Black .04'')

$2.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-32-010-05-S

Camshaft Assembly

$110.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-018-09-S

Retainer, Ring

$2.49

$

In Stock, Qty 19

0

17

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$4.49

$

In Stock, Qty 8

0

18

Cub Cadet KH-M-931010-S

Washer, Flat 9 Mm

$2.49

$

In Stock, Qty 7

0

19

Cub Cadet KH-24-468-15-S

Washer, Flat 11/32''

$2.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$58.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-SV720-3002

Complete Engine SV720-0002

Note: Not shown

$1804.99

$

Usually ships in 3-6 days

0
