LTX 1046 (13YP91AT010) - Cub Cadet 46" Lawn Tractor (2011) Kohler SV720-3002 Fuel System Parts Diagram

46" Lawn Tractor

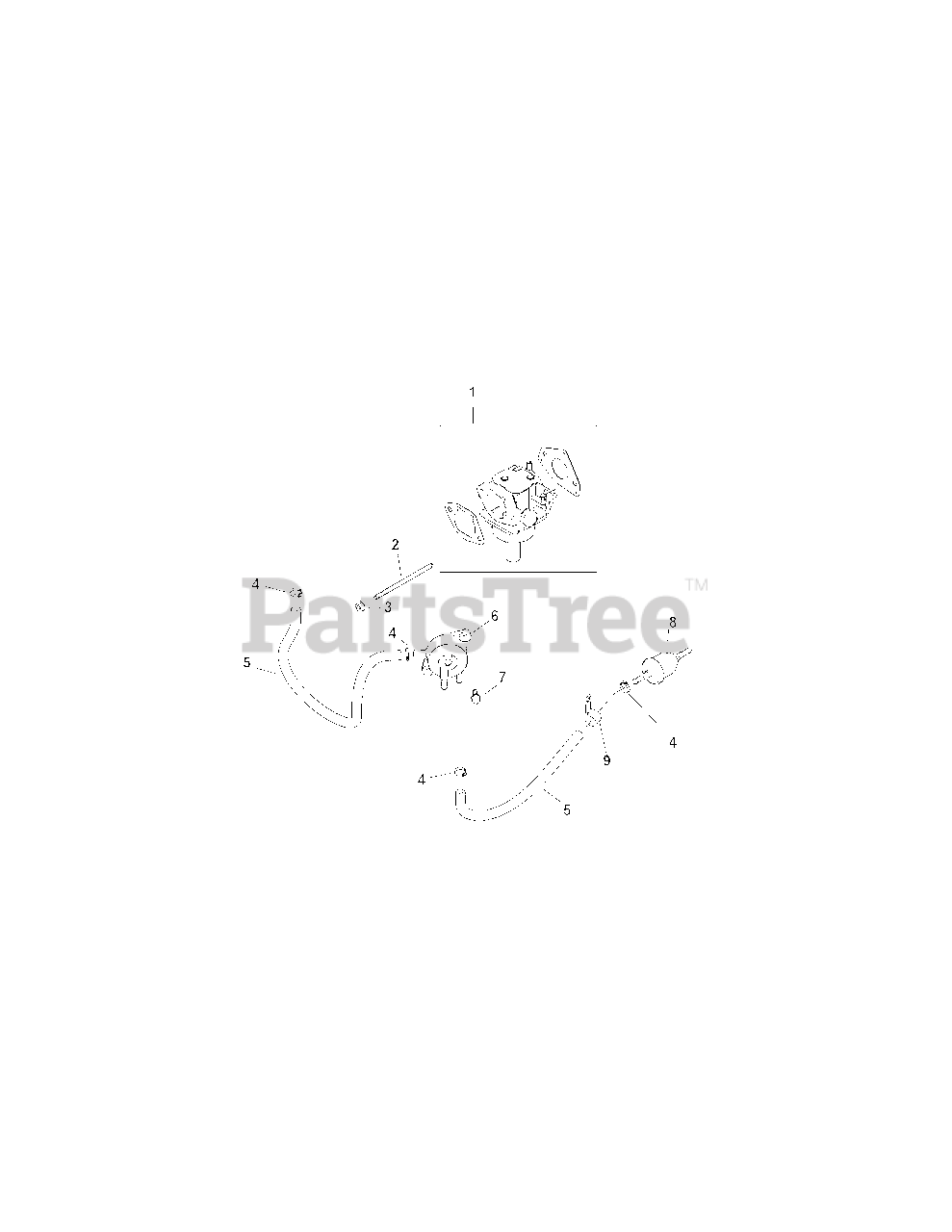

Kohler SV720-3002 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-32-853-22-S

Kit, Carburetor

$460.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-M-629105-S

Stud, M6X1.0X106
(Superseded to KH-25-072-25-S)

$18.99

$

In Stock, only 2 left!

0

3

Cub Cadet KH-M-641060-S

Nut, Flg M6X1.0

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-25-237-14-S

Clamp, Hose 1/2''
(Superseded to KH-25-237-31-S)

$5.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-25-111-34-S

Line, Fuel (24''-Cut To Length)
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 8

0

6

Cub Cadet KH-24-393-16

Pump, Fuel

$

$

Not available

7

Cub Cadet KH-24-086-12

Screw, Tap M6X1.7X18

$

$

Not available

8

Cub Cadet KH-25-050-22-S

Filter,Fuel 51 Micron (Fuel Pump)
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-47-154-01-S

Clip, Cable

$5.49

$

In Stock, only 2 left!

0
