LTX 1050 KW (13WI93AP010) - Cub Cadet 50" Lawn Tractor (2013) Kawasaki FR691V-S17 Piston & Crankshaft Parts Diagram

50" Lawn Tractor

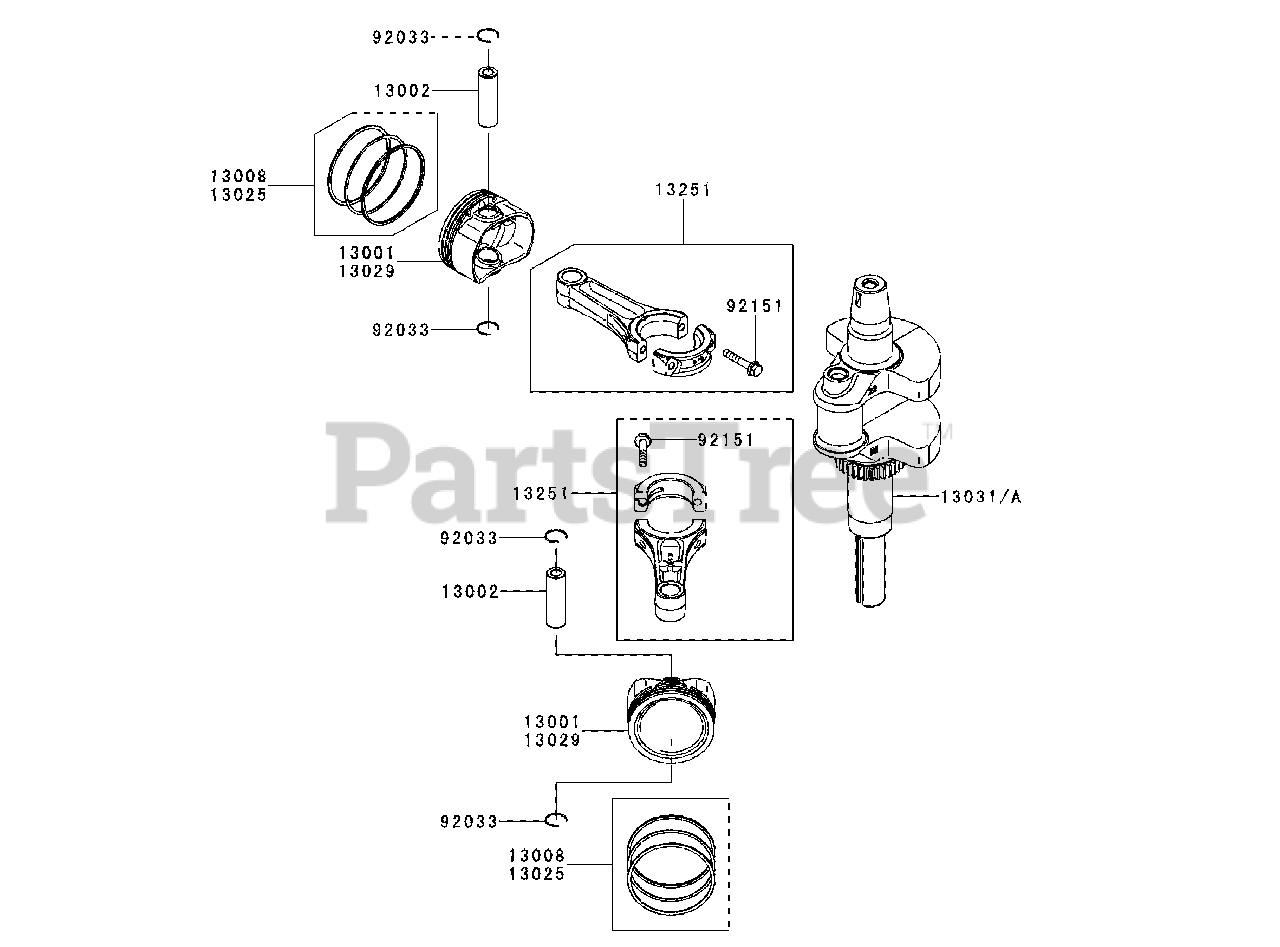

Kawasaki FR691V-S17 Piston & Crankshaft Parts Diagram

  • Title

13001

Cub Cadet KM-13001-7027

Engine Piston
(Superseded to KM-13001-6004)

$104.99

$

In Stock, Qty 20+

0

13002

Cub Cadet KM-13002-0704

Piston Pin

$15.99

$

In Stock, Qty 10

0

13008

Cub Cadet KM-13008-7005

Piston Ring Set
(Superseded to KM-13008-0569)

$36.99

$

In Stock, Qty 20+

0

13025

Cub Cadet KM-13025-7009

Piston Ring Set, L ,0.5

$32.99

$

In Stock, Qty 20+

0

13029

Cub Cadet KM-13029-7010

Engine Piston, L, 0.5

$73.99

$

In Stock, only 1 left!

0

13031

Cub Cadet KM-13031-0747

Complete Crankshaft
(Superseded to KM-13031-0822)

$286.99

$

In Stock, Qty 6

0

13031A

Cub Cadet KM-13031-7084

Complete Crankshaft
(Superseded to KM-13031-0822)

$286.99

$

In Stock, Qty 6

0

13251

Cub Cadet KM-13251-7025

Connecting Rod Assembly
(Superseded to KM-13251-0719)

$55.99

$

In Stock, Qty 20+

0

92033

Cub Cadet KM-92033-7018

Snap Ring
(Superseded to KM-92033-0790)

$0.99

$

In Stock, Qty 20+

0

92151

Cub Cadet KM-92151-7017

Bolt, 6 X 35
(Superseded to KM-92154-2842)

$1.49

$

In Stock, Qty 20+

0
