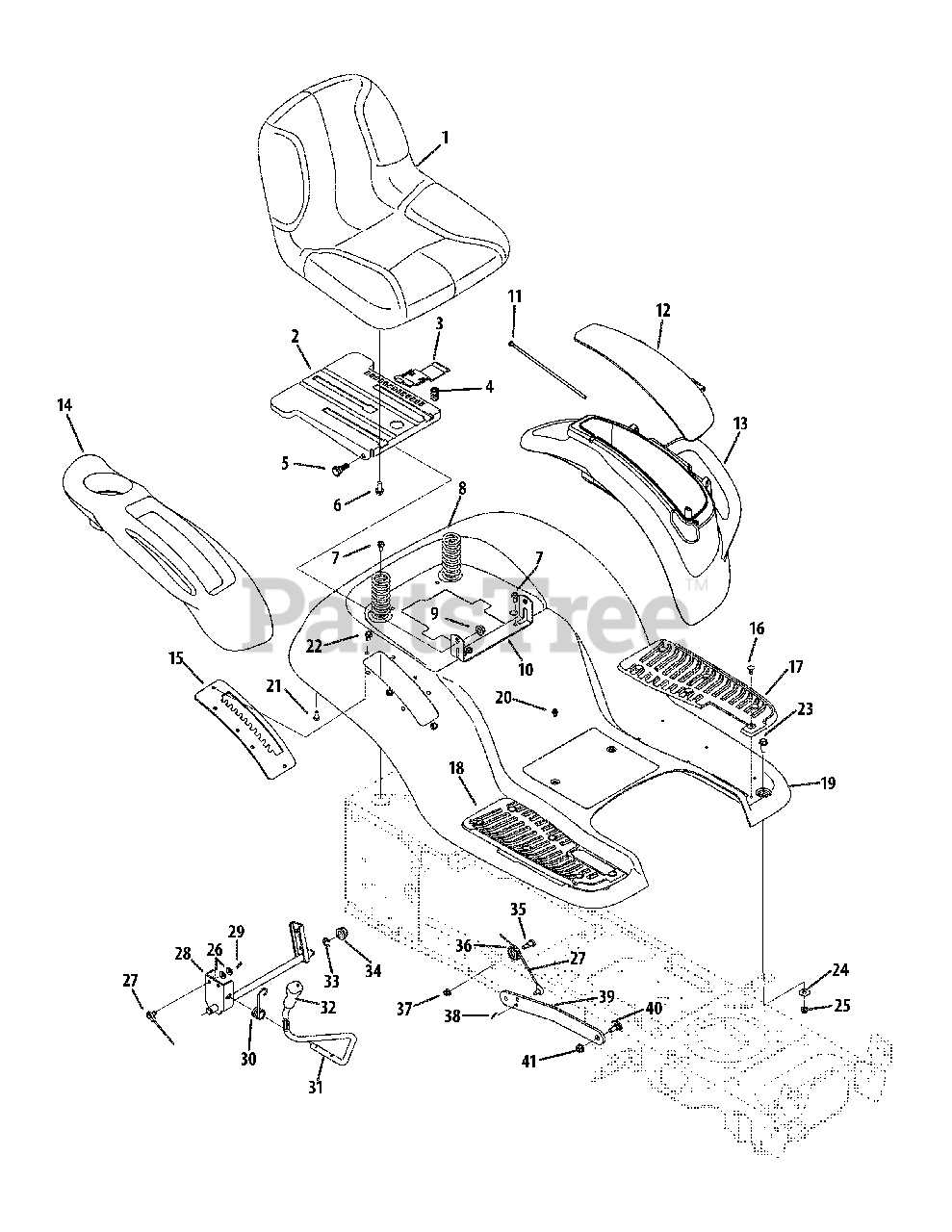

LTX 1050 VT (13VR91AP009) - Cub Cadet 50" Lawn Tractor (2009) Seat, Fender & Deck Lift Parts Diagram

50" Lawn Tractor

Seat, Fender & Deck Lift Parts Diagram

  • Title

1

Cub Cadet 757-04091

High-Back Chair
(Superseded to 757-05237)

$263.99

$

In Stock, only 1 left!

0

1

Cub Cadet 925-04040

Switch, Seat

Note: Not Shown

$33.99

$

In Stock, Qty 7

0

1

Cub Cadet 783-06448

Clip, Retaining

Note: Not Shown

$5.99

$

In Stock, only 3 left!

0

2

Cub Cadet 783-06049-4021

Seat Mounting Bracket
(Superseded to 783-06049-0637)

$63.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 783-06050

Seat Adjustment Lever

$9.49

$

In Stock, only 3 left!

0

4

Cub Cadet 732-04563

Compression Spring, .68 x 1.065 x .055

$5.49

$

In Stock, Qty 7

0

5

Cub Cadet 938-0296

Shoulder Screw, 5.16-18 x .437 x .268
(Superseded to 738-0296)

$3.99

$

In Stock, Qty 8

0

6

Cub Cadet 710-04482

Hex Flange Bolt, 3.8-16 x .875

Note: Note: Stop bolt, one used on right side of base

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet 732-04561

Compression Spring, 1.71 x 3.735 x .238

$15.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-3004A

Flange Lock Nut, 5.16-18

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 783-06088-4021

Seat Pivot Bracket
(Superseded to 783-06088A-0637)

$20.99

$

In Stock, Qty 20+

0

11

Cub Cadet 747-05039

Door Pin LH Pod

$7.99

$

In Stock, only 2 left!

0

12

Cub Cadet 731-06584

Fender Cover Door

$34.99

$

In Stock, only 3 left!

0

13

Cub Cadet 731-06676

Fender Cover, LH

$

$

Not available

14

Cub Cadet 731-06700

Fender Cover, RH

$53.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 783-06181-0637

Lift Adjustment Bracket

$

$

Not available

16

Cub Cadet 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 735-04137

Foot Pad, LH

$17.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 735-04139

Foot Pad, RH

$

$

Not available

19

Cub Cadet 783-06118-4021

Fender

$421.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-0599

Hex Washer Screw, 1.4-20 x .500

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0895

Hex Washer Screw, 1.4-15 x .750

$5.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-04484

Hex Washer Screw, 5.16-18 x .750

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-1260A

Hex Washer Screw, 5.16-18 x .750

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-3078

Flat Washer, .344 x 1.0 x .063

$3.99

$

In Stock, Qty 15

0

25

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0105

Washer, .401 x .870 x .063

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 746-0968

Lift Cable

$18.99

$

In Stock, Qty 20+

0

28

Cub Cadet 683-04223-0637

Lift Shift Assembly

$47.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 914-0104

Cotter Pin, .072 x 1.13
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 732-0874

Torsion Spring

$4.49

$

In Stock, Qty 9

0

31

Cub Cadet 747-04962A

Lift Handle

$35.99

$

In Stock, only 1 left!

0

32

Cub Cadet 720-0311

Handle Grip

$14.99

$

In Stock, Qty 5

0

33

Cub Cadet 716-0106A

E-Type Ring

$4.99

$

In Stock, Qty 15

0

34

Cub Cadet 941-0225

Hex Flange Bearing

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 738-0138A

Shoulder Screw, 5.16-18 x .437 x .470

$6.49

$

In Stock, Qty 20+

0

36

Cub Cadet 756-04331

Cable Roller Pulley

$6.49

$

In Stock, Qty 20+

0

37

Cub Cadet 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

39

Cub Cadet 783-05546-0637

Lift Arm
(Superseded to 783-05546A-0637)

$19.99

$

In Stock, Qty 5

0

40

Cub Cadet 938-0380

Shoulder Bolt, 3.8-16 x .500 x .270
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 13

0

41

Cub Cadet 712-04065

Flange Lock Nut, 3.8-16

$3.99

$

In Stock, Qty 20+

0
