LXS25KD725 - Exmark 72" Lazer Z XS Diesel Zero-Turn Mower, 25HP Kubota (SN: 670000 - 719999) (2007)

72" Lazer Z XS Diesel Zero-Turn Mower, 25HP Kubota

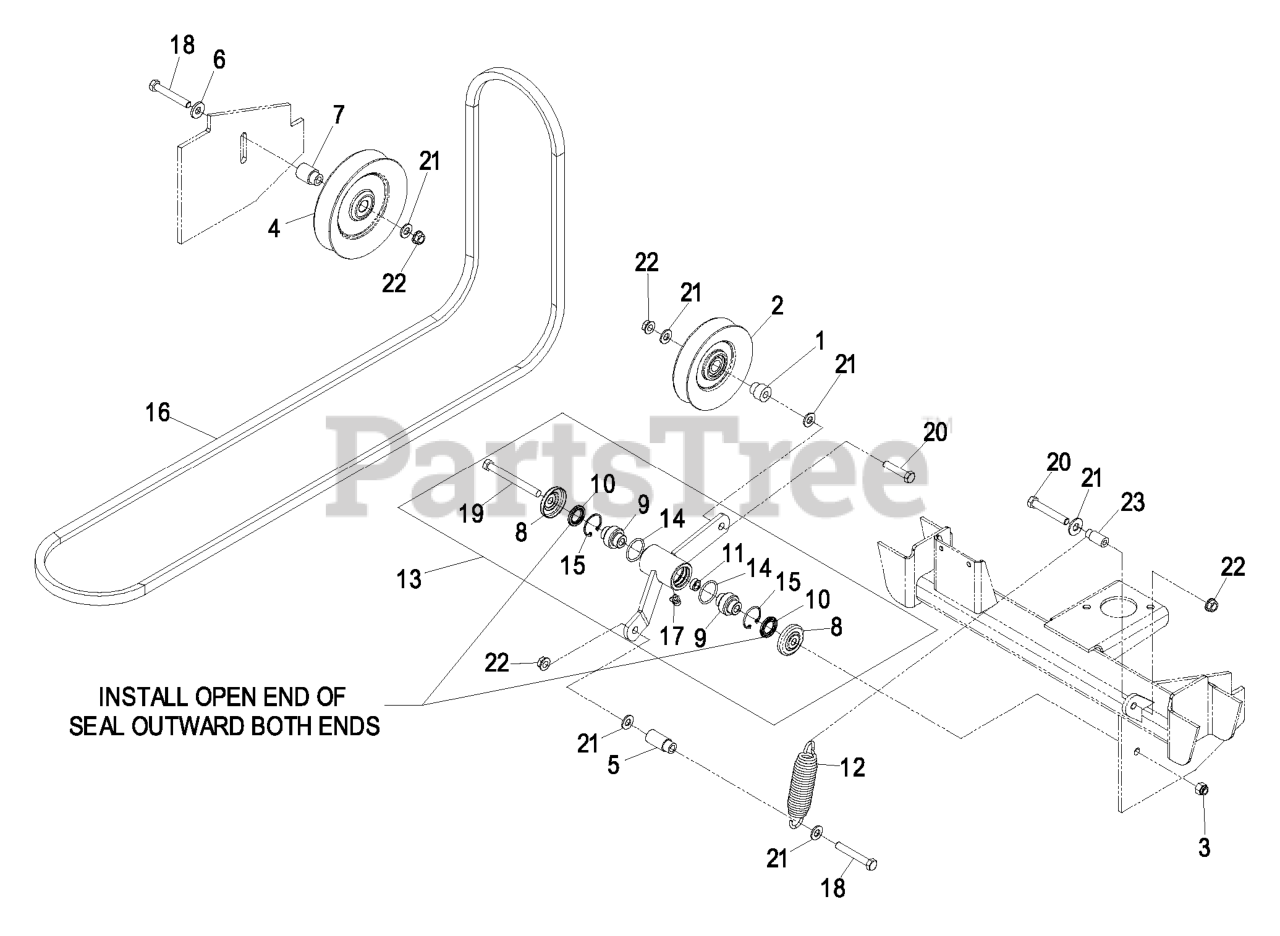

LXS25KD725 - Exmark 72" Lazer Z XS Diesel Zero-Turn Mower, 25HP Kubota (SN: 670000 - 719999) (2007) > Parts Diagrams (17) > Engine Deck Group

  • Title
1-603496

1

Bushing, Idler

Part# 1-603496

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.61

1-603805

2

Pulley, Idler

Part# 1-603805

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $41.59

3296-39

3

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

1-633166

4

Pulley, Idler

Part# 1-633166

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.82

1-653366

5

Spacer

Part# 1-653366

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.95

98-5975

6

Washer, Spring Disk 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

103-2627

7

Bushing, Idler

Part# 103-2627

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

103-2916

8

Guard, Top

Part# 103-2916

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.73

103-3504

9

Bearing, Spherical

Part# 103-3504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.69

103-3506

10

Seal, Single Lip

Part# 103-3506

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.47

103-5677

11

Spacer

Part# 103-5677

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

103-8599

12

Spring

Part# 103-8599 (Superseded to 116-6316)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

103-9250

13

Kit, Idler Arm (109-3194-03) W/Brgs

Part# 103-9250 (Superseded to 116-5042)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $220.24

106-7159

14

O-Ring

Part# 106-7159

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.86

32120-10

15

Ring, Retaining

Part# 32120-10

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.25

109-4199

16

Belt, Mule Drive

Part# 109-4199

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $70.75

302-40

17

Zerk, 90° 1/4-28

Part# 302-40

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.59

323-12

18

Screw, Hh 3/8-16 X 2 1/2

Part# 323-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.11

323-42

19

Screw, Hh 3/8-16 X 3 3/4

Part# 323-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

323-9

20

Screw, Hh 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

3256-24

21

Washer, 3/8 SAE

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.55

3290-357

22

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

103-1503

23

Spacer

Part# 103-1503

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.31
