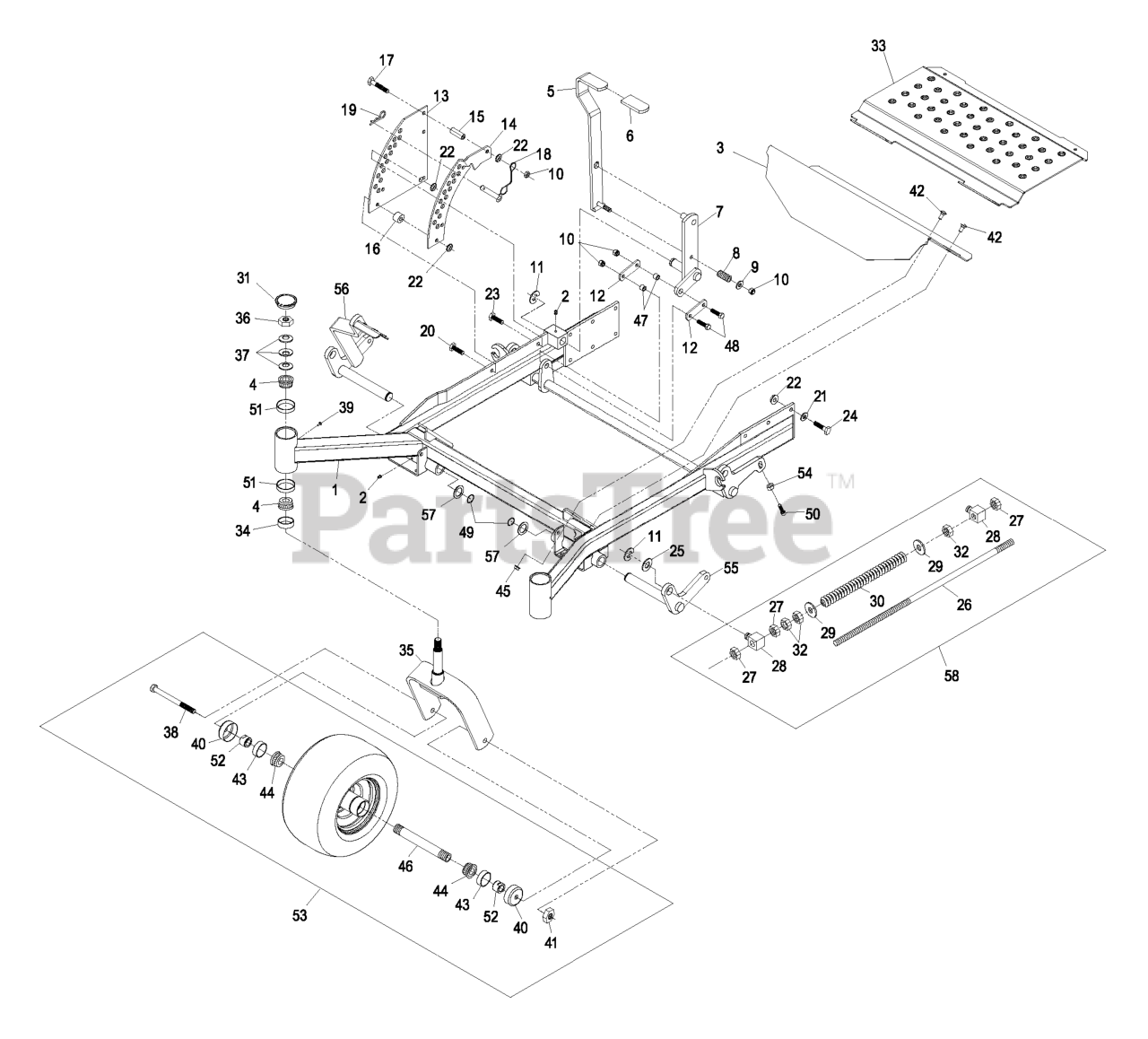

LXS25KD725 - Exmark 72" Lazer Z XS Diesel Zero-Turn Mower, 25HP Kubota (SN: 670000 - 719999) (2007) > Parts Diagrams (17) > Front Frame Group

  • Title
109-2072

1

Asm, Front Frame (60")

Part# 109-2072

Note: Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2579.81

109-2073

Asm, Front Frame (66")

Part# 109-2073

Note: Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.

OEM Warranty Repair Part for Exmark

Not available

109-2074

Asm, Front Frame (72")

Part# 109-2074 (Superseded to 116-9499)

Note: Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2565.65

302-19

2

Zerk, 1/4-28 Straight

Part# 302-19

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.93

109-1903

3

Asm, Floorpan (103-8274-01) W/Decals

Part# 109-1903

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $201.02

1-543509

4

Bearing Cone, Tapered Roller

Part# 1-543509

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.77

103-2084

5

Asm, Lever (103-2083-03)W/Grip

Part# 103-2084

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $55.05

1-633295

6

Grip, Lift Lever

Part# 1-633295

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.53

103-9529-03

7

Arm Wldmt, Deck Lift

Part# 103-9529-03 (Superseded to 109-4487)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $119.89

1-633325

8

Spring, Compression

Part# 1-633325

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.67

3256-24

9

Washer, 3/8 SAE Flat

Part# 3256-24

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.55

3296-39

10

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

32151-103

11

E-Ring

Part# 32151-103

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

1-633068

12

Arm, Deck Lift

Part# 1-633068

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.78

1-633889-01

13

Plate, Deck Lift

Part# 1-633889-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.94

1-632899-01

14

Wld, Deck Lift Plate

Part# 1-632899-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.48

1-633082

15

Bushing, Lift Lever

Part# 1-633082

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.95

109-3193

16

Stop, Deck Height

Part# 109-3193

OEM Warranty Repair Part for Exmark

Currently unavailable

323-13

17

Screw, 3/8-16 X 2 3/4

Part# 323-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.09

1-633097

18

Hitch Pin W/Lanyard

Part# 1-633097

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

1-806005

19

Hairpin Cotter

Part# 1-806005

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.51

323-9

20

Screw, 3/8-16 X 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

98-5975

21

Washer, 3/8 Disc Spring

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

3290-357

22

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

323-6

23

Screw, 3/8-16 X 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

323-7

24

Screw, 3/8-16x1 1/4

Part# 323-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

3256-29

25

Washer, 7/8 SAE Flat

Part# 3256-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.16

1-633096

26

Rod, Deck Lift

Part# 1-633096

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.89

3217-11

27

Nut, 5/8-11 Regular

Part# 3217-11

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.77

1-633441

28

Swivel, Deck Mount

Part# 1-633441

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.35

3256-7

29

Washer, 5/8 Std Flat

Part# 3256-7

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.28

109-4963

30

Spring, Deck Support

Part# 109-4963

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $39.14

103-4882

31

Cap, Grease

Part# 103-4882

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.22

3218-6

32

Jam Nut, 5/8-11

Part# 3218-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.26

109-1902

33

Asm, Floorpan, Liftout (103-8276-01) W/Decal

Part# 109-1902

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $140.44

1-543511

34

Seal, Grease

Part# 1-543511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

103-1474-01

35

Caster Wldmt

Part# 103-1474-01 (Superseded to 116-8888)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $132.14

3296-51

36

Nut, 3/4-10 Nyloc

Part# 3296-51

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.36

1-633508

37

Washer, Spring Disk

Part# 1-633508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.80

325-39

38

Screw, 1/2-13 X 9 1/2

Part# 325-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.22

1-811010

39

Plug

Part# 1-811010

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.43

103-2768

40

Guard, Seal

Part# 103-2768

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.30

3296-23

41

Nut, 1/2-13 Nyloc

Part# 3296-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.84

3230-1

42

Bolt, Carriage 5/16-18 X 3/4

Part# 3230-1

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

103-0063

43

Seal, Bearing

Part# 103-0063

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.35

1-633585

44

Bearing Cone

Part# 1-633585

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $15.89

32128-20

45

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

103-5156

46

Axle, Caster

Part# 103-5156 (Superseded to 126-5361)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.45

103-1918

47

Bushing

Part# 103-1918

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.96

323-29

48

Screw, 3/8-16 X 1 3/8

Part# 323-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

32151-29

49

Ring, Retaining

Part# 32151-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.90

3274-18

50

Screw, Socket Hd 5/16-18 X 1 1/4

Part# 3274-18

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.08

1-543508

51

Bearing Cup, Tapered Roller

Part# 1-543508

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.00

103-3051

52

Spacer, Nut

Part# 103-3051

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut, Item #52.

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.32

103-3799

53

Asm, Caster Wheel (Semi-Pneumatic)

Part# 103-3799 (Superseded to 109-9127)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $284.30

3218-2

54

Jam Nut, 5/16-18

Part# 3218-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.35

103-9741-01

55

Weldmt, Front Lift Shaft (Lh)

Part# 103-9741-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $97.92

103-9740-01

56

Weldmt, Front Lift W/Lever(Rh)

Part# 103-9740-01

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $161.07

1-523157

57

Washer, Spacer

Part# 1-523157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.06

109-4995

58

Asm, Front Frame Spring

Part# 109-4995

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $81.18

1-850337
