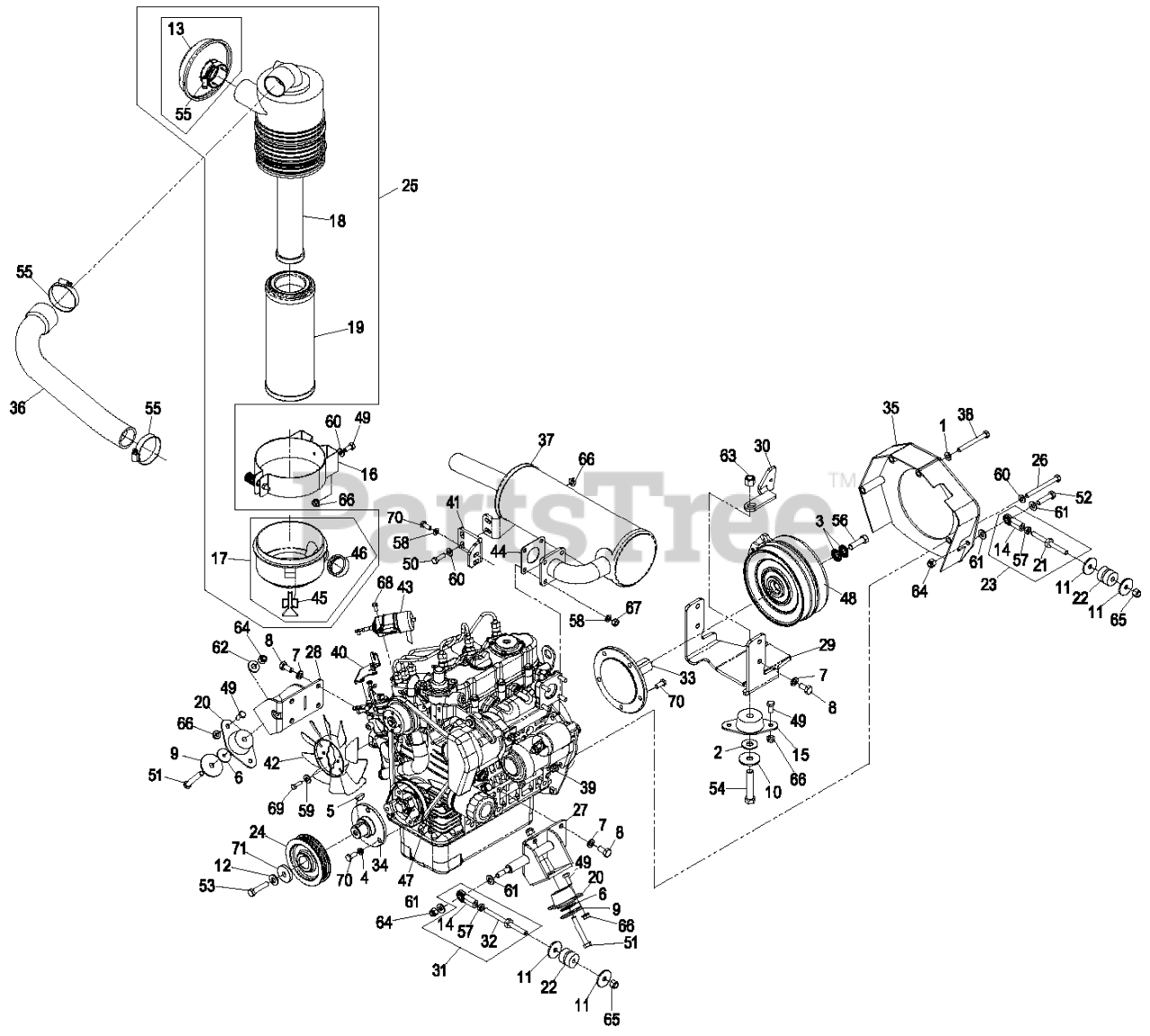

LXS25KD725 - Exmark 72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 720000 - 789999) (2008) Engine Group Parts Diagram

72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

Engine Group Parts Diagram

  • Title

1

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 8

0

2

Exmark 109-1245

WASHER,FLAT

$

$

Not available

3

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

4

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

5

Exmark 1-807014

KEY-WOODRUFF

$3.99

$

In Stock, only 1 left!

0

6

Exmark 66-6480

WASHER

$2.49

$

Usually ships in 3-6 days

0

7

Exmark 42-9600

Washer, Lock M10

$

$

Not available

8

Exmark 63-7790

SCREW-CAP

$3.99

$

Usually ships in 3-6 days

0

9

Exmark 83-1040

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

10

Exmark 86-1990

WASHER-THRUST

$4.49

$

In Stock, Qty 18

0

11

Exmark 93-6099

WASHER

$4.49

$

Usually ships in 3-6 days

0

12

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

13

Exmark 100-2436

HOOD-CLEANER, 2" AIR INTA

$76.99

$

Usually ships in 3-6 days

0

14

Exmark 103-0608

JOINT-BALL, END

$36.99

$

In Stock, only 1 left!

0

15

Exmark 103-1022

ISOLATOR-REAR

$109.99

$

Usually ships in 3-6 days

0

16

Exmark 103-1058

BRACKET-FILTER, AIR

$117.99

$

Usually ships in 3-6 days

0

17

Exmark 103-1060

COVER-FILTER, AIR

$249.99

$

Usually ships in 3-6 days

0

18

Exmark 103-1326

FILTER-AIR, SAFETY

$38.99

$

In Stock, only 2 left!

0

19

Exmark 103-1327

FILTER-AIR

$36.99

$

In Stock, only 2 left!

0

20

Exmark 103-2613

ISOLATOR-SIDE

$96.99

$

In Stock, only 1 left!

0

21

Exmark 103-3567

LINK,REAR A-T AXIAL

$28.99

$

Usually ships in 3-6 days

0

22

Exmark 103-3568

ISOLATOR-LINK

$59.99

$

Usually ships in 3-6 days

0

23

Exmark 103-3745

BALL JOINT LINK ASM

$115.99

$

Usually ships in 3-6 days

0

24

Exmark 103-4718

SHEAVE,5K 4"PD POLY-V

$163.99

$

Usually ships in 3-6 days

0

25

Exmark 103-5178

FILTER-AIR

$319.99

$

In Stock, only 1 left!

0

26

Exmark 33114-090

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

27

Exmark 103-7530-03

WLD,LH ENGINE MOUNT

$144.99

$

Usually ships in 3-6 days

0

28

Exmark 103-7531-03

WLD,RH ENGINE MOUNT

$110.99

$

Usually ships in 3-6 days

0

29

Exmark 103-7541-03

BRACKET,ENGINE MOUNT

$

$

Not available

30

Exmark 109-7678-03

ANCHOR,CLUTCH

$27.99

$

Usually ships in 3-6 days

0

31

Exmark 109-8528

ASM, A-T LINK

$52.99

$

Usually ships in 3-6 days

0

32

Exmark 103-7544

LINK,REAR A-T AXIAL

$

$

Not available

33

Exmark 109-9873

SHAFT,KUBOTA 902 STUB

$413.99

$

Usually ships in 3-6 days

0

34

Exmark 103-7556

HUB,PUMP DRIVE

$

$

Not available

35

Exmark 103-7567-03

WLD,FLYWHEEL COVER

$

$

Not available

36

Exmark 103-7597

HOSE,AIR INTAKE D902(8015

$

$

Not available

37

Exmark 109-2855

ASM,KUBOTA MUFFLER

Note: Includes item #44.

$

$

Not available

38

Exmark 33114-080

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

39

Exmark 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

40

Exmark 108-5922

BRACKET-SUPPORT, THROTTLE

$21.99

$

Usually ships in 3-6 days

0

41

Exmark 109-0787-03

116-5342-03
(Superseded to 116-5342-03)

$

$

Not available

42

Exmark 109-0789

FAN,COOLING 7"

$51.99

$

In Stock, only 3 left!

0

43

Exmark 109-1211

SOLENOID,FUEL

$845.99

$

Usually ships in 3-6 days

0

44

Exmark 109-2783

99-8343
(Superseded to 99-8343)

$17.99

$

In Stock, only 4 left!

0

45

Exmark 99-3174

CLIP-CLEANER, AIR

$19.99

$

In Stock, Qty 7

0

46

Exmark 109-2820

EJECTOR, NELSON AIR CLEAN

$69.99

$

In Stock, Qty 9

0

47

Exmark 109-2901

BELT,KUBOTA 902 ALT

$132.99

$

In Stock, only 2 left!

0

48

Exmark 109-7668

116-1627
(Superseded to 116-1627)

$772.99

$

Usually ships in 3-6 days

0

49

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

50

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

51

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

52

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

53

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

54

Exmark 325-11

SCREW-HH

$3.49

$

In Stock, Qty 6

0

55

Exmark 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

56

Exmark 3212-8

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on (5) screws, item #70 securing shaft, item #33 to engine.

$6.99

$

In Stock, only 3 left!

0

57

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

58

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

59

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 17

0

60

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

61

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

62

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

63

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

64

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

65

Exmark 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

66

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

67

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

68

Exmark 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

69

Exmark 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

70

Exmark 33114-020

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on (5) screws, item #70 securing shaft, item #33 to engine.

$0.99

$

In Stock, Qty 7

0

71

Exmark 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 10

0
