LXS35BV605 - Exmark 60" Lazer Z XS Zero-Turn Mower, 35HP Briggs & Stratton (SN: 850000 - 919999) (2010)

60" Lazer Z XS Zero-Turn Mower, 35HP Briggs & Stratton

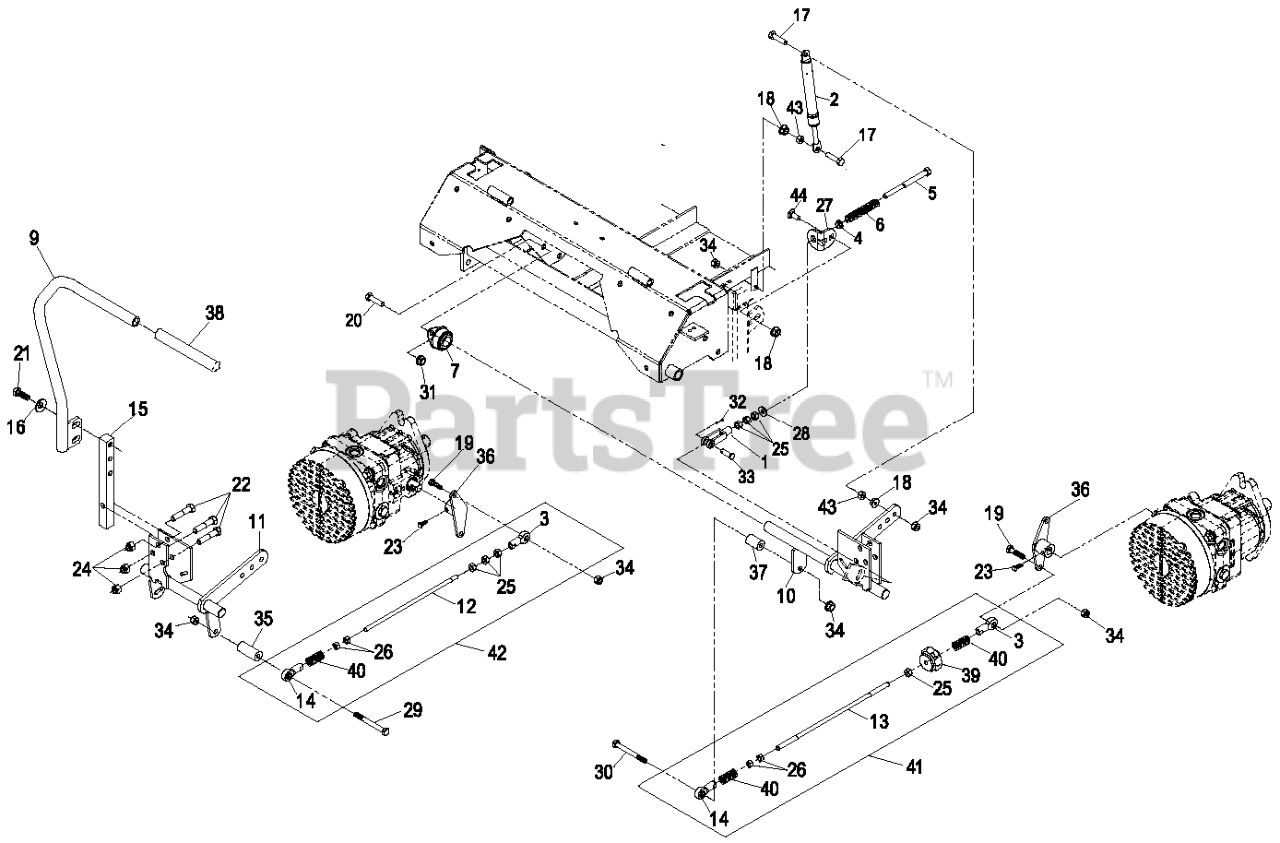

LXS35BV605 - Exmark 60" Lazer Z XS Zero-Turn Mower, 35HP Briggs & Stratton (SN: 850000 - 919999) (2010) > Parts Diagrams (15) > Motion Control Group

  • Title
1-303105

1

Yoke

Part# 1-303105

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.63

109-2339

2

Damper

Part# 109-2339

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $59.94

1-543017

3

Balljoint (RH)

Part# 1-543017

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

109-3769

4

Bushing, Nylon

Part# 109-3769

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.17

1-603737

5

Bolt, Neutral Return

Part# 1-603737

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $7.02

1-603807

6

Spring

Part# 1-603807

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.42

1-633102

7

Bearing, Flanged

Part# 1-633102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.41

103-3457

8

Asm, Lever W/Grip (LH)

Part# 103-3457

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.42

103-3458

9

Asm, Lever W/Grip (RH)

Part# 103-3458

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $64.42

109-3983

10

Wld, Motion Control Bracket (LH)

Part# 109-3983 (Superseded to 109-3979)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $121.12

109-3980

11

Wld, Motion Control Bracket (RH)

Part# 109-3980

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $112.56

103-5182

12

Link, Hydro Connecting (RH)

Part# 103-5182

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.92

103-3065

13

Link, Hydro Connecting (LH)

Part# 103-3065

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.44

1-633152

14

Balljoint (LH)

Part# 1-633152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

103-0407

15

Arm, Control Shaft

Part# 103-0407

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $22.63

98-5975

16

Washer, Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

1-403180

17

Screw, HH 5/16-18 x 1 1/4 Sp

Part# 1-403180

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.41

32128-20

18

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

322-6

19

Screw, HH 5/16-18 x 1 1/4

Part# 322-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.38

323-4

20

Screw, HH 3/8-16 x 3/4

Part# 323-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.23

323-6

21

Screw, HH 3/8-16 x 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

323-9

22

Screw, HH 3/8-16 x 1 3/4

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00

1-803022

23

Setscrew, 5/16-18 x 5/8

Part# 1-803022

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

3296-39

24

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

3219-2

25

Washer, 5/16 SAE

Part# 3219-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

1-804524

26

Nut, Hex 5/16-24 (LH)

Part# 1-804524

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.91

109-3908

27

Tab, Adjustment

Part# 109-3908

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.46

3256-2

28

Washer, 1/4 Std

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.48

322-14

29

Nut, Hex 5/8-11

Part# 322-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.18

322-12

30

Screw, HH 5/16-18 x 2 1/2

Part# 322-12

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.14

3290-357

31

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

3272-5

32

Pin, Cotter 3/32 x 1/2

Part# 3272-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.07

1-808280

33

Pin, Clevis 5/16 x 1

Part# 1-808280

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.90

3296-29

34

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

103-5192

35

Spacer, Hyd Control (RH)

Part# 103-5192

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.46

103-0194-03

36

Wld, Pump Control Arm

Part# 103-0194-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $48.94

103-1361

37

Spacer, Hyd Control (LH)

Part# 103-1361

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $5.95

103-3456

38

Grip, Motion Control Handle

Part# 103-3456

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $10.29

103-3060

39

Knob, Tracking

Part# 103-3060

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.89

1-323245

40

Spring, Compression

Part# 1-323245

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.90

103-3062

41

Asm, Tracking Rod Linkage (LH)

Part# 103-3062

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $64.83

103-5190

42

Asm, Tracking Rod Linkage (RH)

Part# 103-5190

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $59.94

3217-6

43

Nut, Hex 5/16-18

Part# 3217-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.12

3230-23

44

Bolt, Carriage 5/16-18 x 3/4, short neck

Part# 3230-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.85
