LXS35BV605 - Exmark 60" Lazer Z XS Zero-Turn Mower, 35HP Briggs & Stratton (SN: 850000 - 919999) (2010)

60" Lazer Z XS Zero-Turn Mower, 35HP Briggs & Stratton

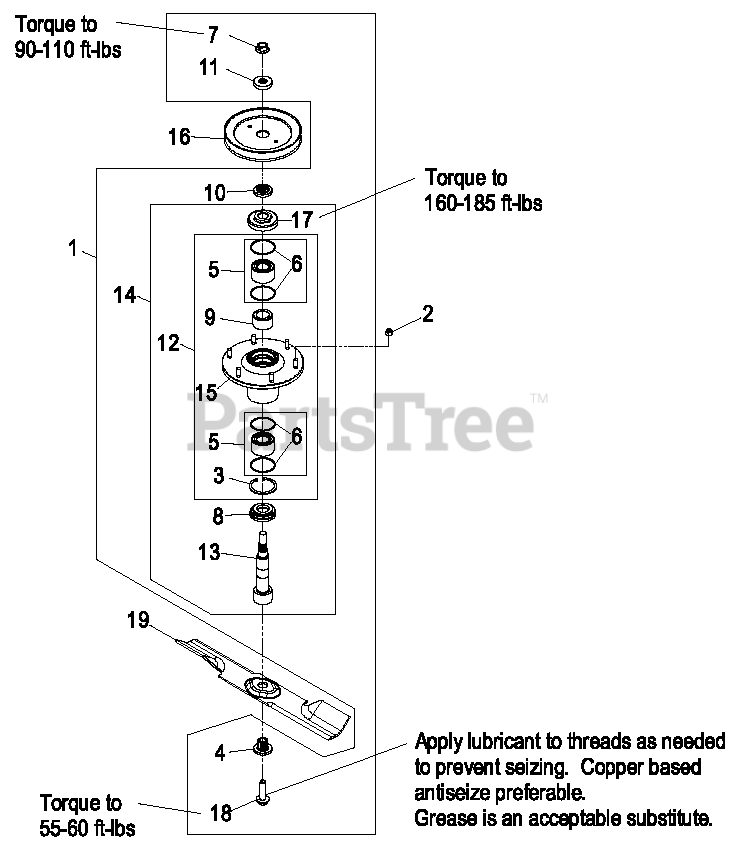

LXS35BV605 - Exmark 60" Lazer Z XS Zero-Turn Mower, 35HP Briggs & Stratton (SN: 850000 - 919999) (2010) > Parts Diagrams (15) > Spindle Assembly

  • Title
109-2102

1

Asm, Cutter Housing Complete

Part# 109-2102

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $567.73

3296-39

2

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

92-5581

3

Retaining Ring, Internal

Part# 92-5581

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.42

103-3037

4

Bushing, Splined

Part# 103-3037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $17.12

109-2064

5

Asm, Bearing W/O-Rings

Part# 109-2064

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $89.31

103-5895

6

O-Ring

Part# 103-5895

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.76

109-7033

7

Nut, Flange 5/8-18 Centerlock

Part# 109-7033

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.69

103-9504

8

Guard, Bottom

Part# 103-9504

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $9.00

103-9506

9

Spacer, Bearing.

Part# 103-9506

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $8.55

103-9522

10

Spacer, Splined Stepped

Part# 103-9522

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.89

103-9523

11

Spacer, Splined.

Part# 103-9523

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

103-9539

12

Asm, Cutter Housing

Part# 103-9539

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $275.55

109-6881

13

Spindle, Double Spline

Part# 109-6881

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $95.42

109-6917

14

Asm, Spindle Housing

Part# 109-6917

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $384.19

109-0764

15

Asm, Housing W/Studs

Part# 109-0764

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $73.41

109-1023

16

Sheave, Blade Drive 60"

Part# 109-1023

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.80

109-0914

Sheave, Blade Drive 66"

Part# 109-0914

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $36.69

109-0929

Sheave, Blade Drive 72"

Part# 109-0929

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $37.92

109-1058

17

Nut, Spindle 7/8-14

Part# 109-1058 (Superseded to 109-0916)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $18.35

109-9220

18

Screw, SEMS 1/2-20 x 2.19

Part# 109-9220

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $6.10

103-8240

19

Blade, Low Lift 60"

Part# 103-8240 (Superseded to 103-8240-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.36

103-8396

Blade, Medium Lift 60"

Part# 103-8396 (Superseded to 116-5499-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.80

103-8239

Blade, High Lift Solid 60"

Part# 103-8239 (Superseded to 109-6469-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.58

109-6463

Blade, High Lift Notched 60"

Part# 109-6463

OEM Warranty Repair Part for Exmark

Currently unavailable

109-5396

Washer, 5/16 SAE

Part# 109-5396 (Superseded to 109-5396-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $34.24

103-9629

Blade, Extreme 60"

Part# 103-9629 (Superseded to 116-5499-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.80

103-9616

Blade, Low Lift 66"

Part# 103-9616 (Superseded to 103-9616-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.47

103-9619

Blade, Medium Lift 66"

Part# 103-9619 (Superseded to 116-5500-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.36

103-9617

Nut, Hex 5/8-11

Part# 103-9617 (Superseded to 109-6470-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.03

109-6464

Blade, High Lift Notched 66"

Part# 109-6464

OEM Warranty Repair Part for Exmark

Currently unavailable

109-5878

Blade, Mulch 66"

Part# 109-5878 (Superseded to 109-5878-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.47

103-9630

Blade, Extreme 66"

Part# 103-9630 (Superseded to 116-5500-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.36

103-9622

Blade, Low Lift 72"

Part# 103-9622 (Superseded to 103-9622-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $37.92

103-9625

Blade, Medium Lift 72"

Part# 103-9625 (Superseded to 116-5501-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.82

103-9623

Blade, High Lift Solid 72"

Part# 103-9623 (Superseded to 109-6471-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.47

109-6465

Blade, High Lift Notched 72"

Part# 109-6465 (Superseded to 109-6465-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $35.47

109-5879

Blade, Mulch 72"

Part# 109-5879 (Superseded to 109-5879-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $37.92

103-9631

Blade, Extreme 72"

Part# 103-9631 (Superseded to 116-5501-S)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $42.82
