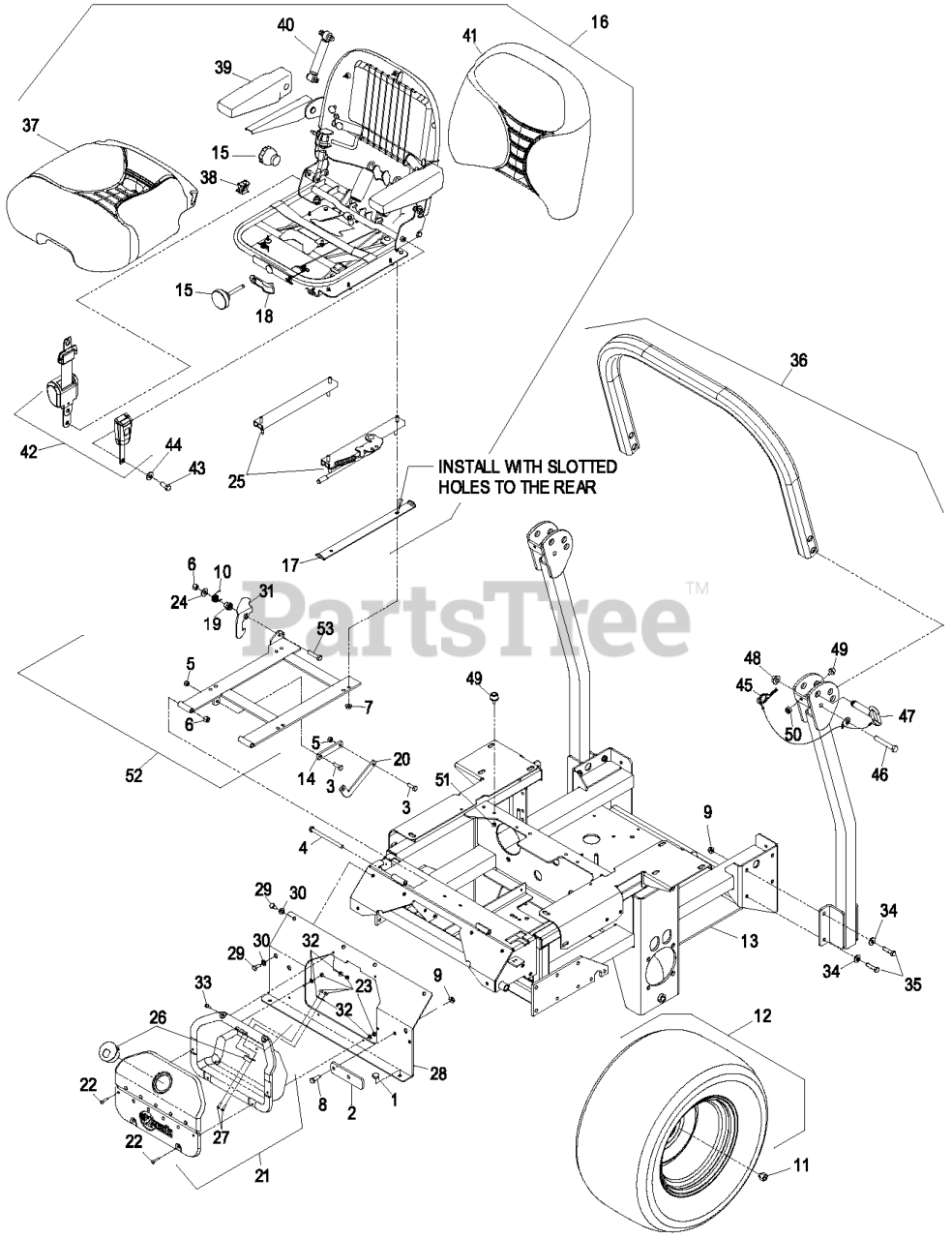

LXS35BV665 - Exmark 66" Lazer Z XS Zero-Turn Mower, 35HP Briggs & Stratton (SN: 790000 - 849999) (2009) > Parts Diagrams (15) > Main Frame Group

  • Title
1-513658

1

Bumper

Part# 1-513658

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.17

1-633964-03

2

Stop, Park Brake

Part# 1-633964-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.55

322-5

3

Screw, HH 5/16-18 x 1

Part# 322-5

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

323-39

4

Screw, HH 3/8-16 x 5

Part# 323-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.28

3296-29

5

Nut, Nyloc 5/16-18

Part# 3296-29

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.98

3296-39

6

Nut, Nyloc 3/8-16

Part# 3296-39

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.24

32128-20

7

Nut, Whizlock 5/16-18

Part# 32128-20

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

323-6

8

Screw, HH 3/8-16 x 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

3290-357

9

Nut, Whizlock 3/8-16

Part# 3290-357

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.79

103-5519

10

Spring

Part# 103-5519

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.86

242-50

11

Nut, Lug 1/2-20

Part# 242-50

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.57

109-3157

12

Asm, Wheel & Tire

Part# 109-3157

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $461.28

103-4963

Tire, 26x12-12 4 Ply

Part# 103-4963

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $292.44

109-3156

Wheel

Part# 109-3156

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $184.10

109-3972

13

Asm, Engine Deck (109-3973-03) W/Decals

Part# 109-3972

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4097.82

103-5161

14

Link, XP Seat Stop

Part# 103-5161

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.89

107-1881

15

Kit, Knob

Part# 107-1881

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $165.57

116-1080

16

Seat, Suspension

Part# 116-1080 (Superseded to 116-5187)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1120.74

109-3343

Kit, Spring and Saddle

Part# 109-3343

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $122.32

109-3344

Kit, Back Panel

Part# 109-3344

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $128.50

109-3345

Kit, Weight Adjust

Part# 109-3345

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $122.32

1-633872-03

17

Stop, Seat

Part# 1-633872-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.47

107-1885

18

Kit, Weight Indicator

Part# 107-1885

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $43.24

107-0075

19

Bushing

Part# 107-0075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.31

109-1357

20

Link, XP Lower Seat Stop

Part# 109-1357 (Superseded to 109-2759)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.39

103-3666

21

Asm, Cubby

Part# 103-3666

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $119.82

32122-28

22

Screw, Truss HD #10-24 x 1

Part# 32122-28

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.20

3296-2

23

Nut, Nyloc #10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.36

3256-4

24

Washer, 3/8 Std

Part# 3256-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.31

107-1880

25

Kit, Seat Track

Part# 107-1880

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $265.66

103-3790

26

Latch, Cubby Door

Part# 103-3790

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $33.48

3290-500

27

Screw, PPH #10-24 x 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.89

109-2075

28

Asm, Console(103-8273-03) W/Decals

Part# 109-2075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $168.79

322-3

29

Screw, HH 5/16-18 x 3/4

Part# 322-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.74

3256-23

30

Washer, 5/16 SAE

Part# 3256-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.82

103-5520

31

Latch, Seat

Part# 103-5520

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $23.24

3256-14

32

Washer, #10 Std

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.23

1-803075

33

Screw, Truss Head #10-24 x 3/4

Part# 1-803075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.87

98-5975

34

Washer, Spring Disc 3/8

Part# 98-5975

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.43

323-6

35

Screw, HH 3/8-16 x 1

Part# 323-6

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.09

109-0060

36

Kit, XP Rops

Part# 109-0060

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $451.89

107-1883

37

Kit, Bottom Cushion

Part# 107-1883

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $327.44

82-2190

38

Kit, Switch

Part# 82-2190

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $13.45

107-1887

39

Kit, Armrest

Part# 107-1887

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $86.87

107-1884

40

Kit, Shock Absorber

Part# 107-1884

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $214.98

107-1882

41

Kit, Back Cushion

Part# 107-1882

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $331.15

110-0883

42

Kit, Seat Belt

Part# 110-0883

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $198.20

3212-4

43

Screw, HH 7/16-20 x 10

Part# 3212-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.85

1-603610

44

Washer, Spring Disc 7/16

Part# 1-603610

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.55

107-3155

45

Cotter, Hair Pin Double Loop

Part# 107-3155

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.89

325-13

46

Screw, HH 1/2-13 x 3 1/4

Part# 325-13

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.22

103-4553

47

Asm, Rops Fold Pin

Part# 103-4553

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $58.72

32128-23

48

Nut, Hex Flange Side Lock 1/2-13

Part# 32128-23

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.59

109-2365

49

Bumper

Part# 109-2365

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.29

3296-73

50

Nut, Nyloc 1/4-20 (black)

Part# 3296-73

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.90

3296-42

51

Nut, Nyloc 1/4-20

Part# 3296-42

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.38

109-1813

52

Asm, Seat Frame

Part# 109-1813

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $282.95

323-9

53

Screw, HH 3/8-16 x 2

Part# 323-9

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.00
