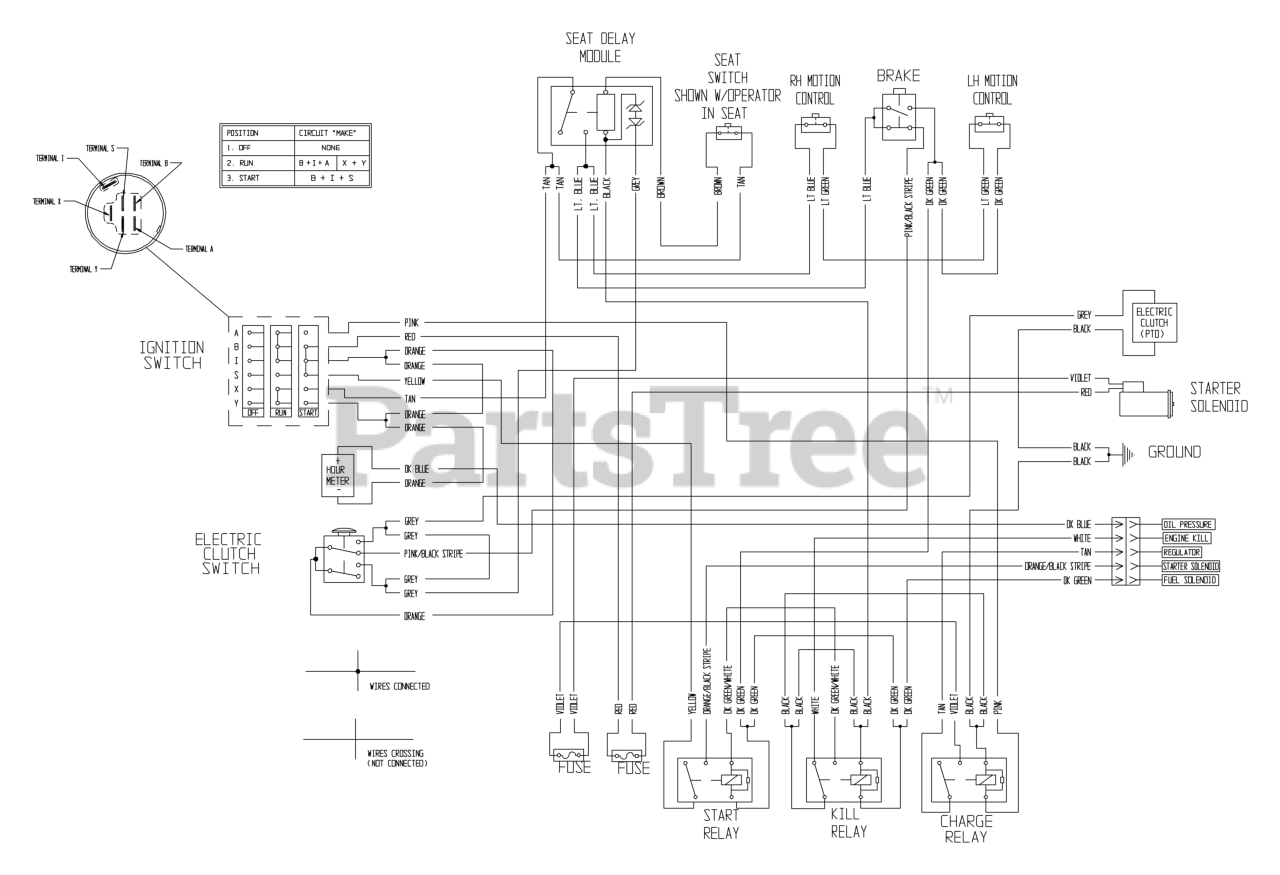

LXS35BV725 - Exmark 72" Lazer Z XS Zero-Turn Mower, 35hp Briggs & Stratton (SN: 670000 - 719999) (2007) Electrical Logic Schematic Parts Diagram

72" Lazer Z XS Zero-Turn Mower, 35hp Briggs & Stratton
