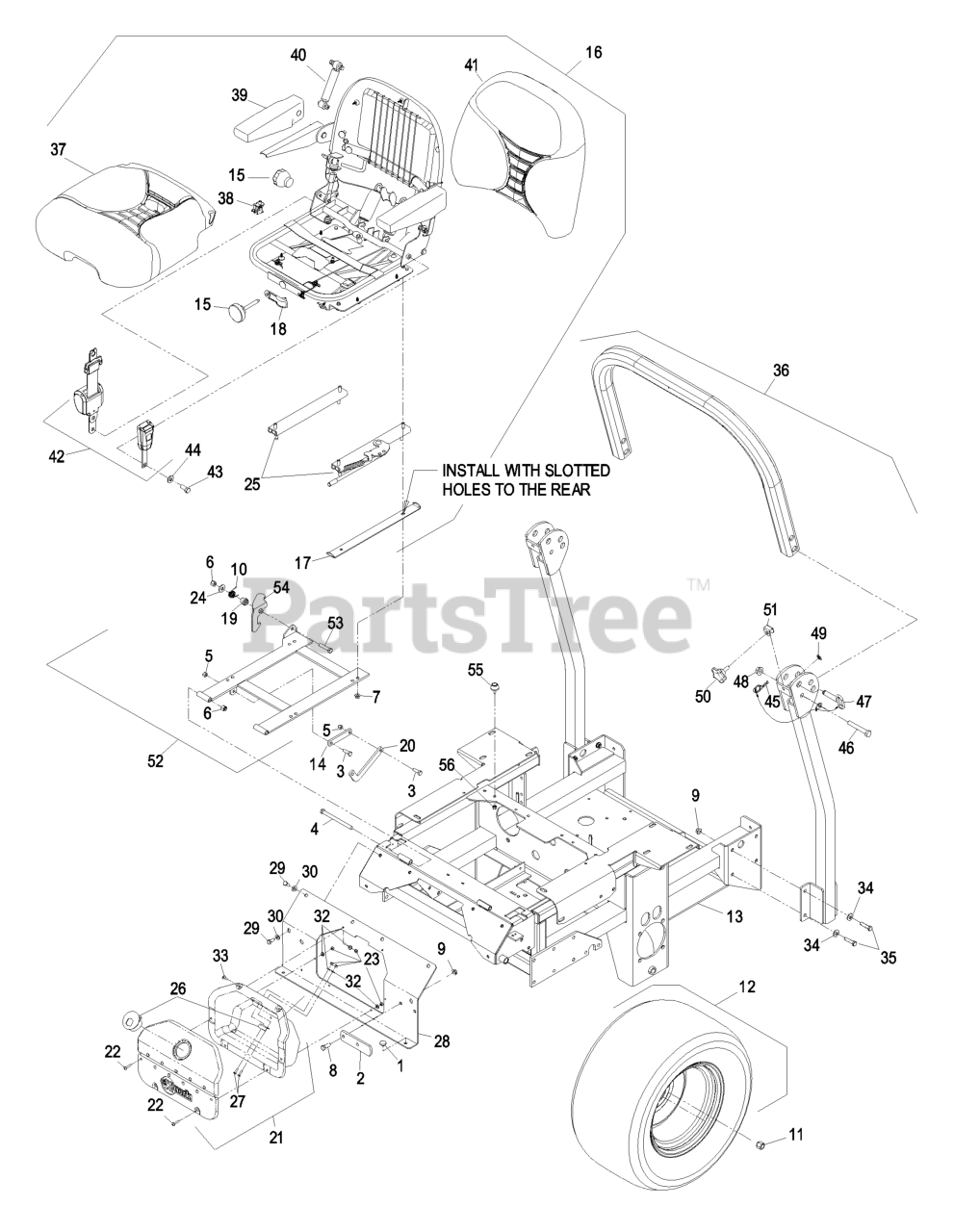

LXSKD725 - Exmark 72" Lazer Z XS Zero-Turn Mower (SN: 600000 - 669999) (2006) Main Frame Group Parts Diagram

72" Lazer Z XS Zero-Turn Mower

Main Frame Group Parts Diagram

  • Title

1

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 9

0

2

Exmark 1-633964-03

STOP-BRAKE, PARK

$13.99

$

Usually ships in 3-6 days

0

3

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Exmark 323-39

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

5

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-5519

SPRING-TORSION, LATCH

$8.99

$

Usually ships in 3-6 days

0

11

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-3157

WHEEL AND TIRE ASM

$627.99

$

Usually ships in 3-6 days

0

Exmark 103-4963

TIRE

$469.99

$

Usually ships in 3-6 days

0

Exmark 109-3156

RIM

$260.99

$

In Stock, Qty 5

0

13

Exmark 109-0061

109-3972
(Superseded to 109-3972)

$

$

Not available

14

Exmark 103-5161

LINK-STOP, SEAT

$

$

Not available

15

Exmark 107-1881

KNOB KIT

$232.99

$

Usually ships in 3-6 days

0

16

Exmark LSSEAT

126-2802
(Superseded to 126-2802)

Note: Includes seat assembly plus tracks item #25, seat stops item #17, and seat wiring harness (item #17 see "Electrical Group"). Does not include seat belt assembly item #42.

$1573.99

$

Usually ships in 3-6 days

0

Exmark 109-3343

SPRING AND SADDLE KIT

$188.99

$

Usually ships in 3-6 days

0

Exmark 109-3344

BACK PANEL KIT

$179.99

$

Usually ships in 3-6 days

0

Exmark 109-3345

WEIGHT ADJUST KIT

$188.99

$

Usually ships in 3-6 days

0

17

Exmark 1-633872-03

STOP-SEAT

$52.99

$

Usually ships in 3-6 days

0

18

Exmark 107-1885

WEIGHT INDICATOR KIT

$61.99

$

Usually ships in 3-6 days

0

19

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

In Stock, only 1 left!

0

20

Exmark 109-1357

109-2759
(Superseded to 109-2759)

$

$

Not available

21

Exmark 103-3666

ASM,CUBBY

$196.99

$

Usually ships in 3-6 days

0

22

Exmark 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

24

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Exmark 107-1880

SEAT TRACK KIT

$409.99

$

Usually ships in 3-6 days

0

26

Exmark 103-3790

LATCH,CUBBY

$47.99

$

In Stock, only 2 left!

0

27

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 109-2075

ASM, CONSOLE W/DECALS

$275.99

$

In Stock, only 1 left!

0

29

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

Briggs & Stratton P/N 492932 Oil Filter

Note: (not shown) Refer to Engine Owner's Manual.

$

$

Not available

32

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

35

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Exmark 109-0060

KIT, 06 XS ROPS

Note: Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item # 52, and seat belt assembly item #42.

$553.99

$

Usually ships in 3-6 days

0

37

Exmark 107-1883

BOTTOM CUSHION KIT

$506.99

$

Usually ships in 3-6 days

0

38

Exmark 107-1886

82-2190
(Superseded to 82-2190)

$15.99

$

In Stock, Qty 6

0

39

Exmark 107-1887

PAD-ARMREST

$120.99

$

In Stock, only 2 left!

0

40

Exmark 107-1884

SHOCK ABSORBER KIT

$333.99

$

Usually ships in 3-6 days

0

41

Exmark 107-1882

BACK CUSHION KIT

$511.99

$

Usually ships in 3-6 days

0

42

Exmark 110-0883

RETRACTABLE SEATBELT KIT

$290.99

$

Usually ships in 3-6 days

0

43

Exmark 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

44

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

45

Exmark 107-3155

HAIRPIN

$6.99

$

Usually ships in 3-6 days

0

46

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, Qty 17

0

47

Exmark 103-4553

PIN-FOLD, ROPS

Note: Includes ROPS fold pin plus hairpin, item #45.

$

$

Not available

48

Exmark 32128-23

NUT-HF

$2.49

$

In Stock, Qty 11

0

49

Exmark 107-3154

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

50

Exmark 106-0887

KNOB

$9.49

$

In Stock, only 2 left!

0

51

Exmark 107-3124

CLIP

$5.49

$

In Stock, only 2 left!

0

52

Exmark 109-1813

SEAT FRAME SINGLE LATCH A

$398.99

$

Usually ships in 3-6 days

0

53

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

54

Exmark 103-5520

CATCH-LATCH, SINGLE

$186.99

$

Usually ships in 3-6 days

0

55

Exmark 109-2365

BUMPER-RUBBER

$5.99

$

In Stock, Qty 13

0

56

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
