LXSLKA725 - Exmark 72" Lazer Z XS Zero-Turn Mower, Kawasaki (SN: 600000 - 669999) (2006) Engine Deck Group (Cont.) Parts Diagram

72" Lazer Z XS Zero-Turn Mower, Kawasaki

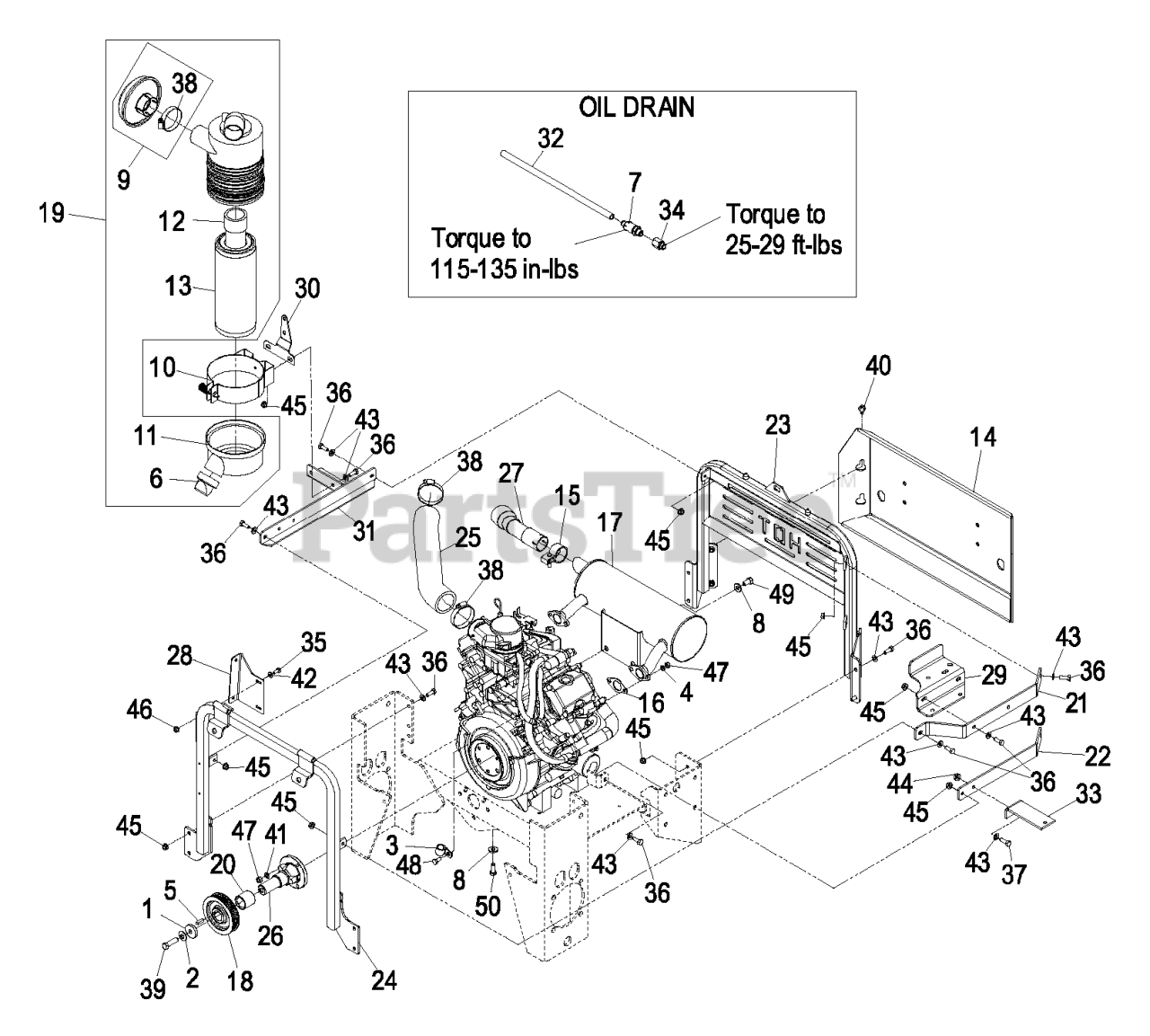

Engine Deck Group (Cont.) Parts Diagram

  • Title

1

Exmark 1-543610

WASHER-CLUTCH

$6.99

$

In Stock, Qty 10

0

2

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 7

0

3

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

4

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 19

0

5

Exmark 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

0

6

Exmark 87-9400

VALVE-VACUATOR

$13.99

$

In Stock, only 3 left!

0

7

Exmark 92-6877

VALVE-DRAIN, OIL

$44.99

$

In Stock, only 3 left!

0

8

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

9

Exmark 100-2436

HOOD-CLEANER, 2" AIR INTA

$76.99

$

Usually ships in 3-6 days

0

10

Exmark 103-1058

BRACKET-FILTER, AIR

$117.99

$

Usually ships in 3-6 days

0

11

Exmark 103-1060

COVER-FILTER, AIR

$249.99

$

Usually ships in 3-6 days

0

Exmark 1-643283

LATCH-CLEANER, AIR

$22.99

$

In Stock, only 2 left!

0

12

Exmark 103-1326

FILTER-AIR, SAFETY

$38.99

$

In Stock, only 2 left!

0

13

Exmark 103-1327

FILTER-AIR

$36.99

$

In Stock, only 2 left!

0

14

Exmark 103-1479-03

WLD,REAR BUMPER

$249.99

$

Usually ships in 3-6 days

0

15

Exmark 103-1512

CLAMP-MUFFLER

$

$

Not available

16

Exmark 103-1564

GASKET-EXHAUST

$

$

Not available

17

Exmark 109-2802

KIT,MUFFLER

$

$

Not available

18

Exmark 103-4718

SHEAVE,5K 4"PD POLY-V

$163.99

$

Usually ships in 3-6 days

0

19

Exmark 103-5178

FILTER-AIR

$319.99

$

In Stock, only 1 left!

0

20

Exmark 103-6226

SPACER,ENGINE SHEAVE

$35.99

$

Usually ships in 3-6 days

0

21

Exmark 103-7558-03

RIB, TOP

$

$

Not available

22

Exmark 103-7579-03

RIB, BOTTOM

$

$

Not available

23

Exmark 103-7581-03

109-8546-03
(Superseded to 109-8546-03)

$703.99

$

Usually ships in 3-6 days

0

24

Exmark 109-2804

ASM, RAD. MOUNT W/ DECALS

$

$

Not available

25

Exmark 103-9096

DISCONTINUED

$

$

Not available

26

Exmark 103-9111

SHAFT, STUB

$

$

Not available

27

Exmark 103-9112

DISCONTINUED

$

$

Not available

28

Exmark 103-9206-03

BRACKET,FRONT COVER

$

$

Not available

29

Exmark 103-9214-03

BRACKET,BOTTLE

$

$

Not available

30

Exmark 103-9222-03

BRACKET,REAR COVER

$

$

Not available

31

Exmark 109-2806

ASM,AIR CLNR BRKT W/ DECA

$

$

Not available

32

Exmark 106-7022

TUBE-DRAIN, OIL

$10.99

$

In Stock, only 2 left!

0

33

Exmark 109-0089-03

BRACKET, HYDRAULIC TANK

$

$

Not available

34

Exmark 109-0878

ADAPTER

$27.99

$

Usually ships in 3-6 days

0

35

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

39

Exmark 3212-6

SCREW-HH

$2.49

$

In Stock, Qty 5

0

40

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

41

Exmark 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

42

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

43

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

44

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

45

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

46

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 17

0

47

Exmark 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

48

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

49

Exmark 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

50

Exmark 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0
