LXSLKA725 - Exmark 72" Lazer Z XS Zero-Turn Mower, Kawasaki (SN: 600000 - 669999) (2006) Hood & Panel Group Parts Diagram

72" Lazer Z XS Zero-Turn Mower, Kawasaki

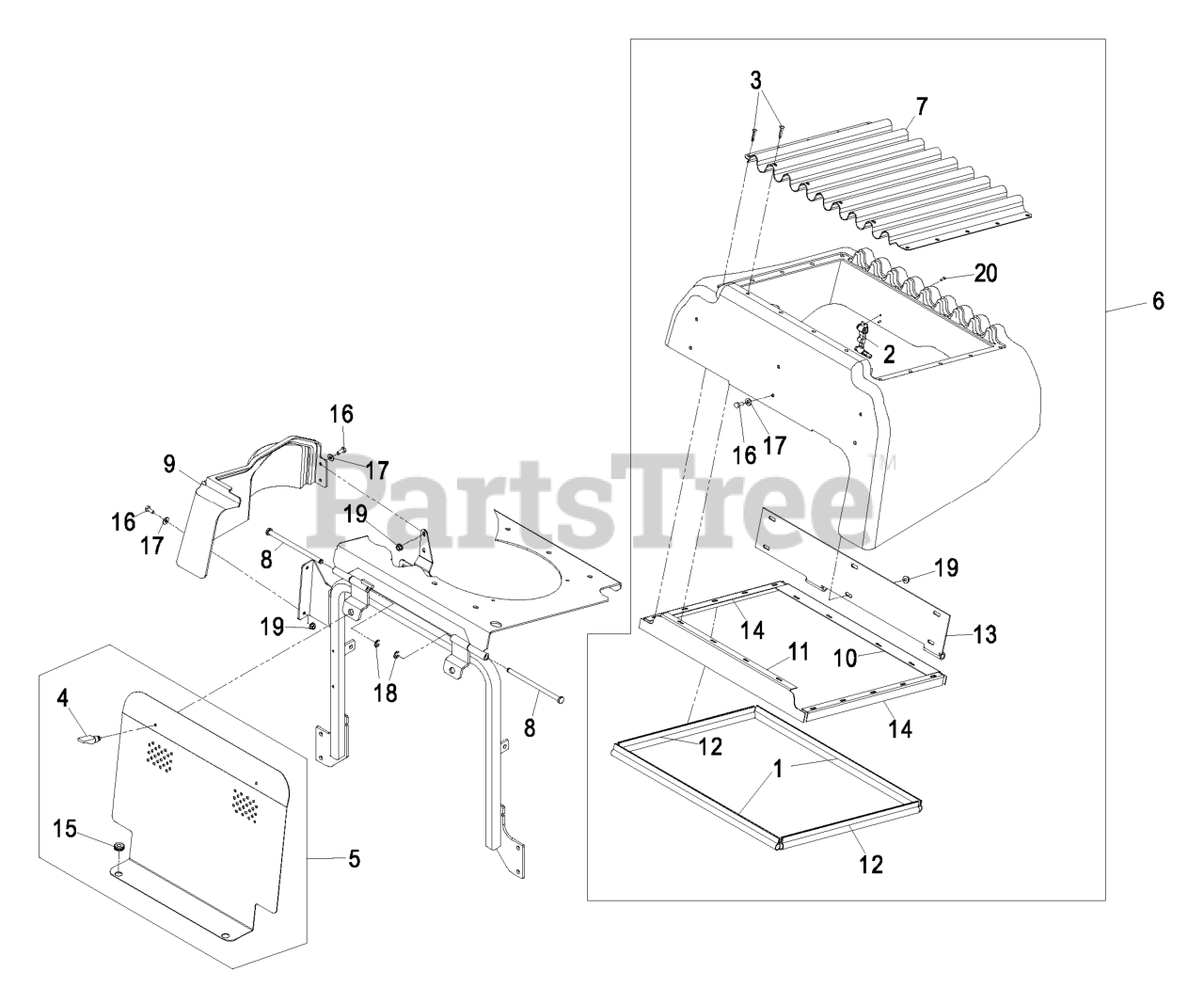

Hood & Panel Group Parts Diagram

  • Title

1

Exmark 1-643187

SEAL-TRIM

$23.99

$

Usually ships in 3-6 days

0

2

Exmark 1-643188

LATCH-RUBBER

$23.99

$

In Stock, Qty 8

0

3

Exmark 1-803072

RIVET

$2.99

$

Usually ships in 3-6 days

0

4

Exmark 74-5950

LATCH-SWELL

$25.99

$

In Stock, Qty 20+

0

5

Exmark 109-2803

DISCONTINUED

$

$

Not available

6

Exmark 103-9200

116-6394
(Superseded to 116-6394)

Note: Hood assembly comes with back logo decal, side decals need to be ordered separately.

$

$

Not available

7

Exmark 103-9201-03

SCREEN, RADIATOR

$

$

Not available

8

Exmark 103-9218

PIN

$20.99

$

In Stock, only 1 left!

0

9

Exmark 103-9221

PANEL, SIDE

$

$

Not available

10

Exmark 103-9223-03

MOUNT,SEAL REAR

$

$

Not available

11

Exmark 103-9224-03

MOUNT,SEAL FRONT

$

$

Not available

12

Exmark 103-9225

SEAL,TRIM 17.1

$

$

Not available

13

Exmark 103-9226-03

WLD, HINGE

$

$

Not available

14

Exmark 103-9228-03

MOUNT,SEAL SIDE

$

$

Not available

15

Exmark 109-0023

GROMMET

$6.99

$

In Stock, Qty 11

0

16

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Exmark 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

19

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 11

0
