LZ 11577 (960410138-01) - Lazer Lawn Tractor (2010-09) DRIVE Parts Diagram

Lawn Tractor

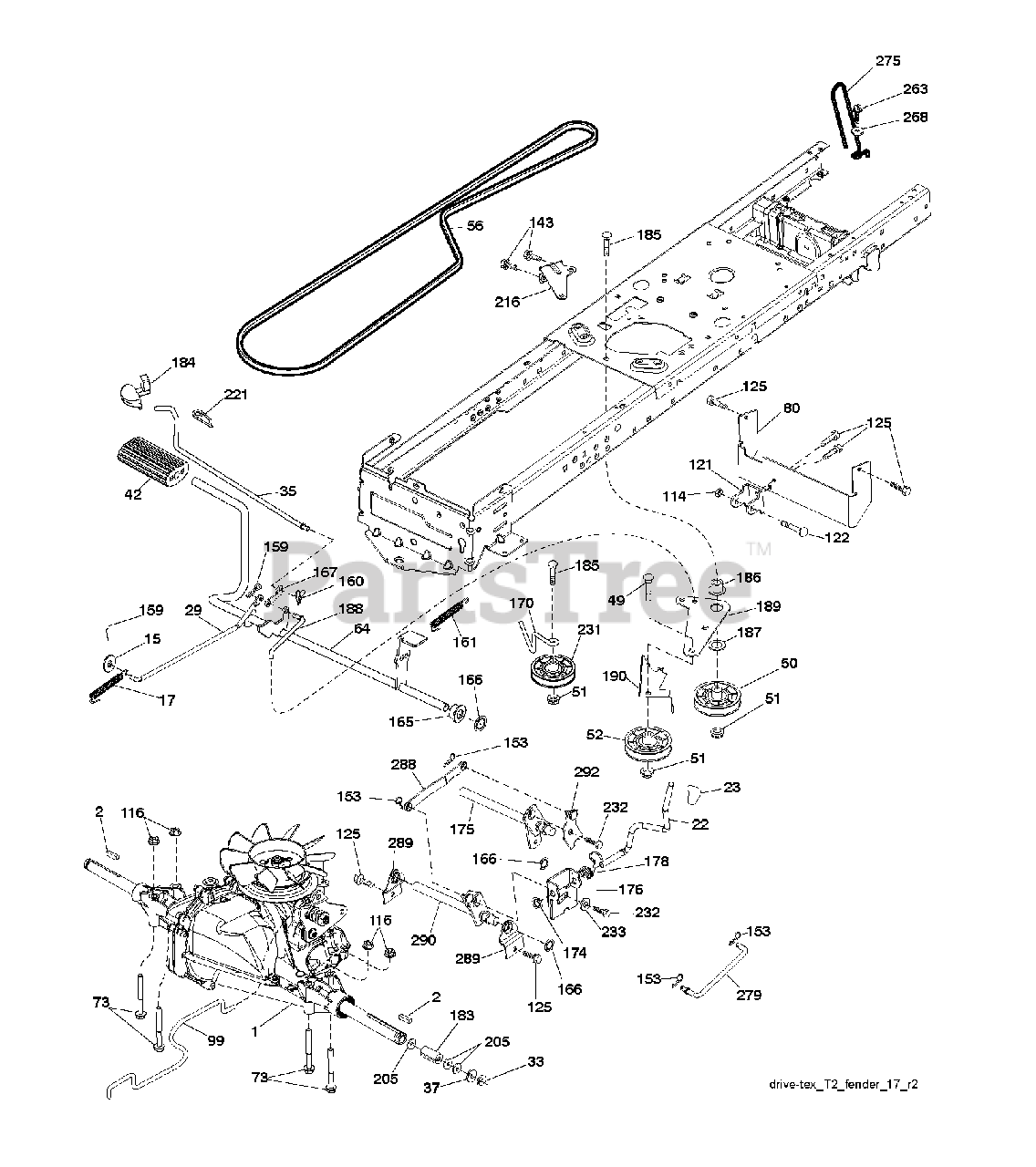

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP TBD

TBD

Note: Transaxle Hydro T2-BABC-1X1A-1GX1

$

$

Not available

2

Electrolux/AYP 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

15

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

17

Electrolux/AYP 532197296

SPRING.BRAKE.HG3000/3500

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 532416614

SHIFTER.ASM.HANDLE.SRD
(Superseded to 532416616)

$

$

Not available

23

Electrolux/AYP 532121274

KNOB.DUCKHEAD.1/2

$8.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532423239

ROD BRAKE

$30.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 812000001

E-RING LT

$4.99

$

In Stock, Qty 17

0

35

Electrolux/AYP 532197722

ROD.BRAKE.PARKING.LT.T

$12.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

42

Electrolux/AYP 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, only 4 left!

0

49

Electrolux/AYP 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

50

Electrolux/AYP 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 532125907

BELT

$36.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 532196200

SHAFT.ASM.PEDAL.BRAKE.

$34.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 532408393

STRAP.TORQUE.FS.T2
(Superseded to 581550701)

$18.99

$

Usually ships in 3-10 days

0

99

Electrolux/AYP 532408418

ROD.ASM.BYPASS.SPRING.T2.FS

$9.99

$

Usually ships in 3-10 days

0

114

Electrolux/AYP 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

121

Electrolux/AYP 532175611

BRACKET STRAP TORQUE

$4.99

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

125

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

153

Electrolux/AYP 532124788

RETAINER M
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Electrolux/AYP 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

160

Electrolux/AYP 532169484

RETAINER CLIP
(Superseded to 596029401)

$3.99

$

In Stock, Qty 13

0

161

Electrolux/AYP 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 20+

0

165

Electrolux/AYP 532196212

BUSHING.SHAFT.BRAKE.HAND

$6.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 4 left!

0

167

Electrolux/AYP 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Electrolux/AYP 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

174

Electrolux/AYP 532197289

NUT.PUSH.500.2006

$6.49

$

In Stock, only 2 left!

0

175

Electrolux/AYP 532408539

SHAFT.ASM.SHFT.T2.TLT

$24.99

$

In Stock, only 1 left!

0

176

Electrolux/AYP 532196214

ARM.CLEVIS.ROD.SHIFT

$7.49

$

Usually ships in 3-10 days

0

178

Electrolux/AYP 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, Qty 5

0

183

Electrolux/AYP 532156972

SPACER, AXLE PVST

$

$

Not available

184

Electrolux/AYP 532411289

HANDLE.PAKRING.BRAKE.
(Superseded to 532198403)

$

$

Not available

185

Electrolux/AYP 872110622

BOLT

$3.99

$

In Stock, only 2 left!

0

186

Electrolux/AYP 532194321

SPACER.RETAINER

$7.49

$

In Stock, only 1 left!

0

187

Electrolux/AYP 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$3.99

$

In Stock, Qty 18

0

188

Electrolux/AYP 532194323

LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Electrolux/AYP 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$4.99

$

In Stock, Qty 7

0

190

Electrolux/AYP 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 19

0

205

Electrolux/AYP 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

216

Electrolux/AYP 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.49

$

In Stock, only 2 left!

0

221

Electrolux/AYP 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 10

0

231

Electrolux/AYP 532407287

IDLER.V-GROOVE.1.688.OFFSET

$18.99

$

In Stock, Qty 20+

0

232

Electrolux/AYP 874780716

BOLT FIN HEX 7/16-14 X 1

$4.99

$

Usually ships in 3-10 days

0

233

Electrolux/AYP 532405296

WASHER SERRATED

$6.49

$

Usually ships in 3-10 days

0

263

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

268

Electrolux/AYP 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

275

Electrolux/AYP 532182402

NO LONGER AVAILABLE
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

279

Electrolux/AYP 532424155

LINK.SHIFT.T2

$15.99

$

Usually ships in 3-10 days

0

288

Electrolux/AYP 532416617

LINK.SHIFT.SLAVE.SRD

$

$

Not available

289

Electrolux/AYP 532417520

BRACKET.SUPPORT.SHIFT.OUTER
(Superseded to 583365301)

$3.99

$

Usually ships in 3-10 days

0

290

Electrolux/AYP 532420014

SHAFT.ASM.SHIFT.REAR.SRD
(Superseded to 583378801)

$

$

Not available

292

Electrolux/AYP 532419307

PLATE.ASM.SHIFT.FWD.SRD
(Superseded to 583374901)

$

$

Not available
