LZ 11577 HRB (960410138-02) - Lazer Lawn Tractor (2011-12) STEERING Parts Diagram

Lawn Tractor

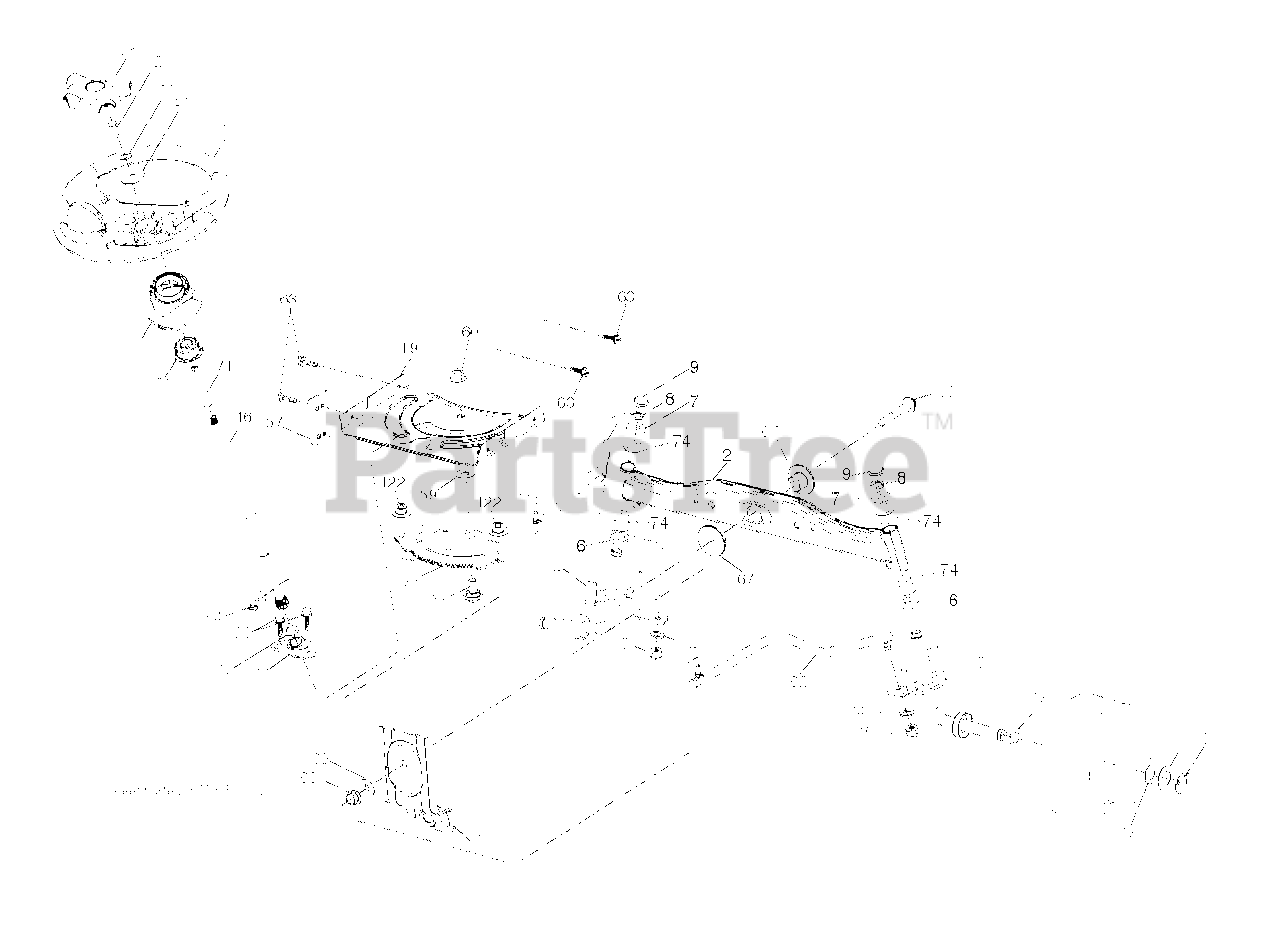

STEERING Parts Diagram

  • Title

1

Electrolux/AYP 532424543

WHEEL.STEERING.HARD.RIM.BLAC

$40.99

$

In Stock, Qty 16

0

2

Electrolux/AYP 532418168

AXLE HALF ASM-WELDED

$46.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532416845

Spindle Assembly, LH 13"
(Superseded to 583361001)

$37.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532416846

Spindle Assembly, RH 13"
(Superseded to 583361101)

$37.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 532124931

NO LONGER AVAILABLE
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 532121232

CAP.SPINDLE

$3.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 873540600

NUT CROWNLOCK 3/8-24

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 532429373

SHAFT.STEER.3/4.PLATED.TEX
(Superseded to 587738903)

$28.99

$

In Stock, Qty 8

0

19

Electrolux/AYP 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532411291

BOOT STEERING BLACK

$7.49

$

In Stock, Qty 19

0

21

Electrolux/AYP 532186737

ADAPTER, WHEEL STNG..
(Superseded to 532437747)

$7.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 532420537

STEERING.SUPT.LOWER.
(Superseded to 587738901)

$17.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 532424691

INSERT, WHEEL STEERING

$7.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 819113812

WASHER.11/32

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 532407465

BRACKET.UPSTOP.TEX

$4.99

$

In Stock, only 1 left!

0

58

Electrolux/AYP 532194747

BOLT.SHOULDER.SECTOR.P

$8.99

$

In Stock, Qty 18

0

59

Electrolux/AYP 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, Qty 20+

0

60

Electrolux/AYP 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, Qty 20+

0

61

Electrolux/AYP 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

$12.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532194741

DRAGLINK.RH.BALLSTUD.D
(Superseded to 597047902)

$13.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

64

Electrolux/AYP 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 20+

0

66

Electrolux/AYP 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, Qty 12

0

67

Electrolux/AYP 532194737

BUSHING.PM.FRONT AXLE

$4.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 20+

0

69

Electrolux/AYP 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, Qty 10

0

70

Electrolux/AYP 532417065

Suspension Bracket, Front 30" Srd

$8.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 532190752

SHAFT.EXTEN.STRG.SPLINE

$17.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 532428982

BOLT 5/16-18 X 4 W/PATCH

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 532124937

BRNG T
(Superseded to 532003366)

$3.49

$

In Stock, Qty 20+

0

122

Electrolux/AYP 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$6.49

$

In Stock, Qty 20+

0
