LZ 12597 RB (960610297-02) - Lazer Lawn Tractor (2011-11) ENGINE Parts Diagram

Lawn Tractor

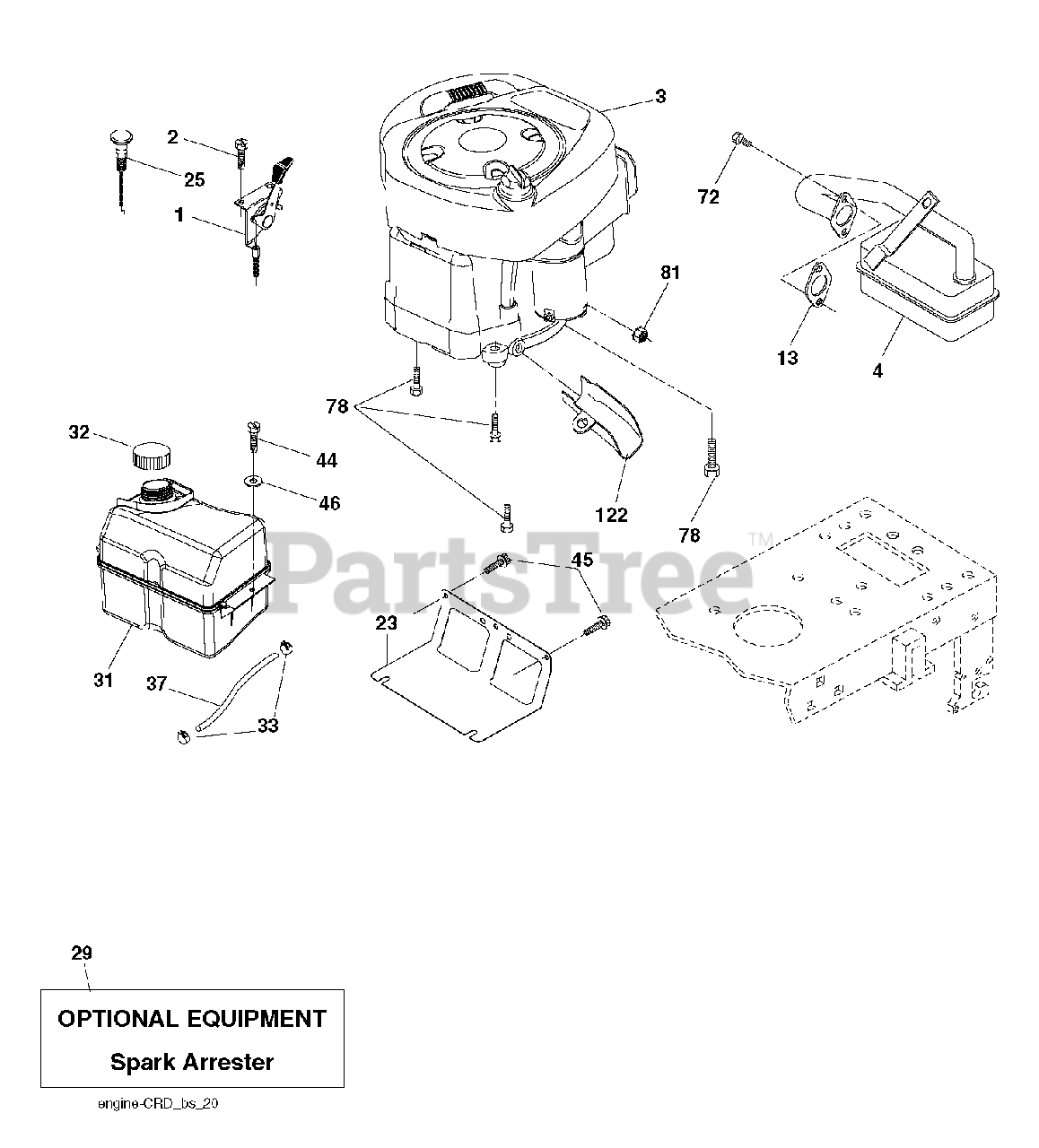

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 532170551

CONTROL TH/CH FLAG

$

$

Not available

2

Electrolux/AYP 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: Engine B S Model No 219807-3402-B1 (438614)

$

$

Not available

4

Electrolux/AYP 532179758

MUFFLER

$53.99

$

In Stock, Qty 19

0

13

Electrolux/AYP 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532169837

SHEILD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$27.99

$

In Stock, Qty 7

0

25

Electrolux/AYP 532190695

KNOB.ERGO.EXTENDED.RED (1 2)

$

$

Not available

29

Electrolux/AYP 532137180

ARRESTER SPARK (OPTIONAL)
(Superseded to 532121851)

$

$

Not available

31

Electrolux/AYP 532407551

NO LONGER AVAILABLE

$

$

Not available

32

Electrolux/AYP 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

33

Electrolux/AYP 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

37

Electrolux/AYP 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0

44

Electrolux/AYP 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 17

0

46

Electrolux/AYP 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

72

Electrolux/AYP 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

78

Electrolux/AYP 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

81

Electrolux/AYP 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

122

Electrolux/AYP 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 6

0
