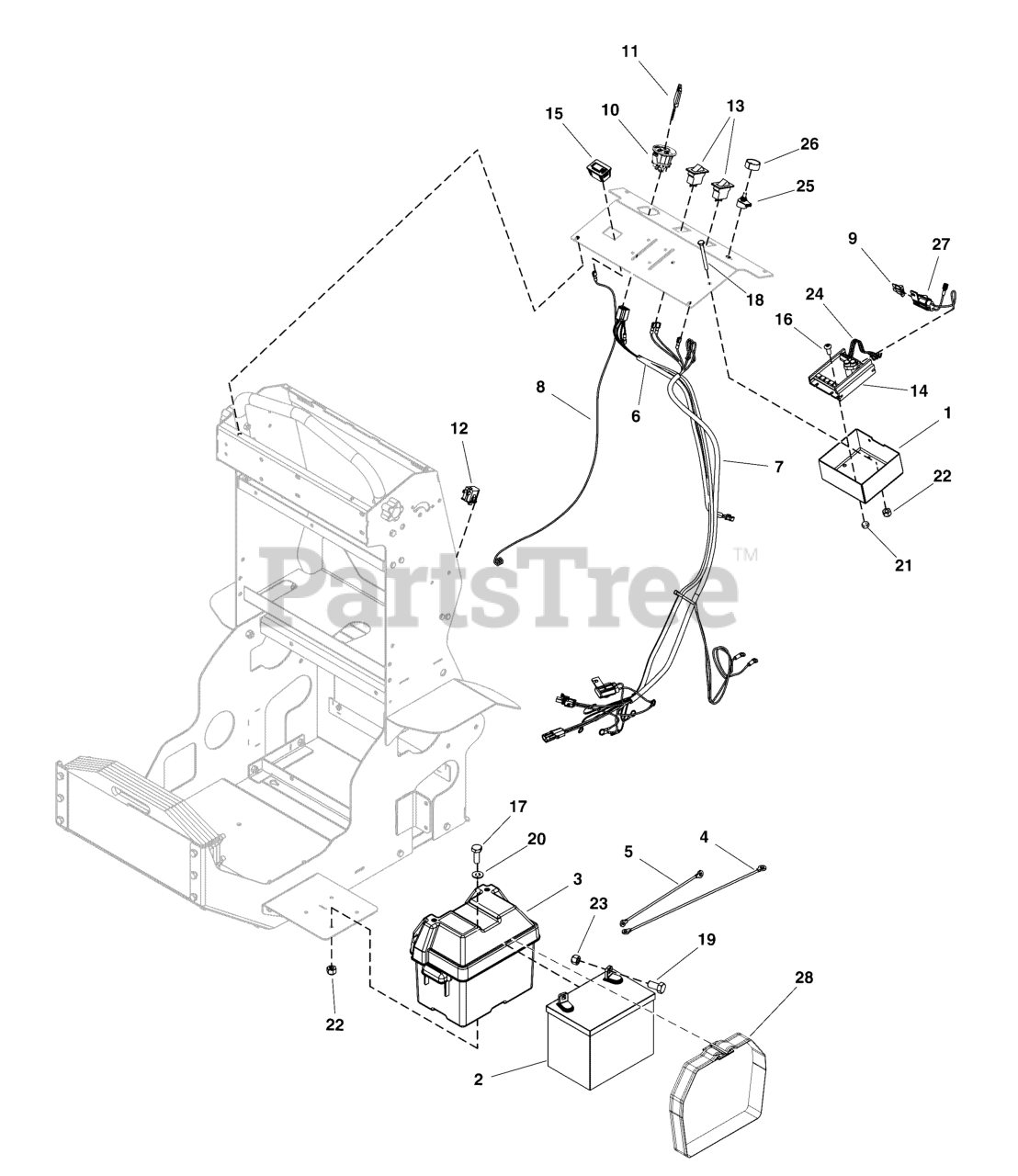

LZ 200240 V - Lesco Stand-On Spreader Sprayer Electrical Group Parts Diagram

Stand-On Spreader Sprayer

Electrical Group Parts Diagram

  • Title

1

Briggs & Stratton 5418408

COVER, DART CONTROLLER

$67.99

$

Usually ships in 2-12 days

0

2

BATTERY, 12 VOLT, 230 CCA

$

$

Not available

3

Briggs & Stratton 5100688

BATTERY BOX, W/ DRAIN HOLE

$69.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 5044471

BATTERY CABLE, POSITIVE, 15

$22.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 5044472

BATTERY CABLE, NEG, 10, 1/4-5/16

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 5106697

HARNESS, IGNITION

$94.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5106698

WIRING HARNESS, PUMP/GEAR MOTOR

$101.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5106717

HARNESS, HOUR METER

$9.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 5106699

FUSE, ATOF/ATO, 20A 32V

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5106193

SWITCH, IGNITION 3 POSITION KEY

$50.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5106252

KEY, IGNITION

$6.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 1732004

SWITCH, Push Button, NO, Black

$9.49

$

In Stock, only 4 left!

0

13

Briggs & Stratton 5106086

SWITCH, ROCKER 2P SPST 20A 14VDC

$21.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 5106161

DRIVE, LOW VOLTAGE 20A 65E

$766.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 5106145

METER, TACH/HOUR INDUCTIVE PICKUP

$123.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 5105978

SCR-CAP, BSH #10-24 X .500" SS188
(Superseded to 84009048)

$3.49

$

In Stock, only 3 left!

0

17

Briggs & Stratton 5106214

SCR-CAP, HEX .250"-20 X .750" SS188
(Superseded to 84010151)

$3.49

$

In Stock, only 2 left!

0

18

Briggs & Stratton 5106275

SCR-CAP, HEX .250"-20 X 3.000" SS188

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5106580

SCR-CAP, HEX .375"-16 X .750" SS188

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5106067

WSHR-STL, FLT .281" X .625" X .050" IS SS188
(Superseded to 84010425)

$3.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 5105963

NUT-HEX-NYLK, #10-24 SS188
(Superseded to 5105963FS)

$3.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 5106040

NUT-HEX-NYLK, .250"-20 SS188
(Superseded to 5106040FS)

$3.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 5106006

NUT-HEX-NYLK, .375"-16 SS188
(Superseded to 5106006FS)

$3.99

$

Usually ships in 2-12 days

0

24

HARNESS, SPEED CONTROL TO PCB

Note: (Service with item # 25)

$

$

Not available

25

Briggs & Stratton 5106253

POTENTIOMETER, SPEED CONTROL 5K OHM

Note: (Includes potentiometer, nut, washer, and 3 wire leads)

$163.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 5106693

KNOB, DART SPEED CONTROL
(Superseded to 84009807)

$77.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 5106681

HARNESS, ATO FUSE HOLDER

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 5106544

STRAP, BATTERY BOX 45"

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 5108486

CLAMP, HARNESS ROUTING, SS

$6.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 5106029

SCR-CAP, HEX .250"-20 X .625" SS188
(Superseded to 84009056)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 5420650

TRIM, U-CHANNEL .031"X.156"X1.25" LONG

$3.49

$

Usually ships in 2-12 days

0
