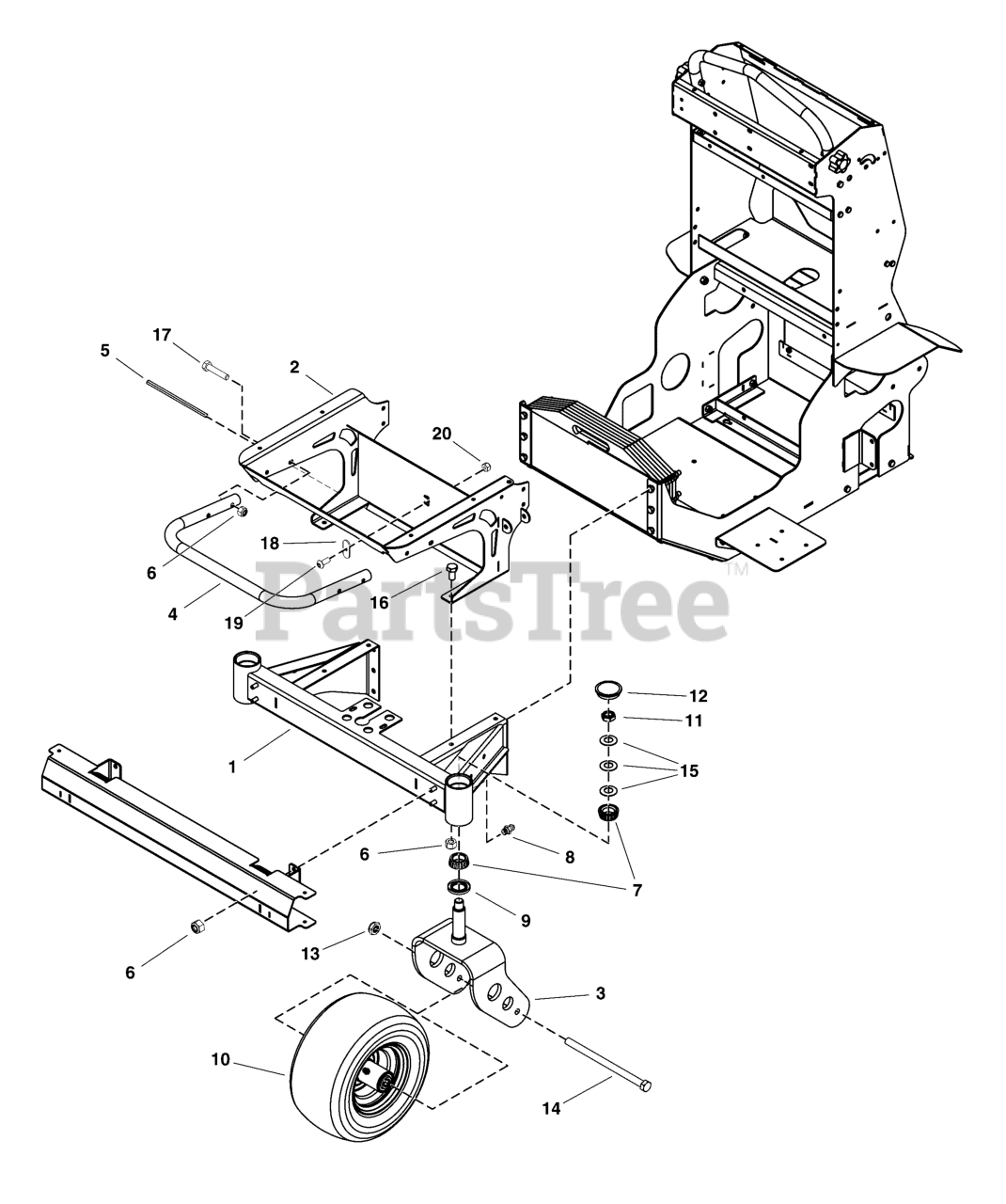

LZ 200240 V - Lesco Stand-On Spreader Sprayer Front Caster Group Parts Diagram

Stand-On Spreader Sprayer

Front Caster Group Parts Diagram

  • Title

1

5106272

WELD, CASTER ARM SUPPORT

$

$

Not available

2

5418326

WELD, HOPPER SUPPORT

Note: (S/N: 30000003685 and Below)

$

$

Not available

2

84008653

SUPPORT

Note: (S/N: 30000003686 and Above)

$

$

Not available

3

5418356

WELD, CASTER FORK ASSEMBLY

$

$

Not available

4

5418341

TUBE, FRONT BUMPER

Note: (S/N: 30000003685 and Below)

$

$

Not available

4

BUMPER, Tube

Note: (S/N: 30000003686 and Above)

$

$

Not available

5

5418427

TRIM FOR CONSOLE, 7 INCH

Note: (S/N: 30000003685 and Below)

$

$

Not available

5

84008656

TRIM

Note: (S/N: 30000003686 and Above)

$

$

Not available

6

5105992FS

NUT

$

$

Not available

7

5106044

BRG, TPR 1.063" ID X .58" THK

$

$

Not available

8

5106119

ZERK, GREASE .250"-28 SS

$

$

Not available

9

5106126

SEAL, 1.125" BORE x 1.987 OD x 0.250 THK

$

$

Not available

10

5106150

ASM, WHEEL & TIRE 13X6.50-6 FILLED SMOOTH

$

$

Not available

10-1

5108684

KIT, 5106150 REPLACEMENT BEARING

Note: (Includes 2 each of bearing, spacer, and seal to service 5106150 tire)

$

$

Not available

11

5106184FS

NUT

$

$

Not available

12

5109845FS

CAP

$

$

Not available

13

5106582

NUT-HEX-NYLK, .500"-13 TH TTW SS188

$

$

Not available

14

5106583

SCR-CAP, HEX .500"-13 X 8.000" SS188

$

$

Not available

15

5106585

WSHR-STL, BLV, .770" X 1.500" X .045" MZ

$

$

Not available

16

5106649

SCR-CAP, HEX .3125"-18 X .625" SS188

$

$

Not available

17

5106755

SCR-CAP, HEX .3125"-18 X 1.500" SS188

$

$

Not available

18

5105969

PLATE, CABLE HOLDER

$

$

Not available

19

5105978

SCR-CAP, BSH #10-24 X .500" SS188

$

$

Not available

20

5105963FS

NUT

$

$

Not available
