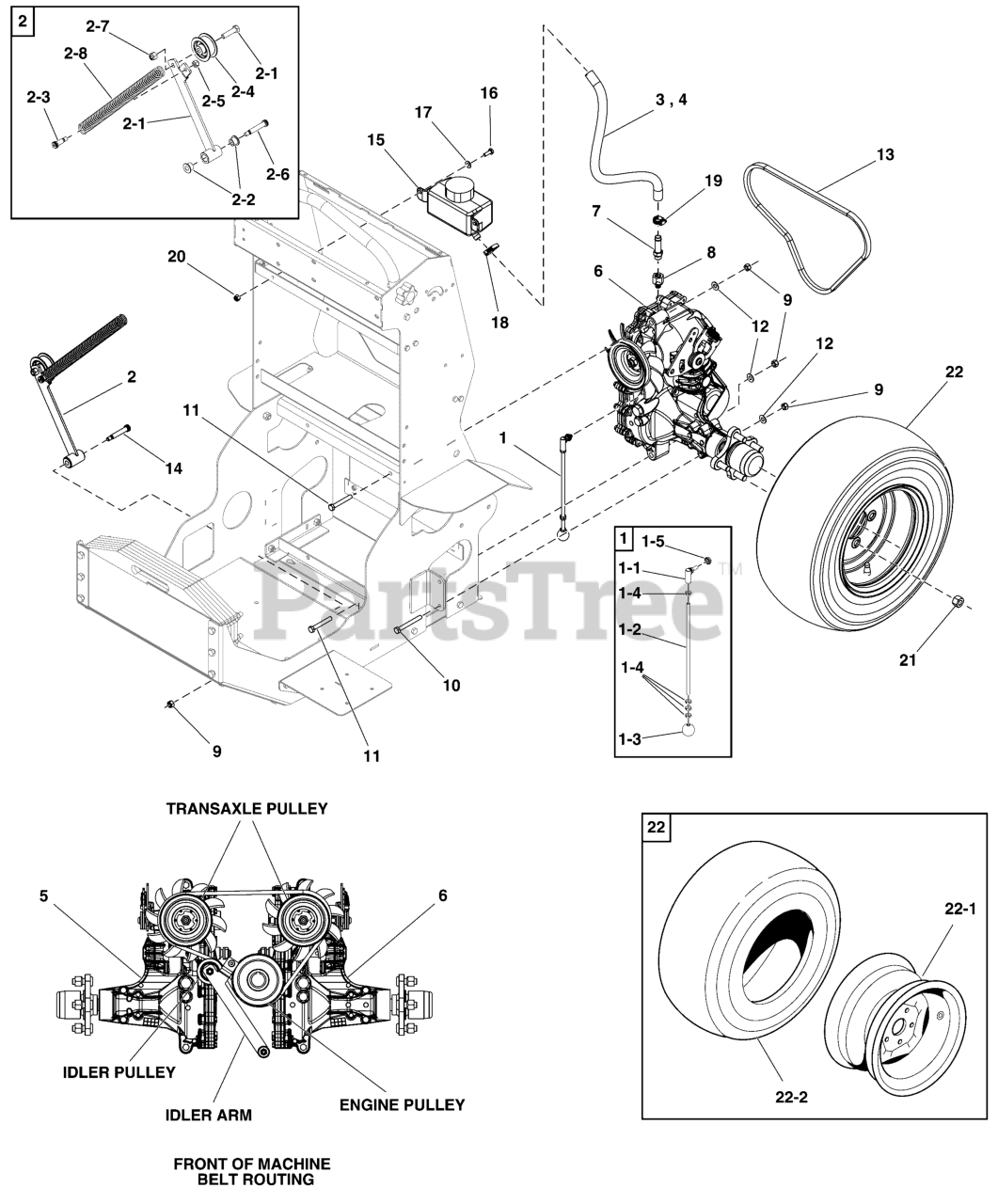

LZ 200240 V - Lesco Stand-On Spreader Sprayer Power Transmission Group - S/N: 30000003664 and Below Parts Diagram

Stand-On Spreader Sprayer

Power Transmission Group - S/N: 30000003664 and Below Parts Diagram

  • Title

1

ASM, TRANSMISSION RELEASE

$

$

Not available

1-1

5106658

ROD END, FEM 1/4-28 RH SS PTFE RACE STUD

$

$

Not available

1-2

5106660

ROD, CONTROL 1/4-28 THD X 9.00" MZ

$

$

Not available

1-3

5106659

KNOB, BALL 1.000 OD W/1/4-28 INSERT

$

$

Not available

1-4

5106016

NUT-HEX, JAM .250"-28 SS188

$

$

Not available

1-5

5106742

NUT-HEX-FGLK.250"-28 SS188

$

$

Not available

2

ASM, IDLER ARM

$

$

Not available

2-1

5422194

IDLER ARM W/ BUSHINGS

Note: (Includes item #2-2.)

$

$

Not available

2-2

5106031

BUSHING, FLANGE 3/8 ID X 5/8 OD X 1/2 LG

$

$

Not available

2-3

5106712

BLT-SLDR, SH .375" X 0.750", .3125"-18 X.500" G8ZY

$

$

Not available

2-4

5108777

PULLEY IDLER 2.75" OD X 3/8" BORE

$

$

Not available

2-5

5108891

NUT-HEX-NYLK, .260"-20 TH SS188

$

$

Not available

2-6

5106518

SCR-CAP, HEX .375"-16 X 1.7500" SS188

$

$

Not available

2-7

5106006

NUT-HEX-NYLK, .375"-16 SS188

$

$

Not available

2-8

80090207

SPRING, SWIVEL HOOK, 9" X 1"

$

$

Not available

2-9

5106168

WSHR-STL, FLT .406" X .875" X .050" IS SS188

$

$

Not available

3

5106250

HOSE, L EXP TANK, 18.5" LONG

Note: (Connects to left expansion tank)

$

$

Not available

4

5106251

HOSE, R EXP TANK, 18" LONG

Note: (Connects to right expansion tank)

$

$

Not available

5

5106336

TRANSAXLE, ZT3100, LH, ZL-GMPP-3B7B-1PXX

Note: (S/N: 30000002448 and below)

$

$

Not available

5

5109248

TRANSAXLE, ZT3100, LH, ZL-GMPP-SB7B-1PXX

Note: (S/N: 30000002249 and above)

$

$

Not available

6

5106248

TRANSAXLE, ZT3100, RH, ZL-KMPP-3B7C-1PXX

Note: (S/N: 30000002448 and below)

$

$

Not available

6

5109244

TRANSAXLE, ZT3100, RH, ZL-KMPP-SB7C-1PXX

Note: (S/N: 30000002249 and above)

$

$

Not available

7

5106656

FITTING, 08HB - 06MORB STRAIGHT

$

$

Not available

8

5106657

FITTING, 6410-04-06

$

$

Not available

9

5105992

NUT-HEX-NYLK, 0.3125"-18 SS188

$

$

Not available

10

5106550

SCR-CAP, HEX .3125"-18 X 2.750" SS188

$

$

Not available

11

5106056

SCR-CAP, HEX .3125"-18 X 2.250" SS188

$

$

Not available

12

5106009

WSHR-STL, FLT .343" X .750" X .050" SPC SS188

$

$

Not available

13

5106715

BELT, V, AK36 38.00 OC OHR, KVR CD

$

$

Not available

14

5106207

BLT-SLDR SH.375"X1.75".3125"-18 X.50" SS188

$

$

Not available

15

5106692

HYDRO RES. # 71328, 350 ml

$

$

Not available

16

5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$

$

Not available

17

5106067

WSHR-STL, FLT .281" X .625" X .050" IS SS188

$

$

Not available

18

5106655

SNAP GRIP CLAMP .656 - .750 ID

$

$

Not available

19

5106683

CLAMP, MINIATURE WORM GEAR MAH6

$

$

Not available

20

5106040

NUT-HEX-NYLK, .250"-20 SS188

$

$

Not available

21

5105964

NUT-LUG, .500"-20 ZP

$

$

Not available

22

5106714

ASM, WHEEL & TIRE 20" X 10.00" - 12 LAWN BOSS

$

$

Not available

22-1

RIM, Wheel

$

$

Not available

22-2

TIRE, (ONLY)

$

$

Not available

23

5108891

NUT-HEX-NYLK, .260"-20 TH SS188

$

$

Not available
