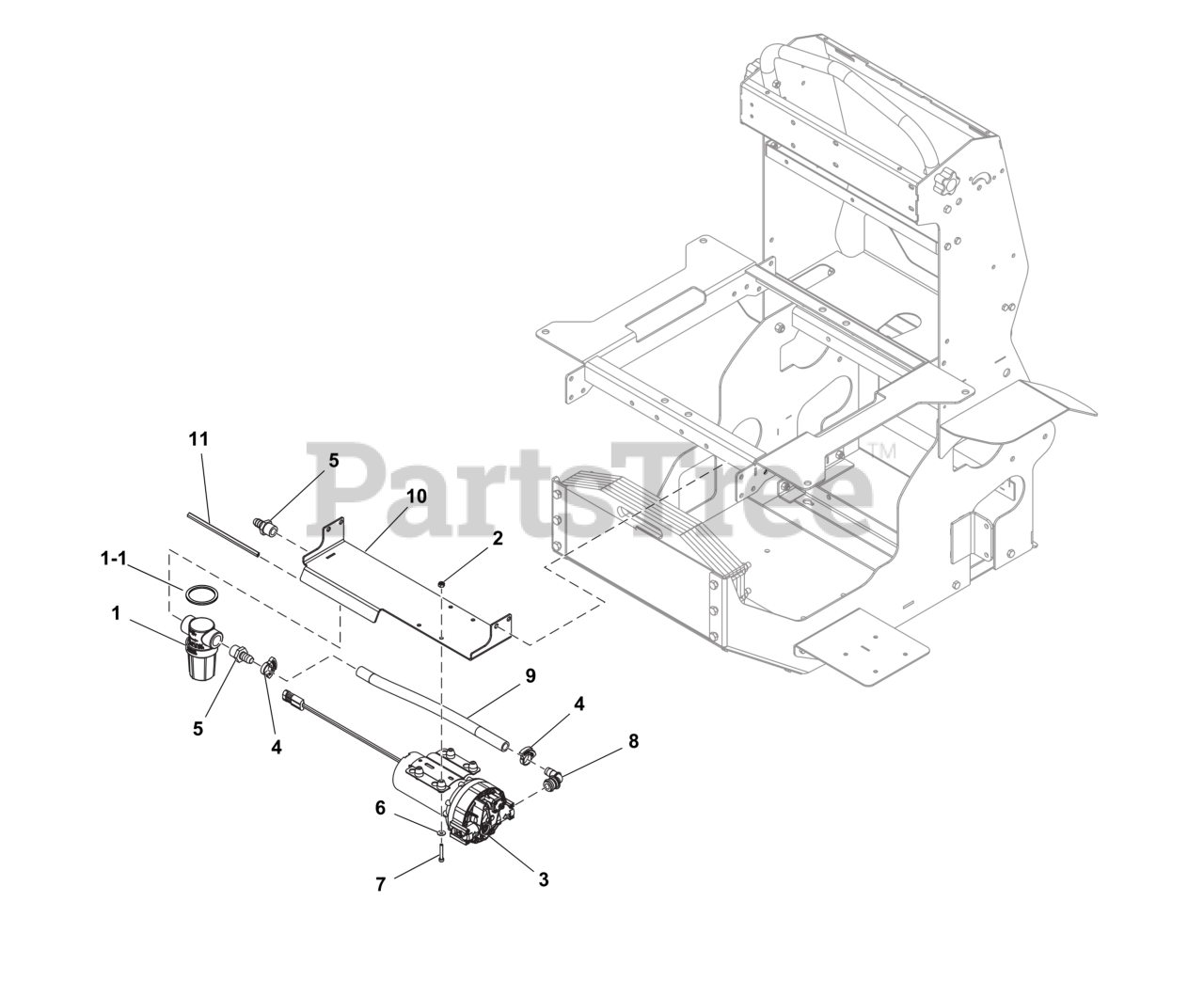

LZ 200240 V - Lesco Stand-On Spreader Sprayer Pump Venture Group Parts Diagram

Stand-On Spreader Sprayer

Pump Venture Group Parts Diagram

  • Title

1

84008892

STRAINER

Note: (Includes item #1-1.)

$

$

Not available

1-1

84009456

GASKET

$

$

Not available

2

5105963FS

NUT

$

$

Not available

3

5106237

PUMP, VENTURE

Note: (S/N: 30000003685 and Below)

$

$

Not available

3

84008743

PUMP

Note: (S/N: 30000003686 and Above)

$

$

Not available

4

5106655

SNAP GRIP CLAMP .656 - .750 ID

Note: (S/N: 30000003685 and Below)

$

$

Not available

4

84008744

CLAMP

Note: (S/N: 30000003686 and Above)

$

$

Not available

5

5106663

FITTING, 1/2 MPT - 1/2 BARB

$

$

Not available

6

5106673

WSHR-STL, FLT .203" X .562" X .040 IS SS188

$

$

Not available

7

5106674

SCR-CAP SH, #10-24 X 1.250" SS188

$

$

Not available

8

5106675

FITTING, ELBOW, 3/4 QA - 1/2 BARB

$

$

Not available

9

5418415

HOSE, PUMP SUCTION, 0.5" ID, 12" LONG

Note: (S/N: 30000003685 and Below)

$

$

Not available

9

84008654

HOSE, Chemical

Note: (S/N: 30000003686 and Above)

$

$

Not available

10

5418424

WELD, FILTER MOUNT BRACKET

Note: (S/N: 30000003685 and Below)

$

$

Not available

10

84008655

BRACKET, Mounting

Note: (S/N: 30000003686 and Above)

$

$

Not available

11

5418427

TRIM FOR CONSOLE, 7 INCH

Note: (S/N: 30000003685 and Below)

$

$

Not available

11

84008656

TRIM

Note: (S/N: 30000003686 and Above)

$

$

Not available
