LZ 200240 V - Lesco Stand-On Spreader Sprayer Sprayer Tank Group S/N: 30000003685 and Below Parts Diagram

Stand-On Spreader Sprayer

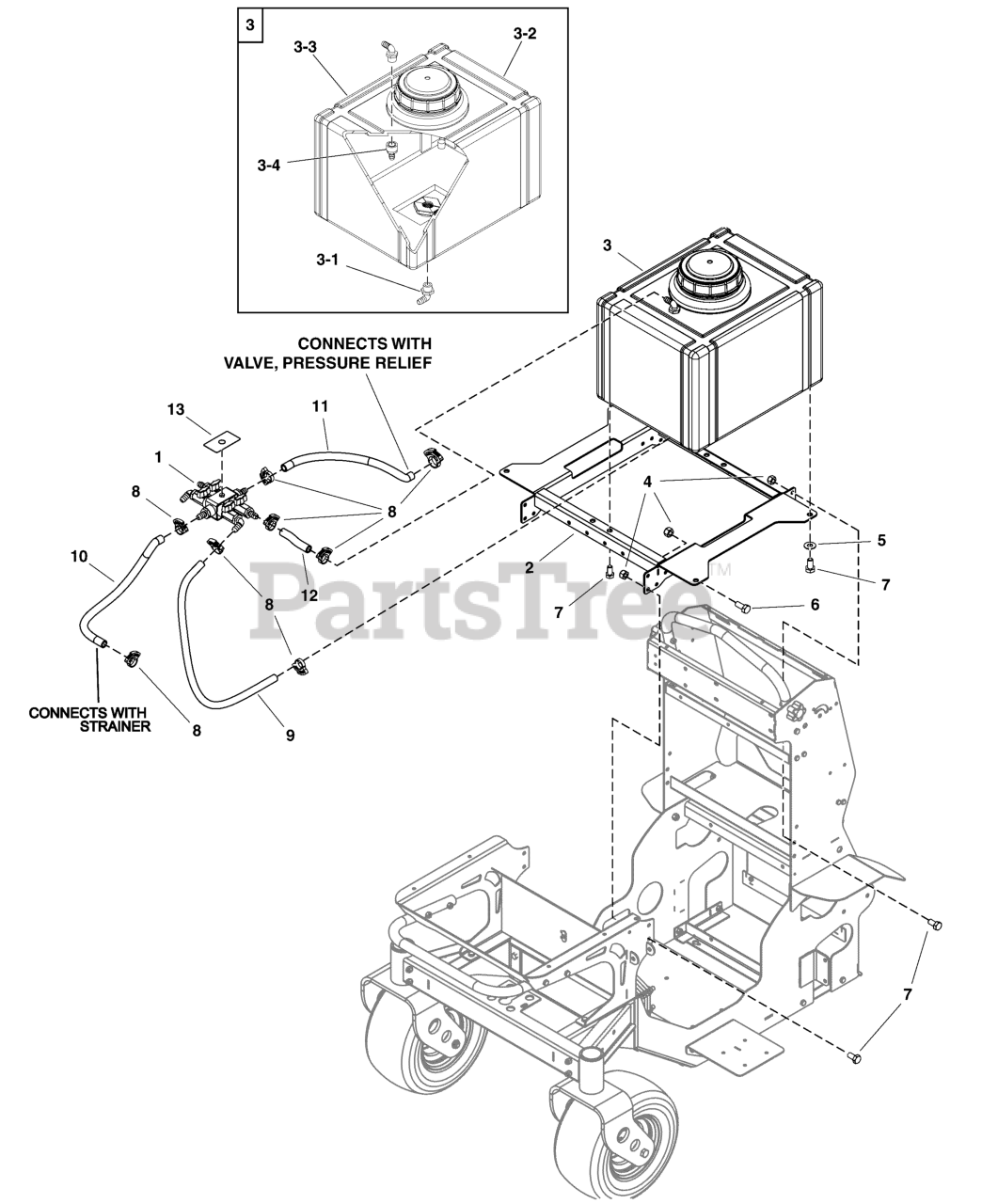

Sprayer Tank Group S/N: 30000003685 and Below Parts Diagram

  • Title

1

Refer to: Spray Tank Valve Group

$

$

Not available

2

5418359

WELD, SPRAY TANK MOUNT

$

$

Not available

3

5418422

ASM, SPRAY TANK

$

$

Not available

3-1

5106667

FITTING, 3/4 MPT - 1/2 BARB, 90 ELBOW

$

$

Not available

3-2

TANK, 12 GAL RT W/SUMP HDPE NAT

$

$

Not available

3-3

5106665

FITTING, 1/2 MPT - 1/2 BARB, 90 ELBOW

$

$

Not available

3-4

5106672

FITTING, 1/2 FPT - 1/2 BARB

$

$

Not available

3-5

5105985

LID, TANK, SPRAY (G0134)

$

$

Not available

4

5105992

NUT-HEX-NYLK, 0.3125"-18 SS188

$

$

Not available

5

5106009

WSHR-STL, FLT .343" X .750" X .050" SPC SS188

$

$

Not available

6

5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$

$

Not available

7

5106649

SCR-CAP, HEX .3125"-18 X .625" SS188

$

$

Not available

8

5106655

SNAP GRIP CLAMP .656 - .750 ID

$

$

Not available

9

5418411

HOSE, TANK SUPPLY, 0.5" ID, 28" LONG

$

$

Not available

10

5418413

HOSE, FILTER SUPPLY, 0.5" ID, 25" LONG

$

$

Not available

11

5418414

HOSE, MANIFOLD SUPPLY, 0.5" ID, 14" LONG

$

$

Not available

12

5418423

HOSE, TANK RETURN, 0.5" ID, 2" LONG

$

$

Not available

13

5106710

DECAL, SPRAY TANK SUCTION / RETURN LABEL

$

$

Not available

14

5418427

TRIM FOR CONSOLE, 7 INCH

$

$

Not available

15

5108486

CLAMP, HARNESS ROUTING, SS

$

$

Not available

16

5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$

$

Not available

17

5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$

$

Not available
