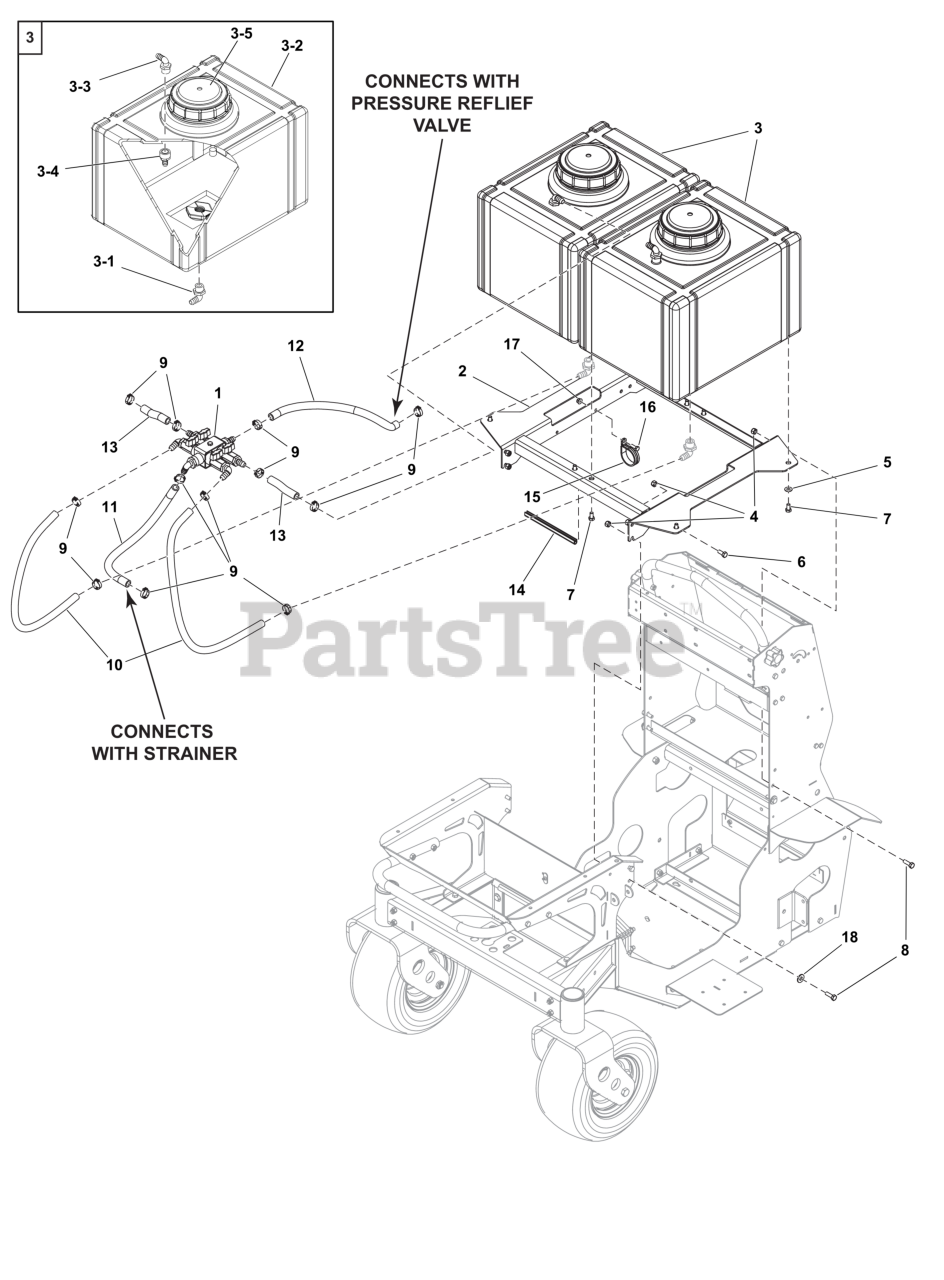

LZ 200240 V - Lesco Stand-On Spreader Sprayer Sprayer Tank Group S/N: 30000003686 and Above Parts Diagram

Stand-On Spreader Sprayer

Sprayer Tank Group S/N: 30000003686 and Above Parts Diagram

  • Title

1

Refer to: Spray Tank Valve Group

$

$

Not available

2

84008742

MOUNT, Tank

$

$

Not available

3

5418422

ASM, SPRAY TANK

$

$

Not available

3-1

5106667

FITTING, 3/4 MPT - 1/2 BARB, 90 ELBOW

$

$

Not available

3-2

TANK, 12 GAL RT W/SUMP HDPE NAT

$

$

Not available

3-3

5106665

FITTING, 1/2 MPT - 1/2 BARB, 90 ELBOW

$

$

Not available

3-4

5106672

FITTING, 1/2 FPT - 1/2 BARB

$

$

Not available

3-5

5105985

LID, TANK, SPRAY (G0134)

$

$

Not available

4

5105992

NUT-HEX-NYLK, 0.3125"-18 SS188

$

$

Not available

5

5106009

WSHR-STL, FLT .343" X .750" X .050" SPC SS188

$

$

Not available

6

5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$

$

Not available

7

5106649

SCR-CAP, HEX .3125"-18 X .625" SS188

$

$

Not available

8

5106576

SCR-CAP, HEX .3125"-18 X 1.000" SS188

$

$

Not available

9

84008744

CLAMP

$

$

Not available

10

84008658

HOSE, Chemical

$

$

Not available

11

84008659

HOSE, Chemical

$

$

Not available

12

84008660

HOSE, Chemical

$

$

Not available

13

84008661

HOSE, Chemical

$

$

Not available

14

84008656

TRIM

$

$

Not available

15

5108486

CLAMP, HARNESS ROUTING, SS

$

$

Not available

16

5106214

SCR-CAP, HEX .250"-20 X .750" SS188

$

$

Not available

17

5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$

$

Not available

18

5107649

WSHR-SS, FLT .375"X.875"X.083" USS

$

$

Not available
