LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2006-04) CASTERS Parts Diagram

Zero-Turn Mower

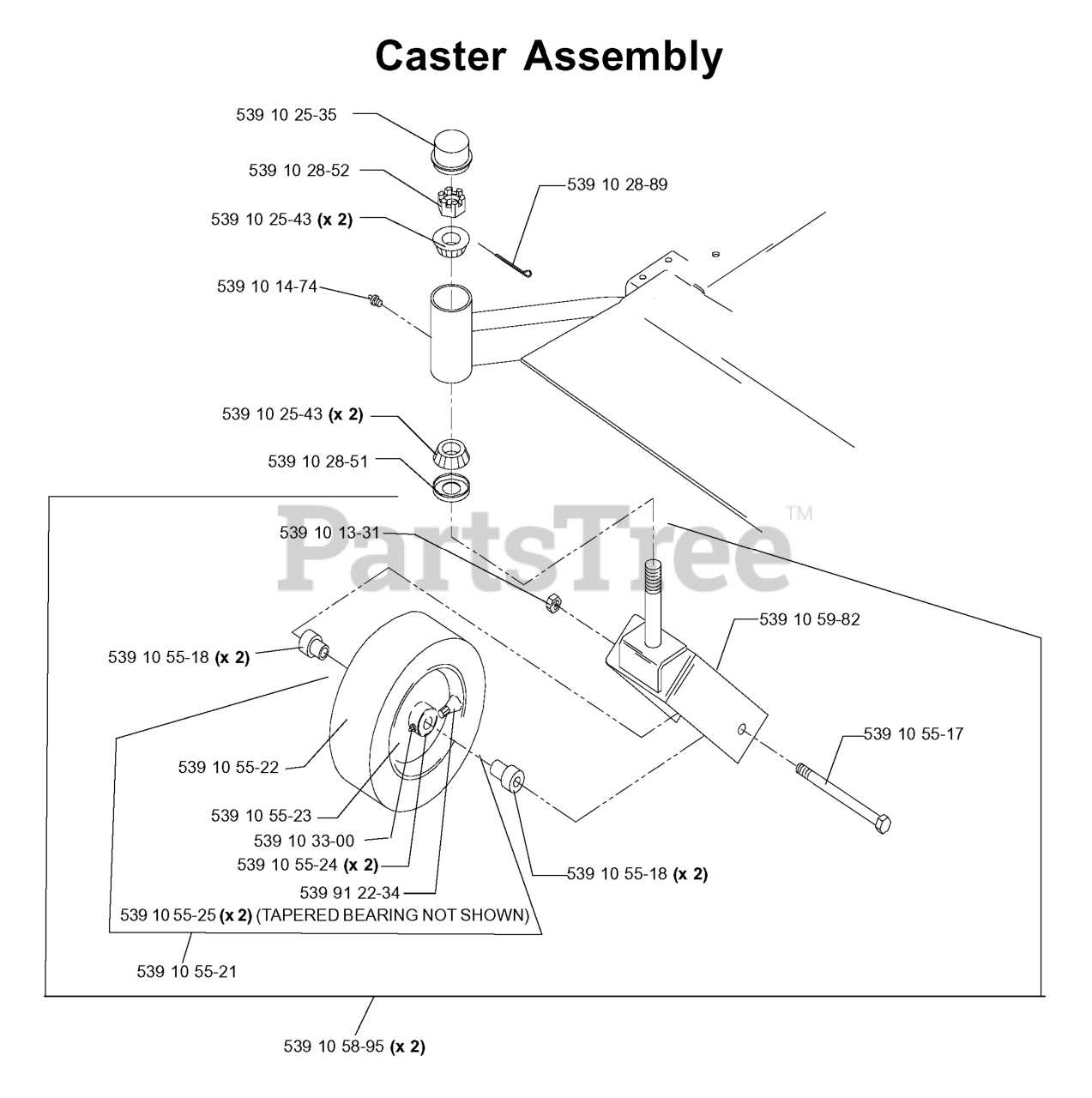

CASTERS Parts Diagram

  • Title

539 10 55-23

Husqvarna 539105523

RIM

$

$

Not available

539 91 22-34

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 15

0

539 10 25-35

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$7.49

$

In Stock, Qty 20+

0

539 10 55-21

Husqvarna 539105521

FRONT TIRE ASSY

$193.99

$

In Stock, Qty 14

0

539 10 14-74

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.99

$

In Stock, Qty 20+

0

539 10 25-43

Husqvarna 539102543

TAPERED ROLLER BRG

$23.99

$

In Stock, Qty 5

0

539 10 55-24

Husqvarna 539105524

SEAL

$11.99

$

In Stock, Qty 7

0

539 10 58-95

Husqvarna 539105895

XP CASTOR ASSY

$478.99

$

In Stock, only 1 left!

0

539 10 55-25

Husqvarna 539105525

TAPERED BEARING W/RACE

Note: TAPERED BEARING NOT SHOWN

$17.99

$

In Stock, only 3 left!

0

539 10 55-18

Husqvarna 539105518

AXLE SPACER

$10.99

$

In Stock, Qty 18

0

539 10 55-22

Husqvarna 539105522

TIRE - SMOOTH 13X6.50-6

$119.99

$

Usually ships in 3-10 days

0

539 10 28-52

Husqvarna 539102852

NUT 1"C HEX SLOTTED
(Superseded to 596241501)

$14.99

$

In Stock, only 3 left!

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 10 59-82

Husqvarna 539105982

CASTOR YOKE ORANGE

$

$

Not available

539 10 28-51

Husqvarna 539102851

SEAL

$8.49

$

In Stock, Qty 18

0

539 10 33-00

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.99

$

Usually ships in 3-10 days

0

539 10 55-17

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5
(Superseded to 594946501)

$7.49

$

In Stock, Qty 7

0

539 10 28-89

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available
