LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2006-04) PARKING BRAKE Parts Diagram

Zero-Turn Mower

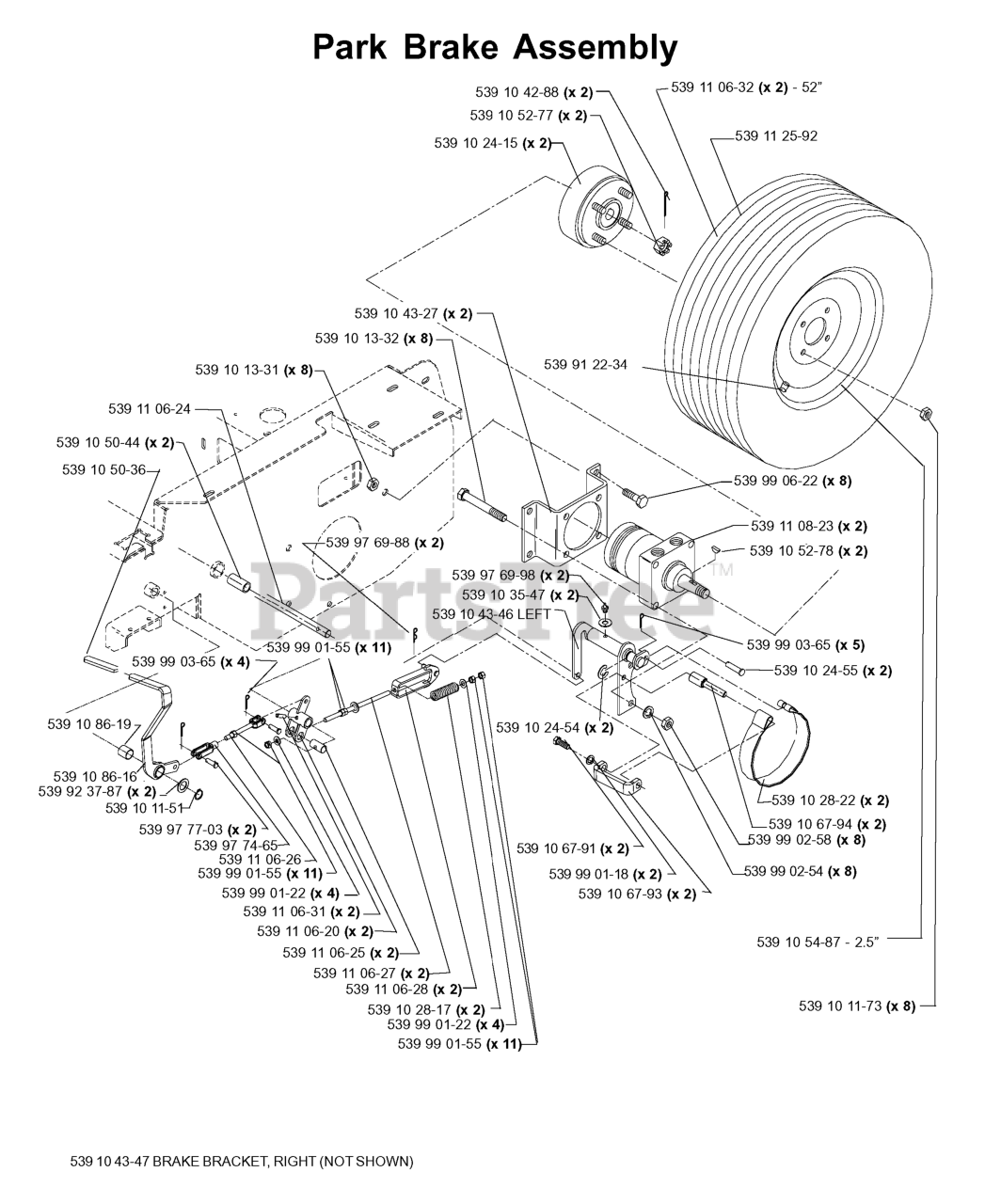

PARKING BRAKE Parts Diagram

  • Title

539 10 50-36

Husqvarna 539105036

GRIP, PARK BRAKE

$6.49

$

In Stock, only 1 left!

0

539 10 86-19

Husqvarna 539108619

BUSHING

$3.99

$

Usually ships in 3-10 days

0

539 10 67-91

Husqvarna 539106791

HEX BOLT 3/8 X 1"

$

$

Not available

539 10 43-47

Husqvarna 539104347

RT.BRAKE WLDMT

Note: BRAKE BRACKET, RIGHT (NOT SHOWN)

$66.99

$

Usually ships in 3-10 days

0

539 11 06-26

Husqvarna 539110626

YOKE W/ SHAFT

$

$

Not available

539 10 67-94

Husqvarna 539106794

BRAKE BAND PIVOT

$46.99

$

Usually ships in 3-10 days

0

539 10 86-16

Husqvarna 539108616

BRAKE LEVER WLDMT

$54.99

$

Usually ships in 3-10 days

0

539 10 11-73

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

539 97 74-65

Husqvarna 539977465

YOKE-3/8-24 PLTD

$34.99

$

Usually ships in 3-10 days

0

539 10 24-55

Husqvarna 539102455

CLEVIS PIN, 3/8 X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

539 11 06-32

Husqvarna 539110632

TIRE 24X12-12 W/1" NEG OFFSET

Note: 52

$364.99

$

Usually ships in 3-10 days

0

539 11 06-24

Husqvarna 539110624

SHAFT

$34.99

$

Usually ships in 3-10 days

0

539 10 35-47

Husqvarna 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

539 99 01-55

Husqvarna 539990155

NUT 3/8F

$4.99

$

In Stock, Qty 16

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$8.99

$

In Stock, Qty 20+

0

539 10 54-87

Husqvarna 539105487

12"RIM 2.5" NEG OFFSET 8.5" W

Note: 2.5

$193.99

$

Usually ships in 3-10 days

0

539 10 67-93

Husqvarna 539106793

BRAKE SUPPORT BRACKET

$

$

Not available

539 10 52-77

Husqvarna 539105277

CASTLE-NUT

$10.99

$

Usually ships in 3-10 days

0

539 97 77-03

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$5.99

$

In Stock, Qty 9

0

539 11 25-92

Husqvarna 539112592

WHEEL/TIRE.ASM.23X9.5-12.GREY

$

$

Not available

539 10 43-46

Husqvarna 539104346

LT.BRAKE WLDMT

Note: LEFT

$145.99

$

Usually ships in 3-10 days

0

539 10 42-88

Husqvarna 539104288

PIN COTTER 4MM X 45MM

$3.99

$

Usually ships in 3-10 days

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$8.99

$

In Stock, Qty 20+

0

539 97 69-88

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

539 10 28-17

Husqvarna 539102817

COMPRESSION SPRING

$

$

Not available

539 11 06-27

Husqvarna 539110627

BRAKE ROD

$14.99

$

Usually ships in 3-10 days

0

539 99 01-18

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

539 10 52-78

Husqvarna 539105278

WOODRUFF KEY

$4.99

$

Usually ships in 3-10 days

0

539 10 11-51

Husqvarna 539101151

RETAINING RING, 7/8"

$

$

Not available

539 99 06-22

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

539 10 24-15

Husqvarna 539102415

HUB W/BRAKE DRUM

$

$

Not available

539 10 13-32

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

539 10 50-44

Husqvarna 539105044

BRONZE BEARING

$6.49

$

Usually ships in 3-10 days

0

539 11 06-25

Husqvarna 539110625

TRUNION

$5.99

$

Usually ships in 3-10 days

0

539 11 06-28

Husqvarna 539110628

BRAKE YOKE WLDMT

$23.99

$

Usually ships in 3-10 days

0

539 99 01-22

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

539 10 28-22

Husqvarna 539102822

BRAKE BAND

$

$

Not available

539 11 08-23

Husqvarna 539110823

TL15 WHEEL MOTOR

$1367.99

$

Usually ships in 3-10 days

0

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 11 06-20

Husqvarna 539110620

BRAKE BELLCRANK

$54.99

$

Usually ships in 3-10 days

0

539 92 37-87

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0

539 10 24-54

Husqvarna 539102454

E RING 3/4

$3.99

$

Usually ships in 3-10 days

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 91 22-34

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

539 99 02-58

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 12

0

539 10 43-27

Husqvarna 539104327

MOTOR STANDOFF - PAINTED

$84.99

$

Usually ships in 3-10 days

0

539 11 06-31

Husqvarna 539110631

5/16 DIA ROLL PIN

$3.99

$

In Stock, Qty 16

0

539 99 02-54

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$4.99

$

Usually ships in 3-10 days

0
