LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2009-06) Engine Plate Parts Diagram

Zero-Turn Mower

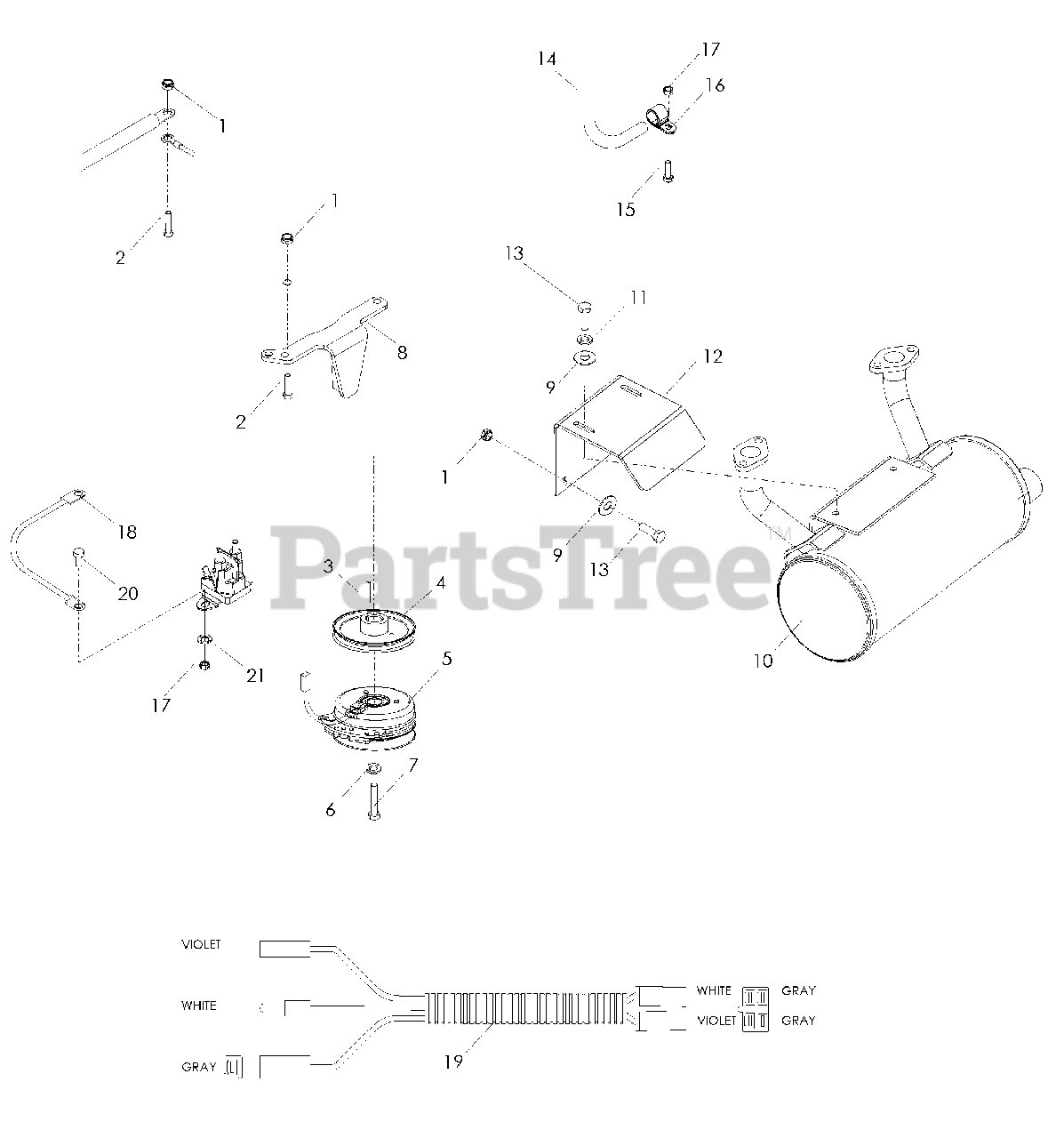

Engine Plate Parts Diagram

  • Title

1

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 539990669

Hcs 5/16 x 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

3

Husqvarna 539100152

Key

$3.99

$

In Stock, Qty 5

0

4

Husqvarna 539106057

Pulley

$

$

Not available

5

Husqvarna 539105406

Clutch

$

$

Not available

6

Husqvarna 539990247

Washer 7/16 Lock

$

$

Not available

7

Husqvarna 539991120

Hcs 7/16 x 2 1/2

$6.49

$

In Stock, Qty 11

0

8

Husqvarna 510201702

Clutch Tie Down

$66.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990692

Washer 5/16 Std Flt
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 539105897

Muffler

$424.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990187

Washer 5/16 Lock
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539111093

Bracket, Muffler

$36.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990209

Hcs 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539107937

Oil Drain Hose

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990580

Hcs 1/4-20 x 3/4

$3.99

$

In Stock, only 4 left!

0

16

Husqvarna 539102685

Clamp

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990761

Nut 1/4-20 Cntrlock

$4.99

$

In Stock, only 4 left!

0

18

Husqvarna 539105409

Ground Wire

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539104415

Pigtail

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990072

Hcs 1/4-20 x 5/8

$3.99

$

In Stock, only 3 left!

0

21

Husqvarna 539990053

Washer 1/4 Int Tooth

$3.99

$

In Stock, only 3 left!

0
