LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2009-06) Hydraulic Pump-Motor Parts Diagram

Zero-Turn Mower

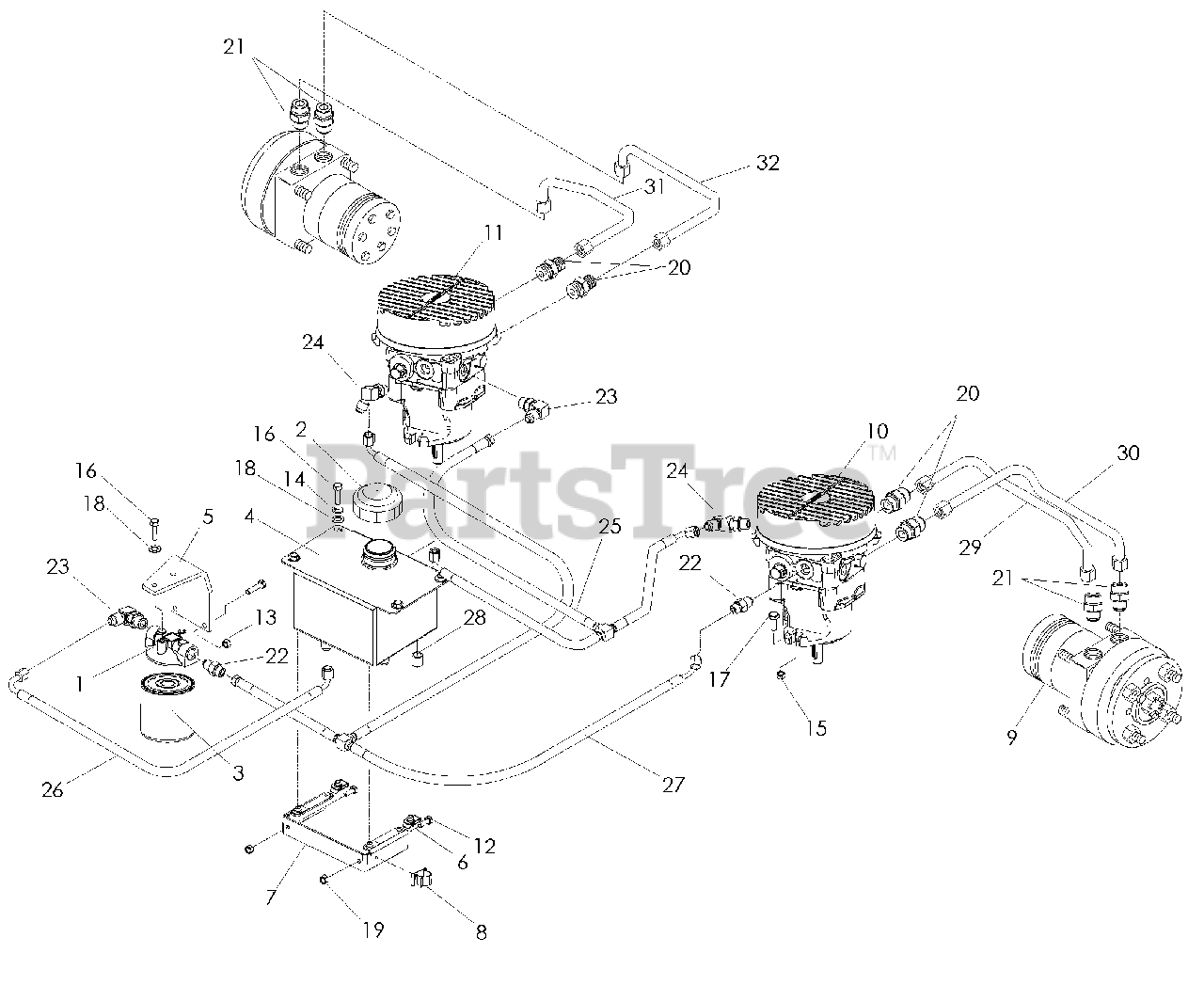

Hydraulic Pump-Motor Parts Diagram

  • Title

1

Husqvarna 539101165

Filter Head

$46.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101202

Cap, Hydro Tank

$24.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102606

Filter

$44.99

$

In Stock, Qty 5

0

4

Husqvarna 539105024

Oil Tank

$303.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106933

Bracket, Filter

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539110813

Retainer 1/4-20 U-Type

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539110814

Mount, Tank

$18.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110815

Wire Clip Push-Mount

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 539110823

Ti15 Wheel Motor

$1091.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539132142

Pump 10Cc W/Fan Lt

$1942.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539132143

Pump 10Cc W/Fan Rt

$1942.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976934

Hcs 5/16-18 X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539976978

Nut 1/4-20 Hex Nyloc
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990052

Washer 1/4 Split Lock

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990546

Nut 3/8-16 Hex Ctr Lk

$

$

Not available

16

Husqvarna 539990580

Hcs 1/4-20 X 3/4

$3.99

$

In Stock, only 4 left!

0

17

Husqvarna 539990582

Hcs 3/8-16 X 1 Whizlk

$

$

Not available

18

Husqvarna 539990598

Washer 1/4 Flat

$

$

Not available

19

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539101237

Fitting, Straight

$12.99

$

In Stock, only 3 left!

0

21

Husqvarna 539102396

Fitting, Straight

$

$

Not available

22

Husqvarna 539113782

Fitting, Straight

$7.49

$

In Stock, only 3 left!

0

23

Husqvarna 539101238

Fitting, Elbow

$15.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539132316

Fitting, Elbow

$12.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539132290

T" Assem, Return

$

$

Not available

26

Husqvarna 539132288

Hose, Tank
(Superseded to 539132287)

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539132289

T" Assem, Supply

$

$

Not available

28

Husqvarna 539105168

Cap

$3.99

$

In Stock, only 4 left!

0

29

Husqvarna 539132284

Hydraulic Line

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539132285

Hydraulic Line

$36.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539132286

Hydraulic Line

$36.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539132287

Hydraulic Line

$34.99

$

Usually ships in 3-10 days

0
