LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2009-06) Ignition System Parts Diagram

Zero-Turn Mower

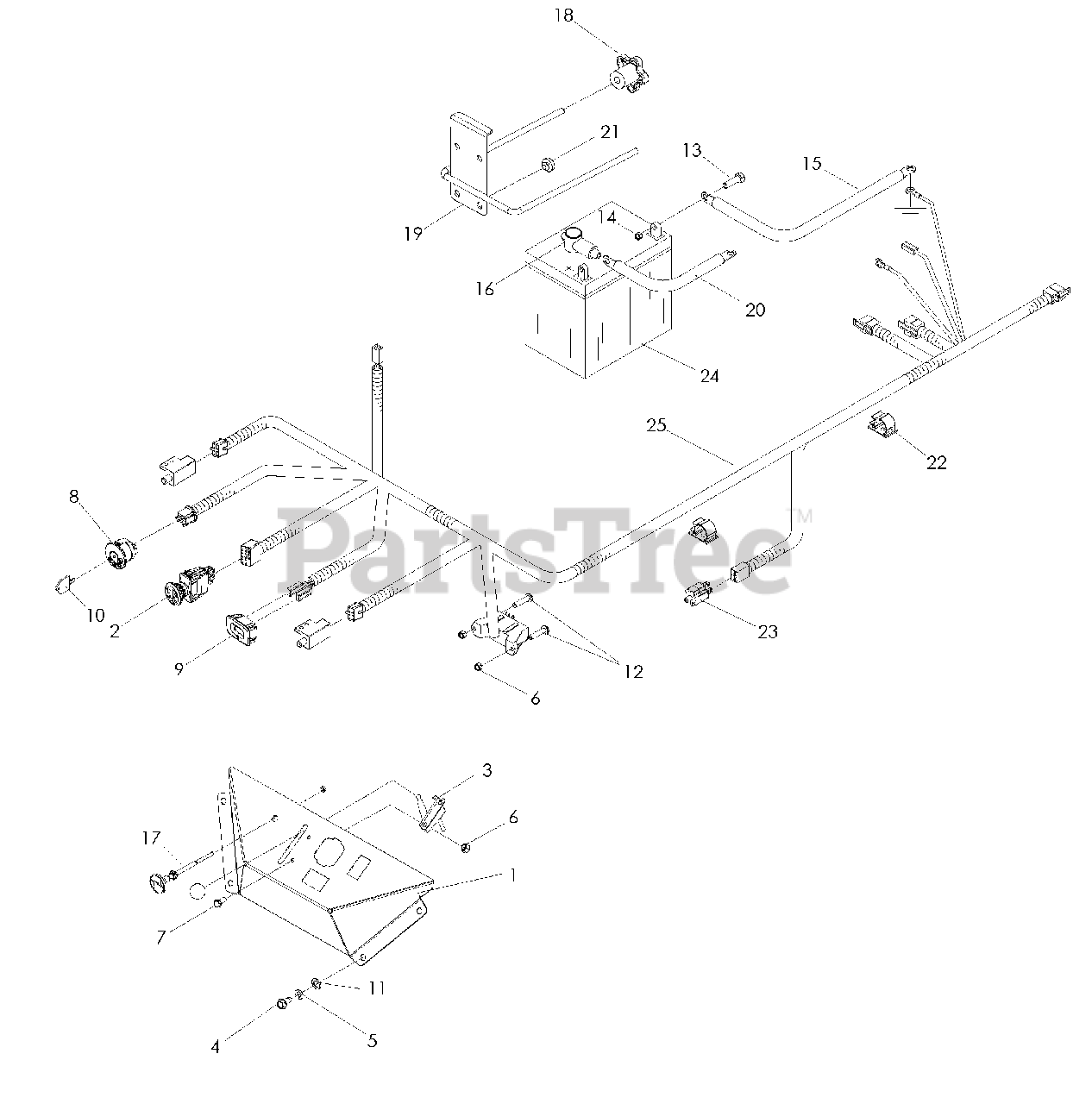

Ignition System Parts Diagram

  • Title

1

Husqvarna 539110953

Console

$

$

Not available

2

Husqvarna 539131627

Switch, Pto 10 Amp
(Superseded to 597520401)

$100.99

$

In Stock, Qty 13

0

3

Husqvarna 539102732

Cable, Throttle

$

$

Not available

4

Husqvarna 539990362

Screw 1/4-20 x 5/8

$4.99

$

In Stock, Qty 12

0

5

Husqvarna 539990052

Washer 1/4 Split Lock

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976977

Nut #10-24 Hex Nyloc

$

$

Not available

7

Husqvarna 539990411

Hcs #10-24 x 1/2

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539107541

Switch, Ignition
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

9

Husqvarna 539110074

Hour Meter
(Superseded to 576179401)

$34.99

$

In Stock, Qty 9

0

10

Husqvarna 539107544

Key, Ignition
(Superseded to 532140401)

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 539990598

Washer 1/4 Flat

$

$

Not available

12

Husqvarna 539102617

Screw #10-24 x 7/8 Slt Hd

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 539976934

Hcs 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539102758

Cable, Negative

$15.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102759

Insulator, Battery

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 539130208

Control, Choke
(Superseded to 539109954)

$35.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539105169

Knob

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539105728

Hold Down, Battery

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539104974

Cable, Positive /

$

$

Not available

21

Husqvarna 539102587

Bumper

$4.99

$

In Stock, Qty 17

0

22

Husqvarna 539110815

Wire Clip, Push-Mount

$3.49

$

In Stock, only 1 left!

0

23

Husqvarna 539113792

Switch, Brake

$12.99

$

In Stock, Qty 19

0

24

Husqvarna 539102436

Battery, Dry
(Superseded to 579411601)

$

$

Not available

25

Husqvarna 539113791

Harness

$

$

Not available
