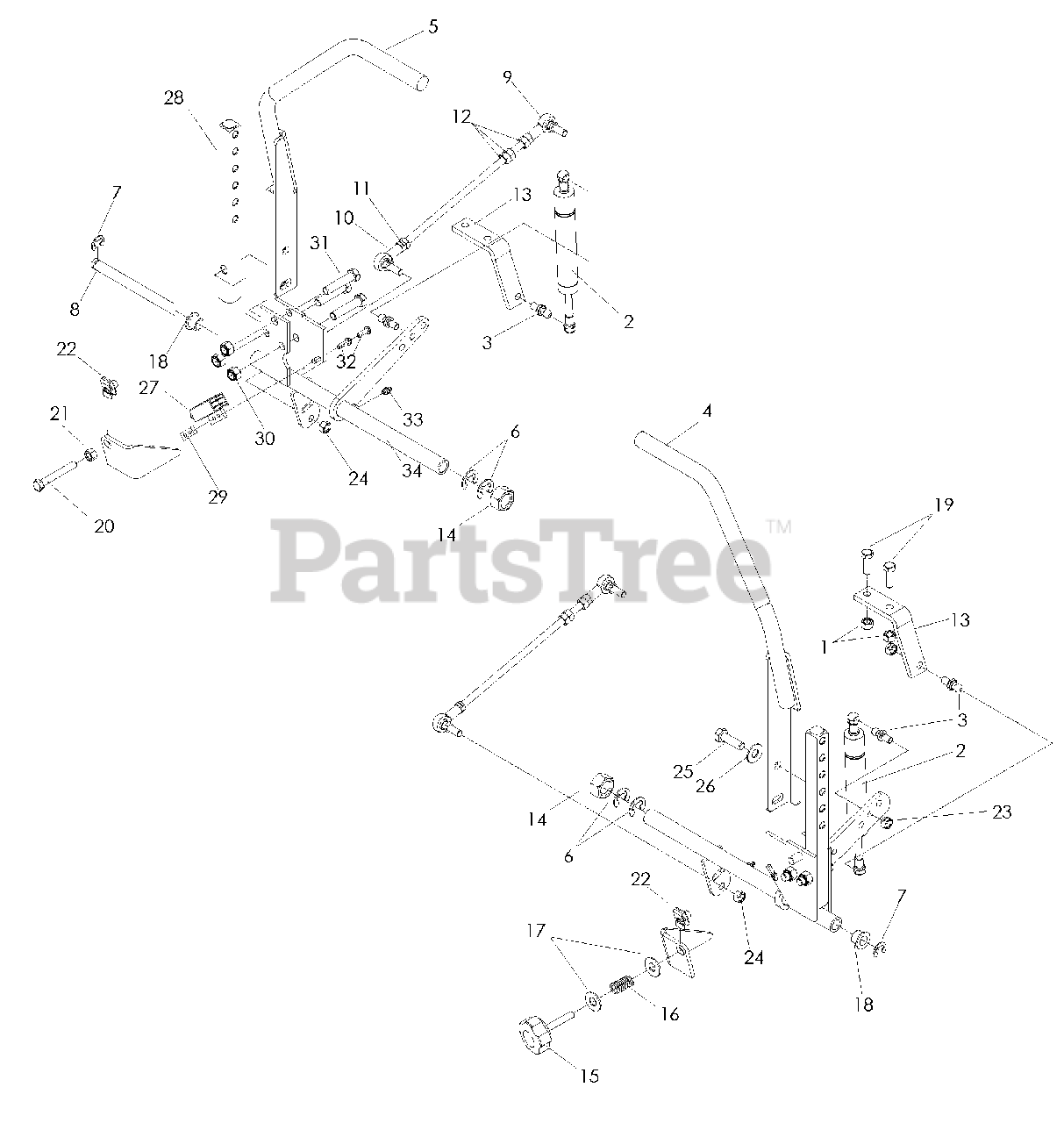

LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2009-06) Steering Parts Diagram

Zero-Turn Mower

Steering Parts Diagram

  • Title

1

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 539131932

Dampener

$96.99

$

In Stock, only 1 left!

0

3

Husqvarna 539110607

Stud, 10Mm Ball

$

$

Not available

4

Husqvarna 539131622

Control Wldmt Lt

$

$

Not available

5

Husqvarna 539131623

Control Wldmt Rt

$

$

Not available

6

Husqvarna 539105069

E-Ring 5/8

$

$

Not available

7

Husqvarna 539101949

E-Ring 1/2

$

$

Not available

8

Husqvarna 539110833

Control Shaft

$

$

Not available

9

Husqvarna 539110604

Spherical Rod End Lh

$

$

Not available

10

Husqvarna 539110603

Spherical Rod End Rh

$37.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539991073

Nut 5/16-24 Hex Jam Lh
(Superseded to 596584101)

$3.49

$

In Stock, only 2 left!

0

12

Husqvarna 539990223

Nut 5/16-24 Hex

$

$

Not available

13

Husqvarna 539111074

Bracket, Dampener

$

$

Not available

14

Husqvarna 539990820

Nut 3/4-16 Hex

$

$

Not available

15

Husqvarna 539103003

Knob

$

$

Not available

16

Husqvarna 539111039

Spring

$

$

Not available

17

Husqvarna 539990692

Washer 5/16 Std Flt
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539102519

Bushing

$

$

Not available

19

Husqvarna 539990209

Hcs 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539108394

Hcs 5/16-18 x 1 3/4 Tpblt

$

$

Not available

21

Husqvarna 539990196

Nut 5/16-18 Hex

$1.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539104763

Retainer, 5/16-18 U-Type

$4.99

$

In Stock, Qty 7

0

23

Husqvarna 539990184

Nut 5/16-18 Hex Ctrlk

$

$

Not available

24

Husqvarna 539110943

Nut 5/16-24 Nyloc

$

$

Not available

25

Husqvarna 539990563

Hcs 3/8-16 x 1
(Superseded to 596564401)

$4.99

$

In Stock, Qty 7

0

26

Husqvarna 539102593

Washer 3/8 Spring

$3.49

$

In Stock, only 4 left!

0

27

Husqvarna 539101080

Switch, Interlock 2P

$20.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539110638

Arm, Control Shaft

$39.99

$

In Stock, only 1 left!

0

29

Husqvarna 539102678

Tapped Plate

$20.99

$

In Stock, Qty 8

0

30

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 539990730

Hcs 3/8-16 x 1 3/4
(Superseded to 596583901)

$3.49

$

In Stock, Qty 11

0

32

Husqvarna 539976952

Screw 10-24 x .625
(Superseded to 596039001)

$3.49

$

In Stock, only 3 left!

0

33

Husqvarna 539976998

Zerk
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 539130702

Control, Drive, Lt

$

$

Not available

Husqvarna 539130701

Control, Drive, Rt

$

$

Not available
