LZ 250500 V - Lesco Ranger 46" Stand-On Spreader Sprayer Engine Group Parts Diagram

Ranger 46" Stand-On Spreader Sprayer

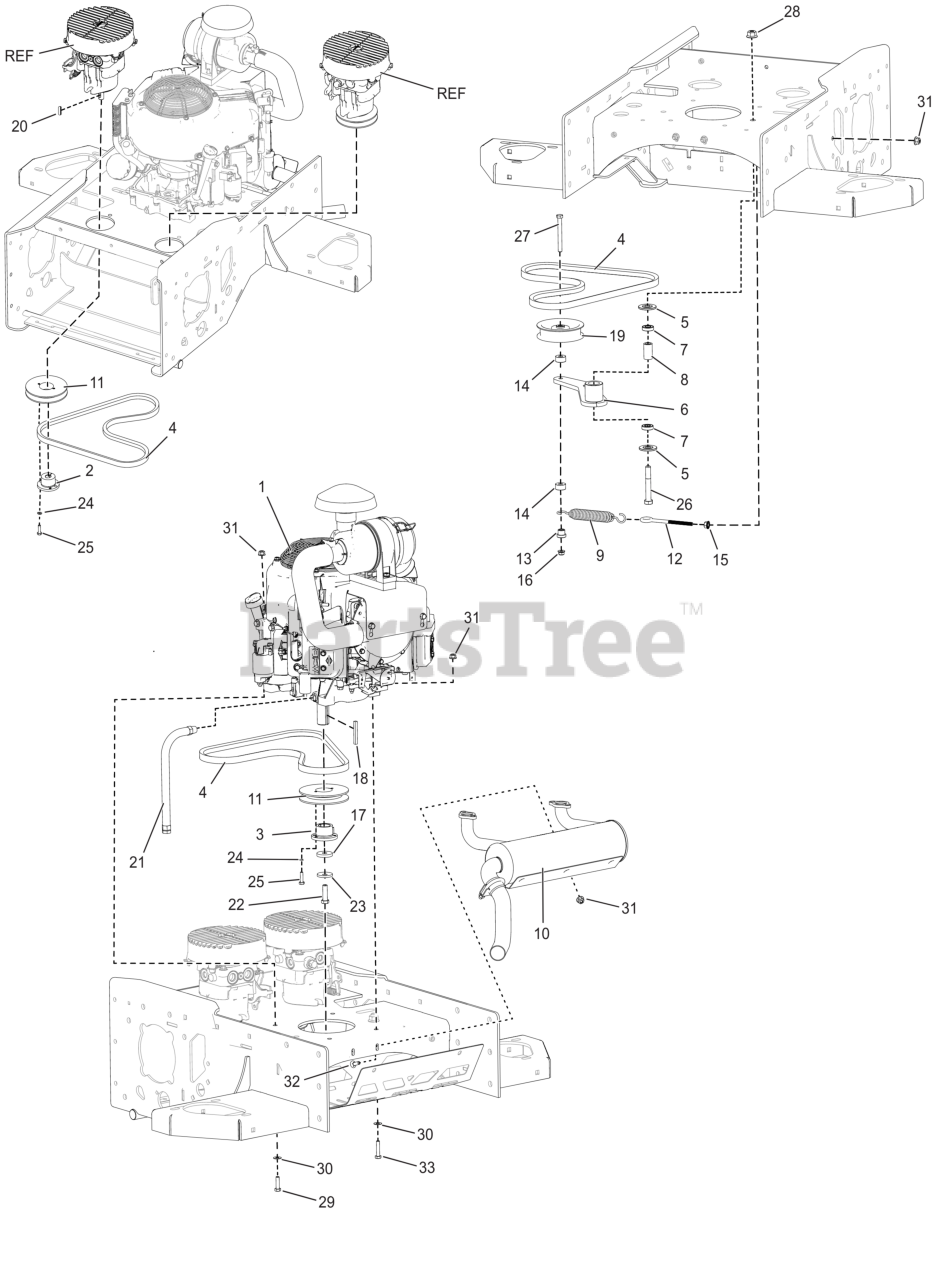

Engine Group Parts Diagram

  • Title

1

5109515

ENGINE, 21 HP VANGUARD, (3857770011G1)

$

$

Not available

2

5109880

5/8 SPLIT TAPER BUSHING, H SERIES

$

$

Not available

3

5109881

1 1/8 SPLIT TAPER BUSHING, H SERIES

$

$

Not available

4

5110046

BELT, 5L EE 52.75"

$

$

Not available

5

5103262

SPACER, IDLER ARM, 1/2, PM

$

$

Not available

6

5422094

WELD, IDLER ARM SWIVEL SPRING

$

$

Not available

7

7078243

BEARING, BALL, AXLE

$

$

Not available

8

5103812

SPACER, .52 X .84 X 1.53, PM

$

$

Not available

9

5022847

SPRING-EXT, 1.04 ODX6.935LGX.148WR, BLK

$

$

Not available

10

5109548

EXHAUST, RANGER 21HP EXHAUST

$

$

Not available

11

5109941

PULLEY, 4.75 O.D. A/B H TYPE BUSHING

$

$

Not available

12

5109967

BOLT, EYE .3125 X 4.25 STEEL

$

$

Not available

13

5023257

BUSHING, .38 X .88 X .73

$

$

Not available

14

5046860

SPACER, .39 X 1.00 X .50, PM, CZ

$

$

Not available

15

5108570

NUT-HEX-FGLK, .3125"-18 SS188

$

$

Not available

16

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

17

5025714

WSHR, FLT .453 ID X 1.5 OD X .25 THK SPC

$

$

Not available

18

5025716

KEY 1/4" SQ X 2.25"

$

$

Not available

19

5110464

PULLEY IDLER 4.00" OD X 3/8" BORE PLAST

$

$

Not available

20

5025713

KEY, FEATHER .188" X .188" X 1.00"

$

$

Not available

21

Briggs & Stratton 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$20.99

$

In Stock, only 2 left!

0

22

5025715

SCREWCAP 7/16-20 x 1 1/2 GR 8 W/PATCH

$

$

Not available

23

5106653

WSHR-STL, BLV, .450" X 1.500" X .172" MZ

$

$

Not available

24

5025718

WASHER LOCK 1/4" S/T MED

$

$

Not available

25

5025010X8

BOLT, 1/4-20 X 1" GD5 CZ

$

$

Not available

26

5107686

SCR-CAP, HEX .500"-13 X 3.500" SS188

$

$

Not available

27

5025726

SCR-CAP, HEX .375"-16 X 4.00 SS188

$

$

Not available

28

5107637

NUT-HEX-NYLK, FLG .500"-13 SS188

$

$

Not available

29

5106755

SCR-CAP, HEX .3125"-18 X 1.500" SS188

$

$

Not available

30

5106009

WSHR-STL, FLT .343" X .750" X .050" SPC SS188

$

$

Not available

31

5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$

$

Not available

32

5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$

$

Not available

33

5106293

SCR-CAP, HEX .3125"-18 X 1.750" SS188

$

$

Not available

REF

SEE FOOTNOTE

SEE CONTEXT

Note: SEE TRANSMISSION GROUPSEE TRANSMISSION GROUP

$

$

Not available
