LZ 250500 V - Lesco Ranger 46" Stand-On Spreader Sprayer Front Axle Parts Diagram

Ranger 46" Stand-On Spreader Sprayer

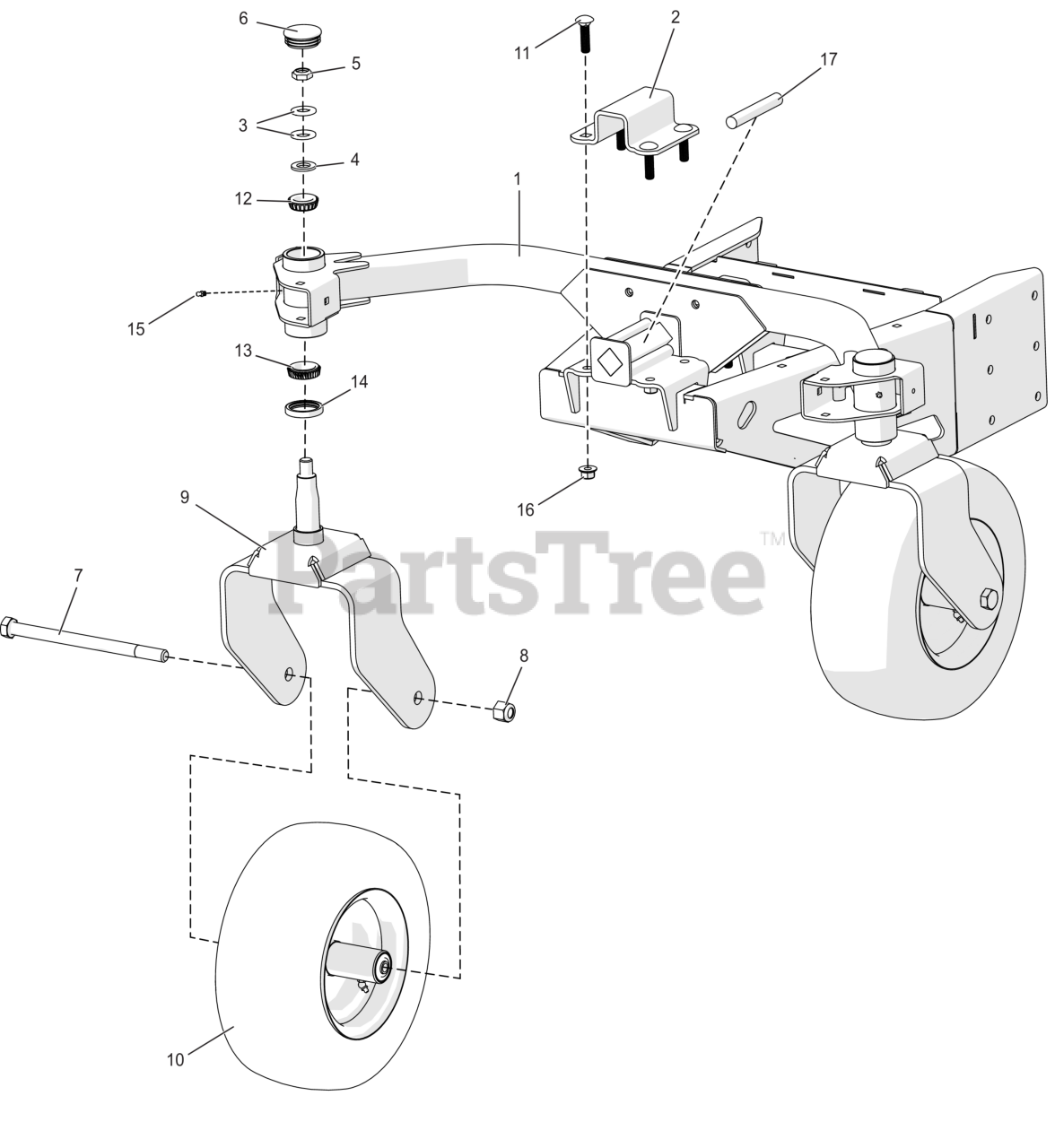

Front Axle Parts Diagram

  • Title

1

Briggs & Stratton 5421852

WELD, AXLE 48 WIDE

$2771.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 5421189

PLATE, PIVOT HAT

$92.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 5025449

WASHER, BELLEVILLE - 1.500 X .755

$4.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 5025160

WASHER, 3/4 SAE

$4.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK

$3.49

$

In Stock, Qty 20+

0

6

Briggs & Stratton 5100882

CAP, CASTER SPINDLE, LOW PROFILE

$

$

Not available

7

Briggs & Stratton 5109950

SCR-CAP, HEX, .750"-10 X 11.00" SS188

$69.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5107677

NUT-HEX-NYLK, .750"-10 SS188

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 5422113

WELD, CASTER FORK, 16X8-5 WHEEL

$649.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5109893

WHEEL/TIRE 16X6.5-8 SMOOTH

$291.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5025700

BLT-RDHDSQNK, .500"-13 X 2.000" SS188

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5100839

BEARING, TAPER ROLLER, 1.1417

$22.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 5109949

BEARING, TAPERED ROLLER 35MM BORE

$129.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 5109581

SEAL, 1.750 SHAFT X 2.254 OD X .359 THK

$46.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 5106119

ZERK, GREASE .250"-28 SS
(Superseded to 84009476)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5107637

NUT-HEX-NYLK, FLG .500"-13 SS188

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5107356

CORD, RUBBER

$5.49

$

In Stock, only 4 left!

0
