LZ 250500 V - Lesco Ranger 46" Stand-On Spreader Sprayer Main Frame Group (1) Parts Diagram

Ranger 46" Stand-On Spreader Sprayer

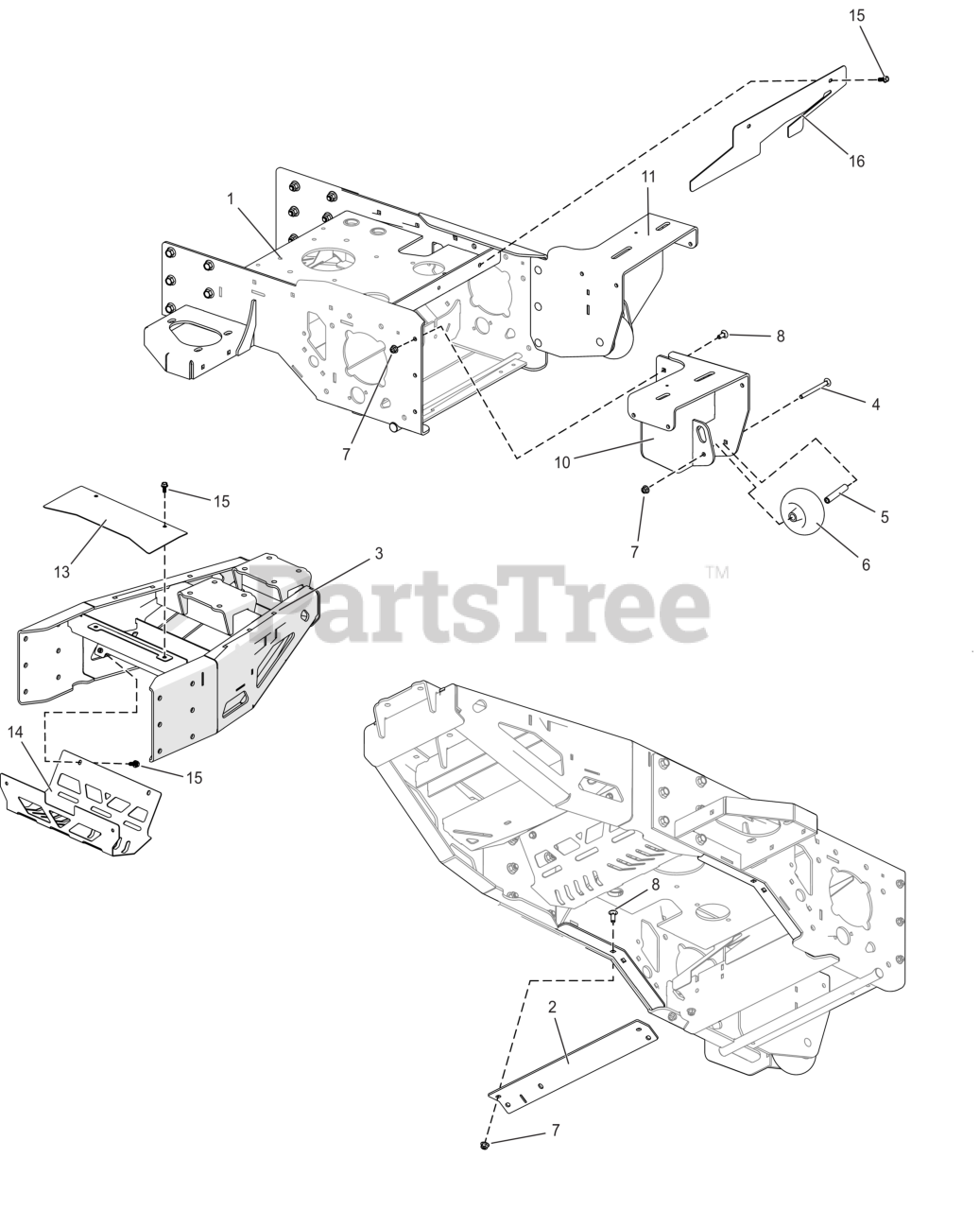

Main Frame Group (1) Parts Diagram

  • Title

1

5422971

WELD, RANGER 46 REAR FRAME WELDMENT

$

$

Not available

2

5421250

BRKT, LOWER FRAME SUPPORT

$

$

Not available

3

5421266

WELD, FRAME FRONT

$

$

Not available

4

5107681

BLT-RDHDSQNK, .375"-16 X 4.500" SS188

$

$

Not available

5

5107650

SPCR-SS, 303 .375" X .625" X 3.375"

$

$

Not available

6

5105521

WHEEL, ANTI SCALP, 5"

$

$

Not available

7

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

8

5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$

$

Not available

10

5421563

WELD, LH BUMPER

$

$

Not available

11

5421564

WELD, RH BUMPER

$

$

Not available

13

5422137

BRKT, UPPER EXHAUST HEAT SHIELD

$

$

Not available

14

5422138

BRKT, LOWER EXHAUST HEAT SHIELD

$

$

Not available

15

5108284

SCR-CAP, HSWH .313"-18 X .750" SS188

$

$

Not available

16

5421272

PLATE, HEAT DEFLECTOR

$

$

Not available
