LZ 250500 V - Lesco Ranger 46" Stand-On Spreader Sprayer Parking Brake Parts Diagram

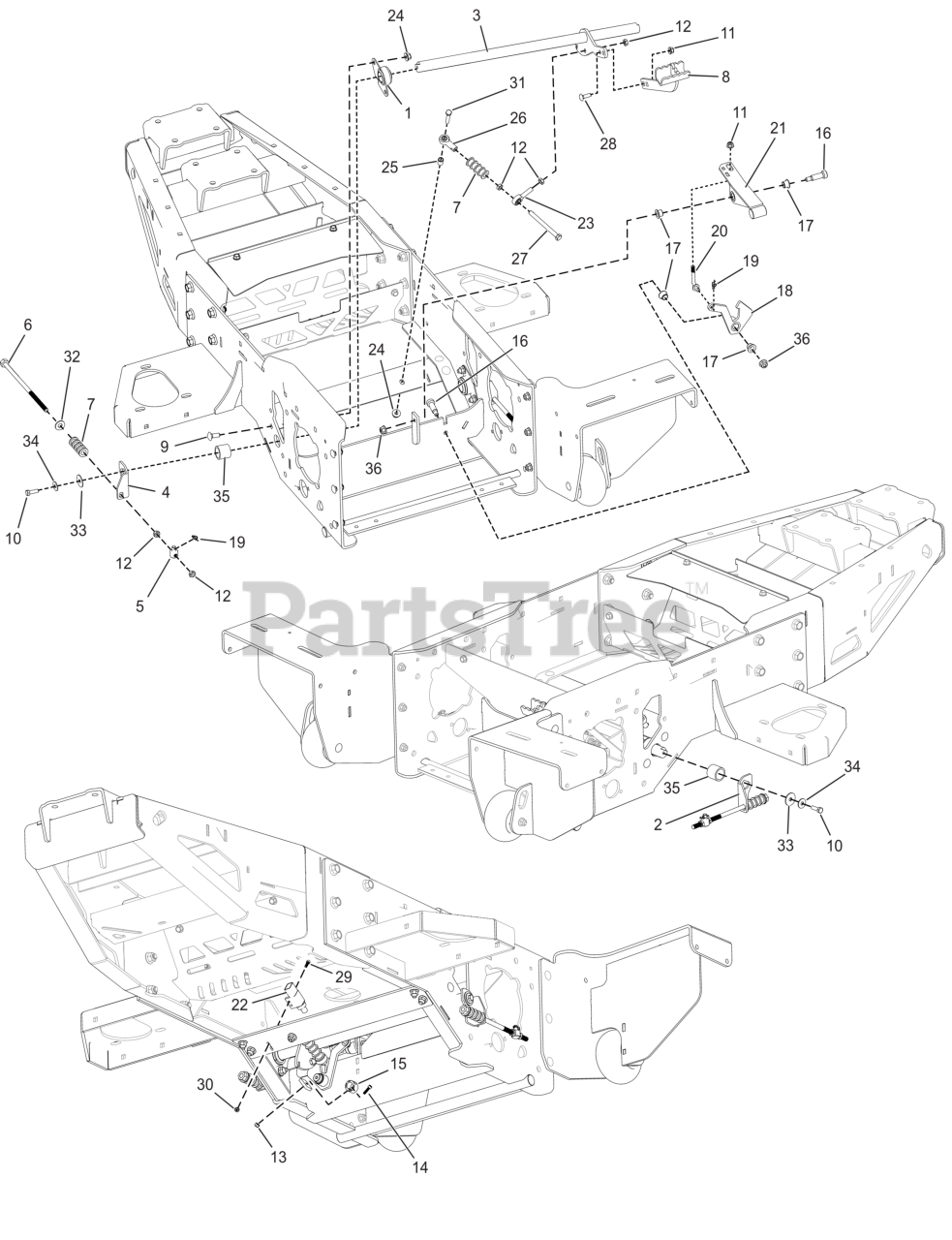

Ranger 46" Stand-On Spreader Sprayer

Parking Brake Parts Diagram

  • Title

1

5107633

BRG, BRZ 1.00"ID X 3.125" CTR SIDE FLG

$

$

Not available

2

5422031

BRKT, RH PARK BRAKE ACTUATOR

$

$

Not available

3

5421552

WELD, PARKING BRAKE SHAFT

$

$

Not available

4

5422030

BRKT, LH PARK BRAKE ACTUATOR

$

$

Not available

5

5107614

SWIVEL, Ø.3125-24, Ø.370 POST SS

$

$

Not available

6

5107615

ROD, .375"-24 X 3.50" - 9.53" OAL SS

$

$

Not available

7

5108206

SPRG, ELA .500" X 2.26", 33#/IN

$

$

Not available

8

5422041

WELD, FOOT PEDAL

$

$

Not available

9

5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$

$

Not available

10

5106576

SCR-CAP, HEX .3125"-18 X 1.000" SS188

$

$

Not available

11

5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$

$

Not available

12

5107648

NUT-HEX, JAM .375"-24 SS188

$

$

Not available

13

5105963

NUT-HEX-NYLK, #10-24 SS188

$

$

Not available

14

5107644

SCR-CAP, SH #10-24 X .750" SS188

$

$

Not available

15

5107634

SPRG, BMP .97" X 1.12" 50#PDF

$

$

Not available

16

5107641

BLT-SLDR,SH.50"X1.25",.375"-16X.63"SS188

$

$

Not available

17

5108816

BSHG-FL, .500" X .625" X .500", .875"x .062" IR

$

$

Not available

18

5422043

WELD, FOOT PEDAL CATCH

$

$

Not available

19

5107667

RING, RUE .3125" SS

$

$

Not available

20

5108204

LINK, BRAKE RELEASE

$

$

Not available

21

5422689

WELD, BRAKE RELEASE RANGER

$

$

Not available

22

5108256

SWITCH, PLUNGER, SEALED MOLEX (NO)

$

$

Not available

23

5021124

BALL JOINT, 3/8-24 Male

$

$

Not available

24

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

25

5108345

SPCR-SS, 303 .391" X .500" X .750"

$

$

Not available

26

5021683

BALL JOINT, 3/8-24 FEMALE

$

$

Not available

27

5108845

SCR-CAP, .375"-24 X 4.00" G8 W/ PATCH

$

$

Not available

28

5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$

$

Not available

29

5108132

SCR-CAP, SH #10-24 X .625" SS188

$

$

Not available

30

5108212

NUT-HEX, KEPS #10-24 SS188

$

$

Not available

31

5106581

SCR-CAP, HEX .375"-16 X 2.250" SS188

$

$

Not available

32

5107661

WSHR-SS, FLT .438"X 1.000"X.083" USS

$

$

Not available

33

5107652

WSHR-SS, FLT .348"X1.250"X.065" FEN

$

$

Not available

34

5107642

WSHR-SS, BLV .322"X.938"X.072" 17-7PH

$

$

Not available

35

5423133

SPCR-PVC, 1.049" X 1.315" X 0.625"

$

$

Not available

36

5107643

NUT-HEX-FGLK, .375"-16 SS188

$

$
