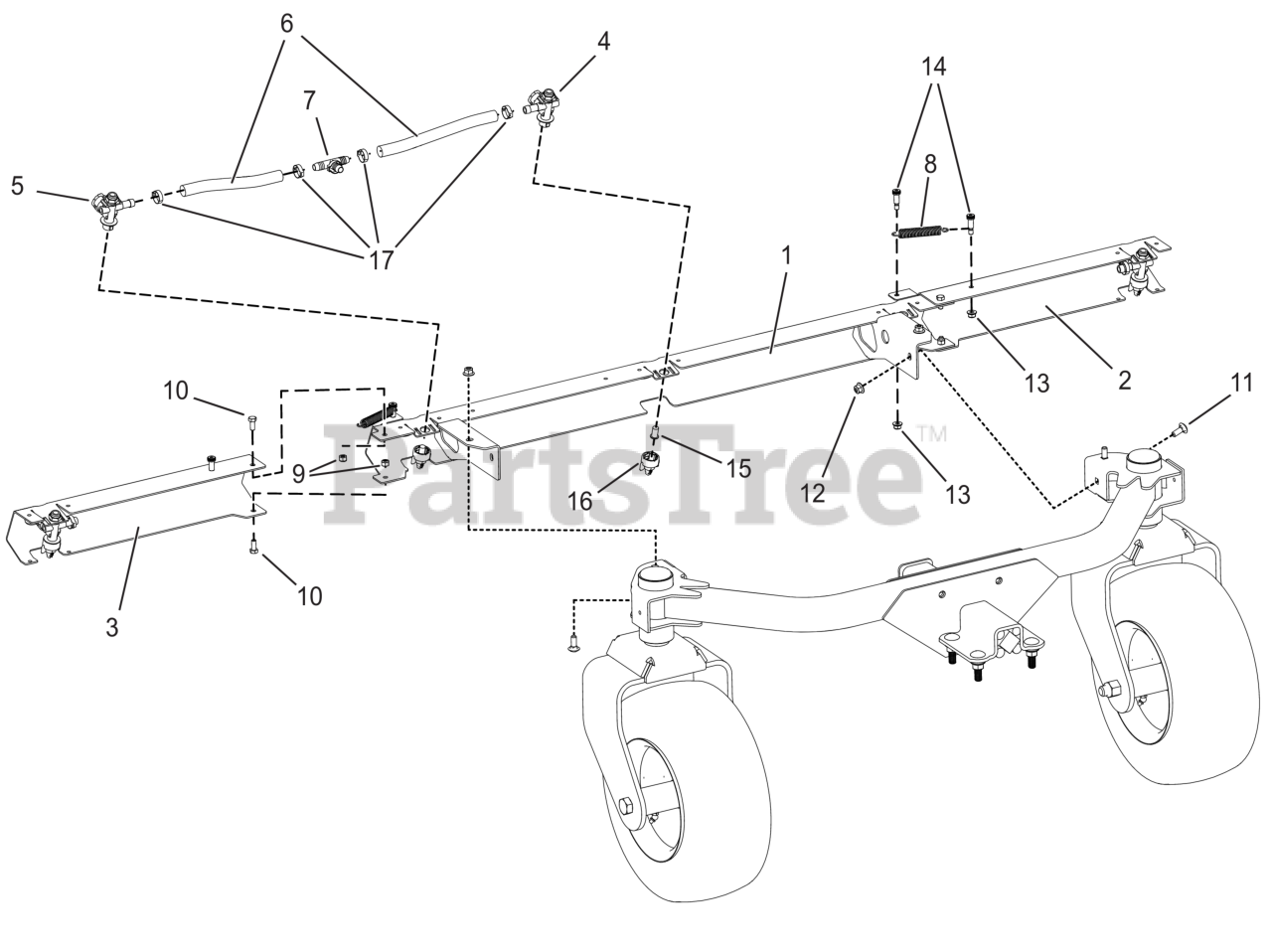

Ranger 46" Stand-On Spreader Sprayer

Spray Bar Group Parts Diagram

  • Title

1

5422671

WELD, CENTER V SPRAY SECTION 46

$

$

Not available

2

5422668

BAR, RIGHT V SPRAY SECTION 46

$

$

Not available

3

5422667

BAR, LEFT V SPRAY SECTION 46

$

$

Not available

4

5106035

DIAPHRAGM CHECK VALVE, LEFT

$

$

Not available

5

5106025

DIAPHRAGM CHECK VALVE, RIGHT

$

$

Not available

6

84008662

HOSE, Chemical

$

$

Not available

7

5106713

FITTING, TEE, 1/2" MPT

$

$

Not available

8

5105972

SPRING, EXTENSION .64" OD X 4.00" LG SS

$

$

Not available

9

5105992

NUT-HEX-NYLK, 0.3125"-18 SS188

$

$

Not available

10

5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$

$

Not available

11

5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$

$

Not available

12

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

13

5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$

$

Not available

14

5106712

BLT-SLDR, SH .375" X 0.750", .3125"-18 X.500" G8ZY

$

$

Not available

15

5105904

STRAINER, 50 MESH, POLYPROPYLENE TIP

$

$

Not available

16

84008663

TIP, Spray

$

$

Not available

17

84008744

CLAMP

$

$

Not available
