LZ 250500 V - Lesco Ranger 46" Stand-On Spreader Sprayer Spray Tank Parts Diagram

Ranger 46" Stand-On Spreader Sprayer

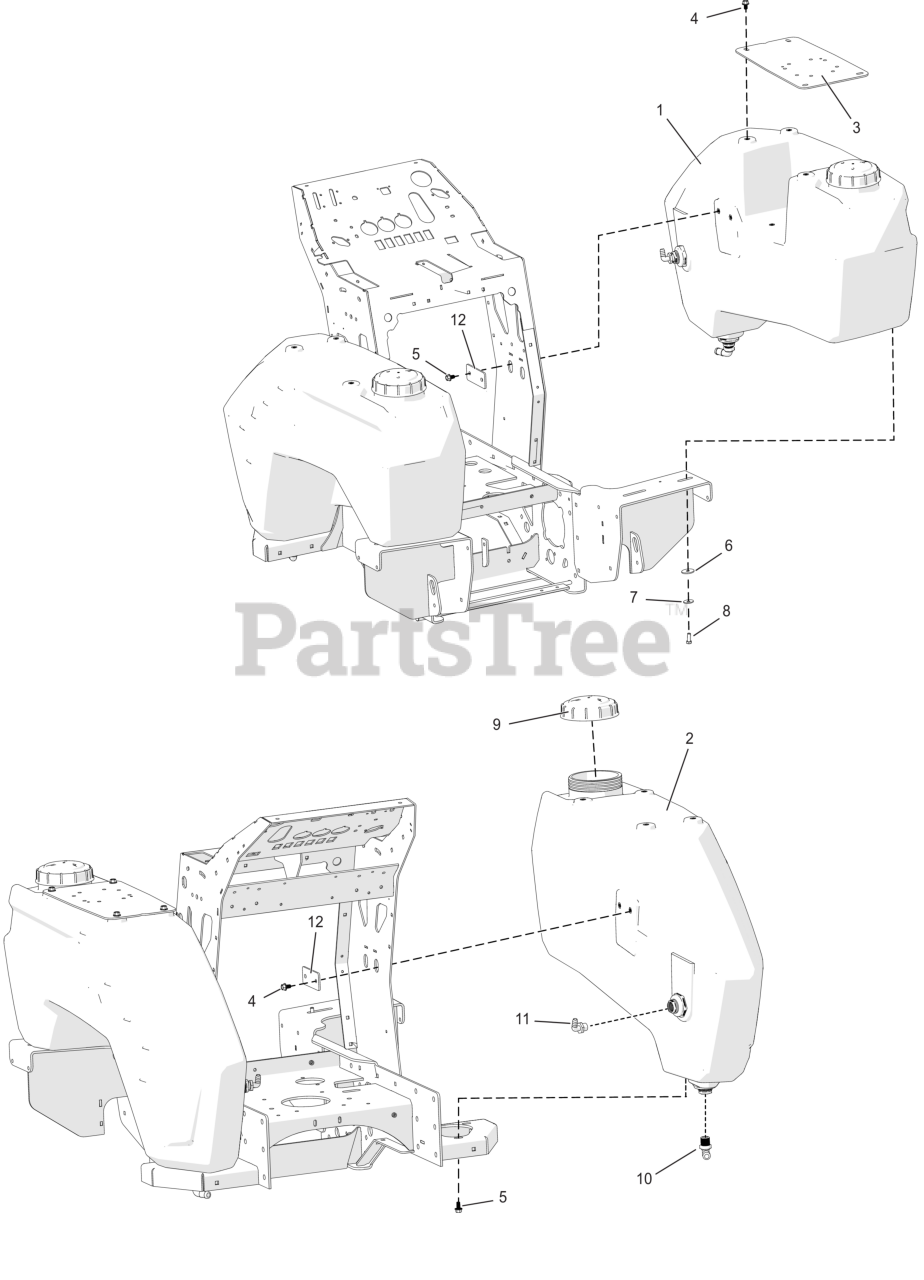

Spray Tank Parts Diagram

  • Title

1

5110053

TANK, 25 GALLON RIGHT

$

$

Not available

2

5110054

TANK, 25 GALLON LEFT

$

$

Not available

3

5421179

PLATE, ACCESSORY MOUNT, 46

$

$

Not available

4

5025704

SCR-CAP, HSWH 0.375"-16 X 0.625" SS188

$

$

Not available

5

5107703

SCR-CAP, HSWH .375"-16 X .750" SS188

$

$

Not available

6

5108608

WSHR-SS, FLT .405"X1.500"X.120" SS188

$

$

Not available

7

5107704

WSHR-SS, BLV .386"X1.063"X.083" 17-7PH

$

$

Not available

8

5025649

SCR-CAP, HEX .375"-16 X 1.000" SS188

$

$

Not available

9

5105985

LID, TANK, SPRAY (G0134)

$

$

Not available

10

5108459

FTG, ELBW 90° 3/4" MNPT - 3/4" HB BPP

$

$

Not available

11

5106667

FITTING, 3/4 MPT - 1/2 BARB, 90 ELBOW

$

$

Not available

12

5422428

PLATE, UPPER TANK MOUNT 25 GALLON

$

$

Not available
