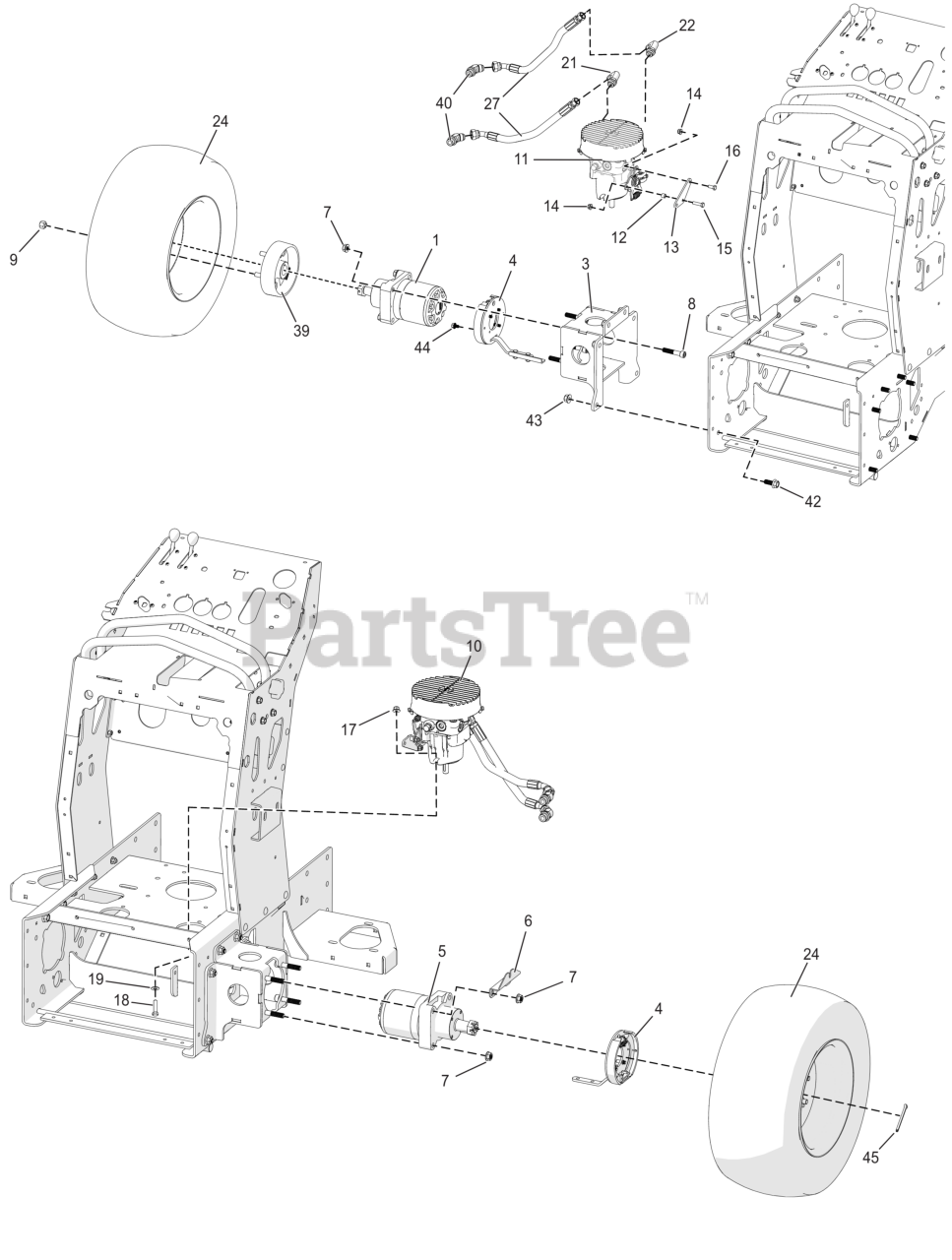

LZ 250500 V - Lesco Ranger 46" Stand-On Spreader Sprayer Transmission Group (1) Parts Diagram

Ranger 46" Stand-On Spreader Sprayer

Transmission Group (1) Parts Diagram

  • Title

1

5109513

MOTOR, TG0335LS080ABDK FLANGE PORT LH

$

$

Not available

3

5423146

WELD, MOTOR POD RANGER 46

$

$

Not available

4

5109518

BRAKE, 6" PARKING DRUM 490164

$

$

Not available

5

5109514

MOTOR, TG0335LS081AAXP FLANGE PORT RH

$

$

Not available

6

5421555

BRKT, SPEED SENSOR

$

$

Not available

7

5025396

NUT, Hex Flange, Nylock, 1/2-13

$

$

Not available

8

5025699

SHCS, 0.5 -13 X 2.5 BLACK OXIDE

$

$

Not available

9

5105964

NUT-LUG, .500"-20 ZP

$

$

Not available

10

5109512

PUMP, 12CI PK-CHCB-GH1G-XLXX RH

$

$

Not available

11

5109511

PUMP, 12CI PK-3KCC-GG1G-XLX LH

$

$

Not available

12

5110391

SPACER 3/8" x 0.5 OD x 0.375 LG

$

$

Not available

13

5421258

BRKT, PUMP CONTROL

$

$

Not available

14

5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$

$

Not available

15

5106233

SCR-CAP, HEX .3125"-18 X 1.250" SS188

$

$

Not available

16

5106024

SCR-CAP, HEX .3125"-18 X .750" SS188

$

$

Not available

17

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

18

5106069

SCR-CAP, HEX .375"-16 X 1.500" SS188

$

$

Not available

19

5106168

WSHR-STL, FLT .406" X .875" X .050" IS SS188

$

$

Not available

21

5109975

FITTING, 6801-08-08

$

$

Not available

22

5109976

FITTING, 6801-L-08-08

$

$

Not available

24

5109776

WHEEL/TIRE 23X10.5-12 +1.75 OFF

$

$

Not available

27

5109547

HOSE, WHEEL MOTOR SUPPLY 4636

$

$

Not available

39

5109550

DRUM, 6" BRAKE 490216

$

$

Not available

40

5109972

FITTING, 7/8 45 DEG, 6802-10-10

$

$

Not available

42

5110055

SCR-CAP, HWHW .500"-13 X 1.250"

$

$

Not available

43

5107637

NUT-HEX-NYLK, FLG .500"-13 SS188

$

$

Not available

44

5108654

SCR-CAP, HSWH .3125"-18 X .500" SS188

$

$

Not available

45

5025721

PIN, COTTER .125 X 2.50 CZ

$

$

Not available
