LZ 250500 V - Lesco Ranger 46" Stand-On Spreader Sprayer Transmission Group (2) Parts Diagram

Ranger 46" Stand-On Spreader Sprayer

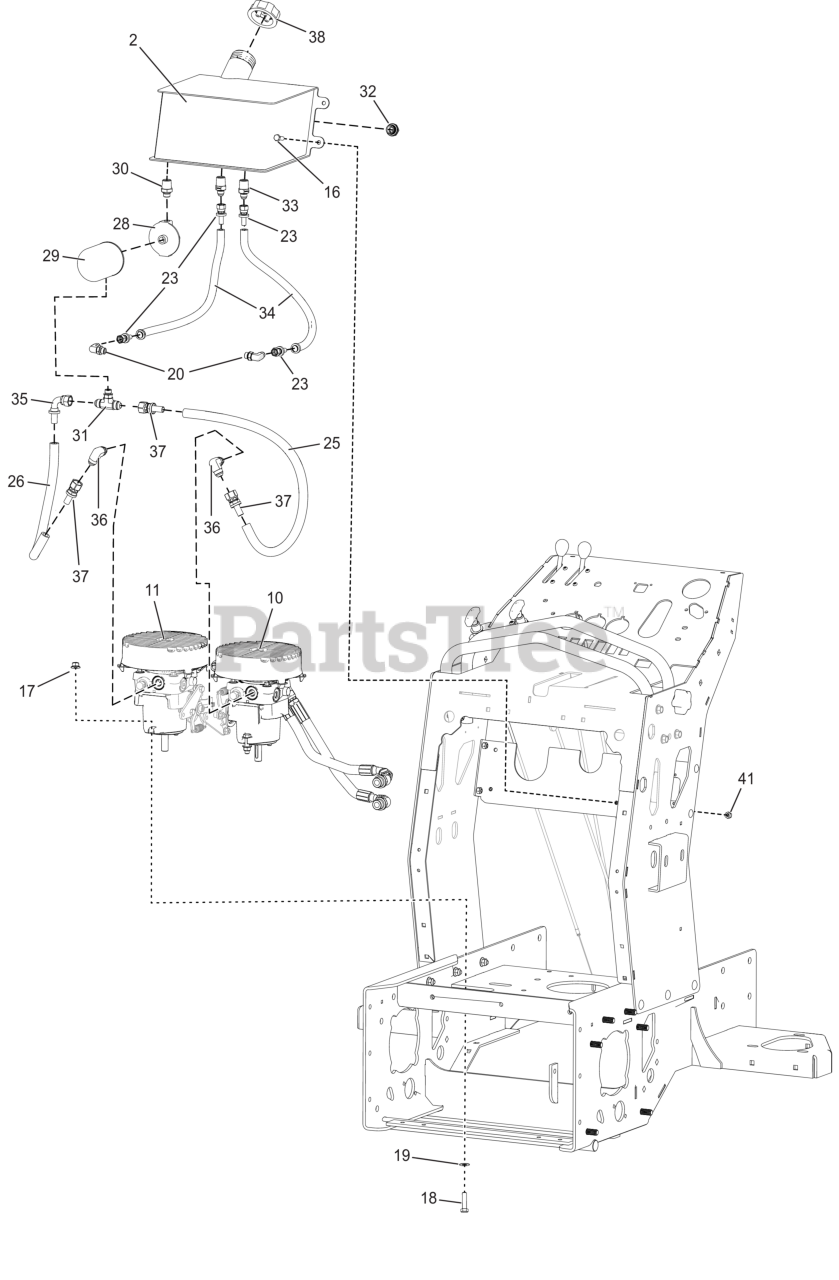

Transmission Group (2) Parts Diagram

  • Title

2

Briggs & Stratton 5110268

RESERVOIR, HYDRAULIC OIL 2.50 GAL. STEEL

$648.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5109512

PUMP, 12CI PK-CHCB-GH1G-XLXX RH

$906.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5109511

PUMP, 12CI PK-3KCC-GG1G-XLX LH

$906.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188
(Superseded to 84009062)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188
(Superseded to 84009876)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 5106069

SCR-CAP, HEX .375"-16 X 1.500" SS188

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5106168

WSHR-STL, FLT .406" X .875" X .050" IS SS188
(Superseded to 84010427)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5109973

FITTING, 6801-06-06

$15.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 5109977

FITTING, 30682-6-6

$7.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 5422292

HOSE, PUSH-LOK 1/2 I.D. X 26.25

$36.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 5422293

HOSE, PUSH-LOK 1/2 I.D. X 15.5

$21.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 5023096

FILTER HEAD, HYDRAULIC

$54.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 1719168

FILTER, OIL

$

$

Not available

30

Briggs & Stratton 5110315

FITTING, 6401-06-08

$33.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 5110394

FITTING, 6803-08-08-06

$44.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 5110505

SIGHT, SHATTER RESISTANT 1/2" NPT

$29.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 5110314

FITTING, 2404-06-08

$6.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 5422295

HOSE, PUSH-LOK 3/8 I.D. X 15.75

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 5109981

FITTING, 33982-8-8

$45.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 5110395

FITTING, 6801-08-06

$15.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 5110396

FITTING, 4311-08-08

$11.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 5110494

CAP, HYDRAULIC KELCH 204846 VENTED

$10.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.99

$

Usually ships in 2-12 days

0
