LZ 250600 V - Lesco Ranger 54" Stand-On Spreader Sprayer Hopper Group Parts Diagram

Ranger 54" Stand-On Spreader Sprayer

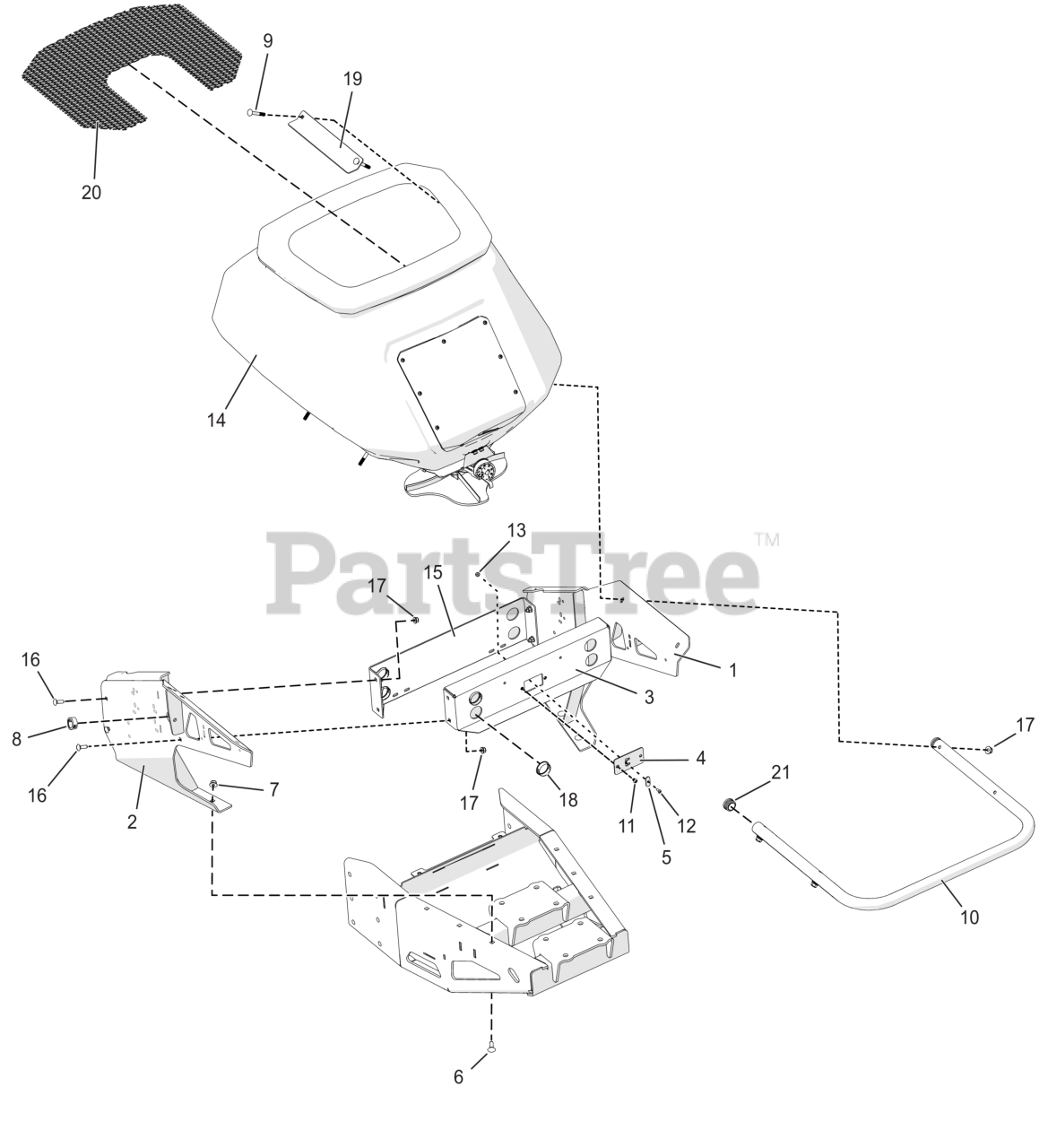

Hopper Group Parts Diagram

  • Title

1

Briggs & Stratton 5421421

WELD, HOPPER MOUNT LH

$839.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 5421422

WELD, HOPPER MOUNT RH

$821.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 5423129

WELD, HOPPER DIVIDER BRACKET

$251.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 5419900

PLATE, HOPPER CABLES
(Superseded to 84011032)

$7.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 5105969

PLATE, CABLE HOLDER
(Superseded to 84009927)

$8.49

$

In Stock, only 1 left!

0

6

Briggs & Stratton 5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188
(Superseded to 84009876)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5108598

BUSHING, SNAP 1" ID

$2.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 5109263

BLT-RDHDSQNK, .3125"-18 X 2.250" SS188

$

$

Not available

10

Briggs & Stratton 5420342

TUBE, MOUNT LIGHT BAR - PAINTED

$38.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5108320

SCR-CAP, SBH .250"-20 X .375" SS188
(Superseded to 84010141)

$2.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5105978

SCR-CAP, BSH #10-24 X .500" SS188
(Superseded to 84009048)

$3.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 5105963

NUT-HEX-NYLK, #10-24 SS188
(Superseded to 5105963FS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 5306896

GROUP, HOPPER LESCO RANGER

$

$

Currently unavailable

15

Briggs & Stratton 5422045

BRKT, FUEL TANK BACK BRACE

$136.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 5110379

BUSHING, SNAP 1.31" ID

$1.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5418973

BRACKET, SCREEN SUPPORT HOPPER

$18.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 84011456

SCREEN, Hopper (MODEL 250 LBS PERF)

$212.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5108817

PLUG TUBE INSERT 1.25" O.D.

$2.49

$

Usually ships in 2-12 days

0
