LZ 250600 V - Lesco Ranger 54" Stand-On Spreader Sprayer Spray Bar Group Parts Diagram

Ranger 54" Stand-On Spreader Sprayer

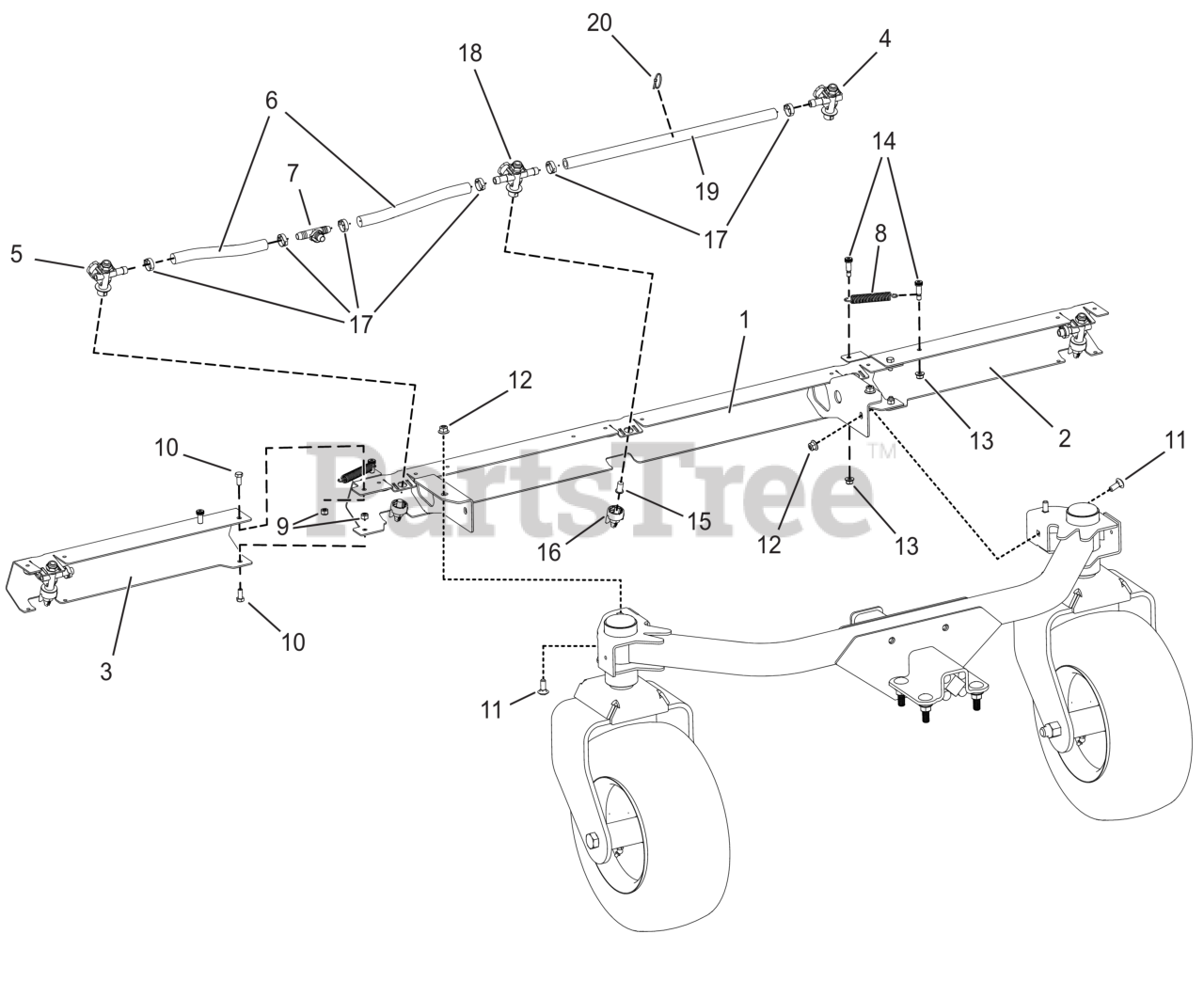

Spray Bar Group Parts Diagram

  • Title

1

Briggs & Stratton 5422670

WELD, CENTER V SPRAY SECTION 54

$518.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 5422663

BAR, RIGHT V SPRAY SECTION 54

$111.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 5422662

BAR, LEFT V SPRAY SECTION 54

$111.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 5106035

DIAPHRAGM CHECK VALVE, LEFT

$27.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 5106025

DIAPHRAGM CHECK VALVE, RIGHT

$31.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 84008662

HOSE, Chemical

$6.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5106713

FITTING, TEE, 1/2" MPT

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5105972

SPRING, EXTENSION .64" OD X 4.00" LG SS
(Superseded to 84010267)

$12.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 5105992

NUT-HEX-NYLK, 0.3125"-18 SS188
(Superseded to 5105992FS)

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5106024

SCR-CAP, HEX .3125"-18 X .750" SS188
(Superseded to 84009062)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188
(Superseded to 84009876)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 5106712

BLT-SLDR, SH .375" X 0.750", .3125"-18 X.500" G8ZY

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 5105904

STRAINER, 50 MESH, POLYPROPYLENE TIP
(Superseded to 84010285)

$5.49

$

In Stock, Qty 7

0

16

Briggs & Stratton 84008663

TIP, Spray

$

$

Currently unavailable

17

Briggs & Stratton 84008744

CLAMP

$

$

Currently unavailable

18

Briggs & Stratton 5109899

DIAPHRAGM CHECK VALVE, CENTER

$13.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5422297

HOSE, CHEM .5" I.D. X 18.5"

$13.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5106297

CABLE TIE, .188" W X 7.50" LNG

$2.99

$

Usually ships in 2-12 days

0
