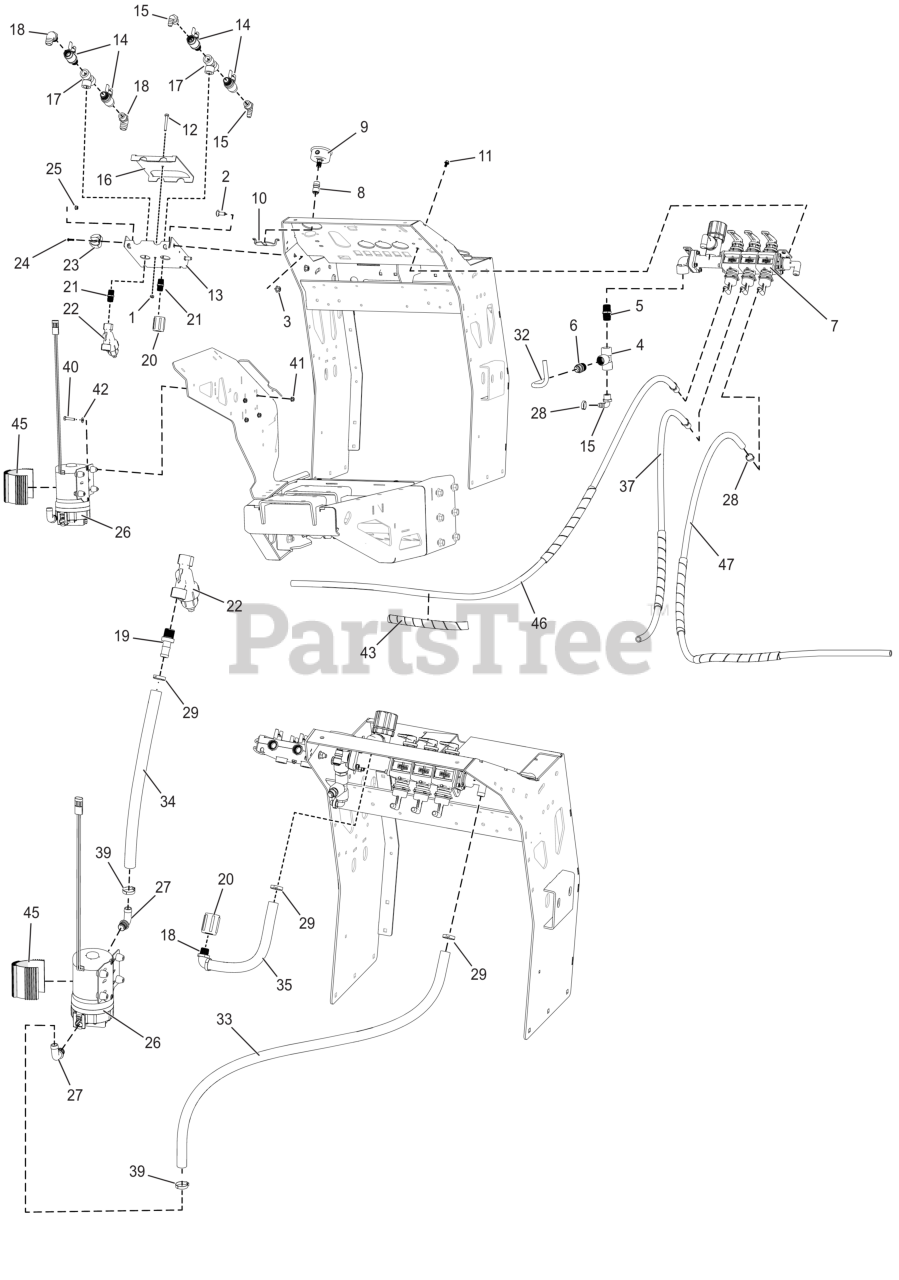

LZ 250600 V - Lesco Ranger 54" Stand-On Spreader Sprayer Spray Valving Group (1) Parts Diagram

Ranger 54" Stand-On Spreader Sprayer

Spray Valving Group (1) Parts Diagram

  • Title

1

Briggs & Stratton 5105915

NUT-HEX-NYLK, .250"-20 TH SS188

$3.99

$

In Stock, only 2 left!

0

1

Briggs & Stratton 5105915

NUT-HEX-NYLK, .250"-20 TH SS188

$3.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188
(Superseded to 84009876)

$3.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 5107638

NUT-HEX-NYLK, FLG .375"-16 SS188
(Superseded to 84009876)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 5109309

FTG, T 1/2" FNPT BPP

$13.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 5109309

FTG, T 1/2" FNPT BPP

$13.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 5109308

FTG, CPLR 3/4" MNPT-1/2"MNPT X 1.75" BPP

$8.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 5109308

FTG, CPLR 3/4" MNPT-1/2"MNPT X 1.75" BPP

$8.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 5108601

FTG, STR 1/2" MNPT - 3/8" PTC BPP

$32.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 5108601

FTG, STR 1/2" MNPT - 3/8" PTC BPP

$32.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5109928

MANIFOLD, TEEJET SPRAY SYSTEM

$713.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5109928

MANIFOLD, TEEJET SPRAY SYSTEM

$713.99

$

Usually ships in 2-12 days

0

7-1

Briggs & Stratton 5111674

VALUE, PRESSURE RELIEF 9510-NYB

Note: (Replacement Pressure Relief Valve for item #7, part number 5109928.)

$

$

Currently unavailable

7-1

Briggs & Stratton 5111674

VALUE, PRESSURE RELIEF 9510-NYB

Note: (Replacement Pressure Relief Valve for item #7, part number 5109928.)

$

$

Currently unavailable

8

Briggs & Stratton 5108602

FTG, STR 1/4" FNPT - 3/8" PTC BPP

$38.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5108602

FTG, STR 1/4" FNPT - 3/8" PTC BPP

$38.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 5105941

PRESSURE GAUGE, 60 PSI, BACK MOUNT

$57.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 5105941

PRESSURE GAUGE, 60 PSI, BACK MOUNT

$57.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 5109555

BRKT, U CLAMP FOR 2.5" GAUGE

$17.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5109555

BRKT, U CLAMP FOR 2.5" GAUGE

$17.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5108087

SCR-CAP, HSWH .250"-20 X .500" SS188

$2.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5108087

SCR-CAP, HSWH .250"-20 X .500" SS188

$2.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5106160

SCREW, 1/4-20 X 2 (A0157)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5106160

SCREW, 1/4-20 X 2 (A0157)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 5422133

BRKT, LOWER VALVE MOUNT

$77.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 5422133

BRKT, LOWER VALVE MOUNT

$77.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 5109962

VALVE, 2-WAY, 1/2NPTM X 1/2NPTF

$68.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 5109962

VALVE, 2-WAY, 1/2NPTM X 1/2NPTF

$68.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 5106665

FITTING, 1/2 MPT - 1/2 BARB, 90 ELBOW

$3.99

$

In Stock, only 3 left!

0

15

Briggs & Stratton 5106665

FITTING, 1/2 MPT - 1/2 BARB, 90 ELBOW

$3.99

$

In Stock, only 3 left!

0

16

Briggs & Stratton 5422134

BRKT, VALVE ATONEMENT COVER

$50.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5422134

BRKT, VALVE ATONEMENT COVER

$50.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5106668

FITTING, TEE, 1/2" FPT

$6.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5106668

FITTING, TEE, 1/2" FPT

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 5110026

FITTING, 1/2 MPT - 3/4 BARB, 90 ELBOW

$6.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 5110026

FITTING, 1/2 MPT - 3/4 BARB, 90 ELBOW

$6.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5108461

FTG, STR 3/4" MNPT - 3/4"HB BPP

$5.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5108461

FTG, STR 3/4" MNPT - 3/4"HB BPP

$5.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5110028

FITTING, 1/2 FPT EXTENSION

$24.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5110028

FITTING, 1/2 FPT EXTENSION

$24.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5110029

NIPPLE, 1/2 MPT - 1/2 MPT

$9.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5110029

NIPPLE, 1/2 MPT - 1/2 MPT

$9.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 5108632

STRAINER, Y 3/4" FNPT X 3/4" FNPT

$96.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 5108632

STRAINER, Y 3/4" FNPT X 3/4" FNPT

$96.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 5108265

CLIP, .750" O.D. OIL DRAIN HOSE

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 5108265

CLIP, .750" O.D. OIL DRAIN HOSE

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 5108503

SCR-CAP, SBH #10-24 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 5108503

SCR-CAP, SBH #10-24 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$2.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$2.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 5109897

PUMP, DELEVAN 7 GPM 7971-111E

$564.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 5111994

PUMP, REMCO 7 GPM 5518

$

$

Currently unavailable

27

Briggs & Stratton 5110050

FITTING, 3/4" QA X 3/4" BARB 90 ELBOW

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 5110050

FITTING, 3/4" QA X 3/4" BARB 90 ELBOW

$45.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84008744

CLAMP

$

$

Currently unavailable

28

Briggs & Stratton 84008744

CLAMP

$

$

Currently unavailable

29

Briggs & Stratton 5110420

CLAMP, PINCH 27mm TO 30.1mm

$1.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 5110420

CLAMP, PINCH 27mm TO 30.1mm

$1.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 5423600

HOSE, GAUGE 0.375" PTC X 10"

$5.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 5423600

HOSE, GAUGE 0.375" PTC X 10"

$5.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 5422299

HOSE, CHEM .75" I.D. X 42"

$36.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 5422299

HOSE, CHEM .75" I.D. X 42"

$36.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 5422300

HOSE, CHEM .75" I.D. X 19"

$18.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 5422300

HOSE, CHEM .75" I.D. X 19"

$18.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 5422301

HOSE, CHEM .75" I.D. X 15.5"

$14.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 5422301

HOSE, CHEM .75" I.D. X 15.5"

$14.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 5423599

HOSE, CHEM 0.50" X 49"

$30.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 5423599

HOSE, CHEM 0.50" X 49"

$30.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 5106683

CLAMP, MINIATURE WORM GEAR MAH6
(Superseded to 84009147)

$4.49

$

In Stock, only 4 left!

0

39

Briggs & Stratton 5106683

CLAMP, MINIATURE WORM GEAR MAH6
(Superseded to 84009147)

$4.49

$

In Stock, only 4 left!

0

40

Briggs & Stratton 5106021

SCR-CAP, HEX .250"-20 X 1.500" SSF593C
(Superseded to 84009051)

$3.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 5106021

SCR-CAP, HEX .250"-20 X 1.500" SSF593C
(Superseded to 84009051)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 5106067

WSHR-STL, FLT .281" X .625" X .050" IS SS188
(Superseded to 84010425)

$3.49

$

In Stock, only 1 left!

0

42

Briggs & Stratton 5106067

WSHR-STL, FLT .281" X .625" X .050" IS SS188
(Superseded to 84010425)

$3.49

$

In Stock, only 1 left!

0

43

Briggs & Stratton 5423223

WRAP, HOSE 13/16" ID X 12.0"

$12.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 5423223

WRAP, HOSE 13/16" ID X 12.0"

$12.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 5110255

HEAT SINK, DELEVAN FB SERIES

$39.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 5110255

HEAT SINK, DELEVAN FB SERIES

$39.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 84008665

HOSE, Chemical

$45.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 84008665

HOSE, Chemical

$45.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 5422298

HOSE, CHEM .5" I.D. X 76"

$45.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 5422298

HOSE, CHEM .5" I.D. X 76"

$45.99

$

Usually ships in 2-12 days
