LZ 250600 V - Lesco Ranger 54" Stand-On Spreader Sprayer Spreader Deflector Parts Diagram

Ranger 54" Stand-On Spreader Sprayer

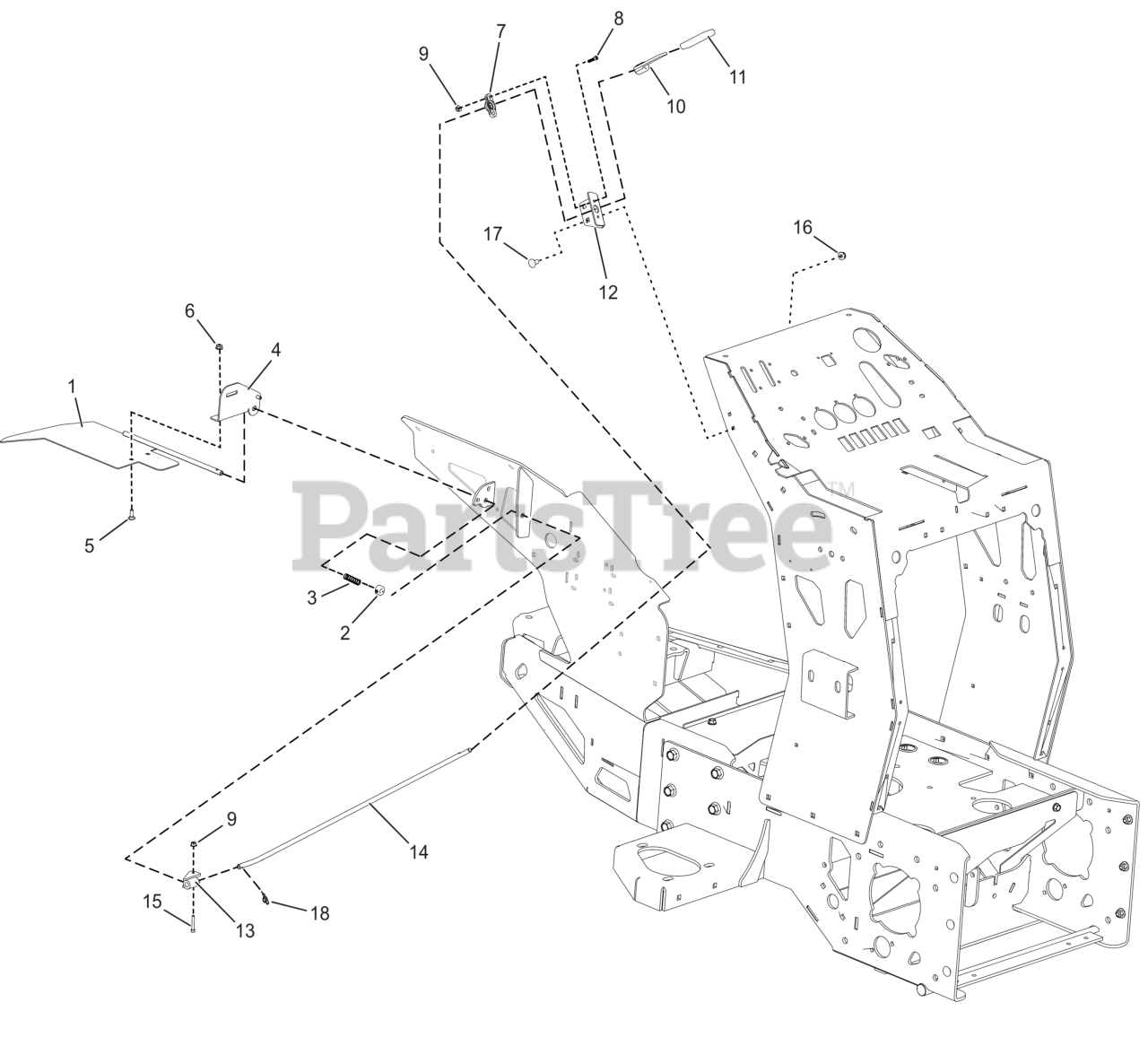

Spreader Deflector Parts Diagram

  • Title

1

5422004

WELD, DIVERTER SHIELD RANGER

$

$

Not available

2

5106023

COLLAR, SHAFT .375ID X .750OD X .375WD

$

$

Not available

3

5106027

SPRING, COMPRESSION .480" OD X 1.500 LONG SS

$

$

Not available

4

5420014

BRACKET, ACTUATE DEFLECTOR

$

$

Not available

5

5108774

BLT-RDHDSQNK .250"-20 X .750" SS188

$

$

Not available

6

5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$

$

Not available

7

5107702

BEARING, FLANGE IGUS EFOI-6

$

$

Not available

8

5107644

SCR-CAP, SH #10-24 X .750" SS188

$

$

Not available

9

5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$

$

Not available

10

5420027

WELD, LEVER TRIM SHIELD

$

$

Not available

11

5105900

GRIP, .188" X 1.00" ID X .150" THK CLSD CELL FOAM

$

$

Not available

12

5422001

BRKT, TRIM SHIELD CONTROL MOUNT

$

$

Not available

13

5422692

WELD, DEFLECTOR SWIVEL JOINT

$

$

Not available

14

5110199

ROD, DEFLECTOR CONTROL

$

$

Not available

15

5106674

SCR-CAP SH, #10-24 X 1.250" SS188

$

$

Not available

16

5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$

$

Not available

17

5107688

BLT-RDHDSQNK, .3125"-18 X .750" SS188

$

$

Not available

18

5107640

RING, RUE .375" SS

$

$

Not available
