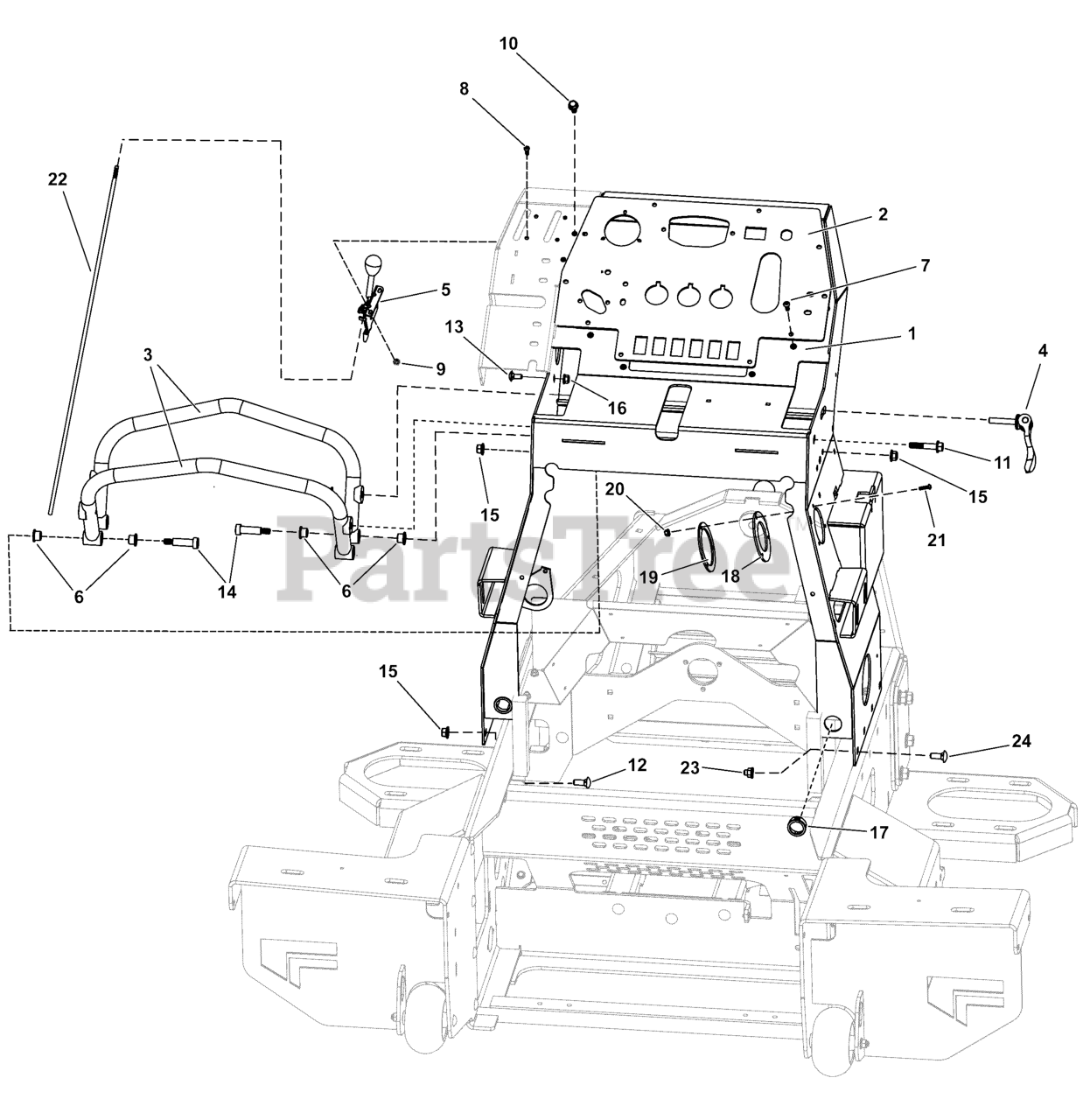

LZ 250800 V - Lesco Stand-On Spreader Sprayer Console Group Parts Diagram

Stand-On Spreader Sprayer

Console Group Parts Diagram

  • Title

1

5418904

WELD, CONSOLE

$

$

Not available

2

5418937

PLATE, CONSOLE (GEN 1)

Note: (Serial Number: 30000003393 & Below)

$

$

Not available

2

5421994

PLATE, CONSOLE (GEN 2)

Note: (Serial Number: 30000003394 & Above)

$

$

Not available

3

5421606

BAR, FORWARD SPEED PAINTED LESCO

$

$

Not available

4

5108815

LEVER CAM LOCK

$

$

Not available

5

5101995

LEVER, HEAVY DUTY, THROTTLE CONTROL

$

$

Not available

6

5108816

BSHG-FL, .500" X .625" X .500", .875"x .062" IR

$

$

Not available

7

5108207

SCR-CAP, SBH .250-20 X .750" SS188

$

$

Not available

8

5107656

SCR-CAP, SBH #12-24 X .750" SS188

$

$

Not available

9

5107646

NUT-HEX, KEPS #12-24 SS188

$

$

Not available

10

5108284

SCR-CAP, HSWH .313"-18 X .750" SS188

$

$

Not available

11

5108336

SCR-CAP, HSWH .375"-16 X 2.000" SS188

$

$

Not available

12

5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$

$

Not available

13

5107688

BLT-RDHDSQNK, .3125"-18 X .750" SS188

$

$

Not available

14

5108131

BLT-SLDR,SH.50"X1.50",.375"-16X.63"SS188

$

$

Not available

15

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

16

5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$

$

Not available

17

5108598

BUSHING, SNAP 1" ID

$

$

Not available

18

5108750

GASKET, INTAKE HOSE

$

$

Not available

19

5420280

FLANGE, RUBBER GASKET

$

$

Not available

20

5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$

$

Not available

21

5108503

SCR-CAP, SBH #10-24 X .750" SS188

$

$

Not available

22

5101074

CABLE, THROTTLE, 40"

$

$

Not available

23

5107643

NUT-HEX-FGLK, .375"-16 SS188

$

$

Not available

24

5107616

SCR-CAP, HSWH .375"-16 X 1.250" SS188

$

$

Not available
