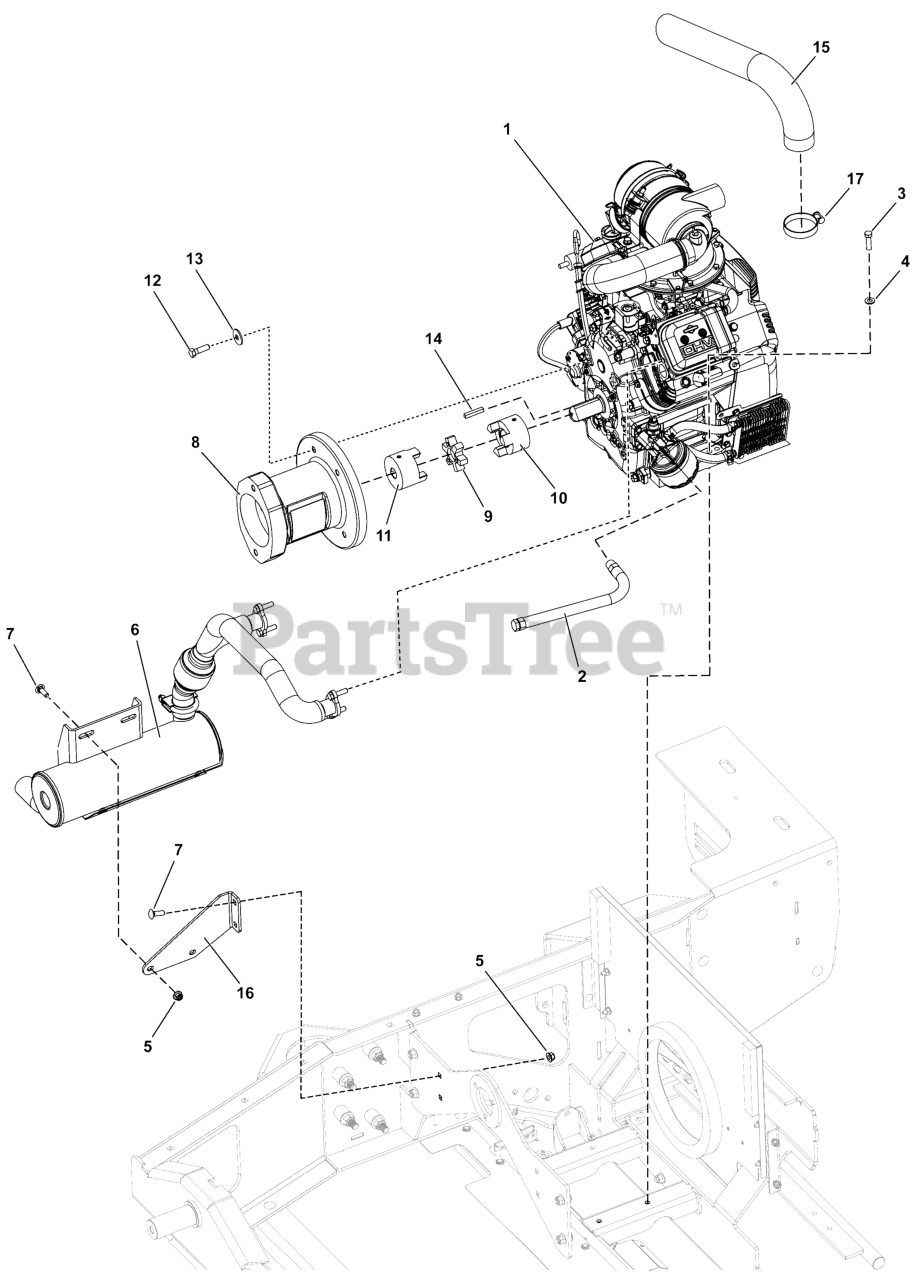

LZ 250800 V - Lesco Stand-On Spreader Sprayer Engine Group Parts Diagram

Stand-On Spreader Sprayer

Engine Group Parts Diagram

  • Title

1

ENGINE, VANGUARD

Note: (Refer to Note: *)Note: *See authorized engine manufacturer service dealer for replacement service parts.

$

$

Not available

2

Briggs & Stratton 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$20.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 5106293

SCR-CAP, HEX .3125"-18 X 1.750" SS188

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 5107654

WSHR-SS, FLT .344"X.688"X.065" SAE

$2.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 5108780

EXHAUST, ENGINE

$580.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5107627

COUPLER, ENGINE B FLANGE

$377.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 5108100

SPIDER INSERT, JAW COUPLING L099/100

$33.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5108101

HUB, L-100 X 1-1/8 STD 1/4 X 1/8 KW

$79.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5108102

HUB, L-100 X 3/4 W/ 3/16 KW

$79.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5107635

SCR-CAP, HEX .375"-16 X 1.250" F593C

$2.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 5107704

WSHR-SS, BLV .386"X1.063"X.083" 17-7PH

$9.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 5107696

KEY, STUSQ .250" X 1.500" LC

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 5108735

HOSE, INTAKE ENGINE

$53.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5420325

BRACKET, MUFFLER MOUNT

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 807377

CLAMP

$6.99

$

Usually ships in 2-12 days

0
