LZ 250800 V - Lesco Stand-On Spreader Sprayer Hopper Group Parts Diagram

Stand-On Spreader Sprayer

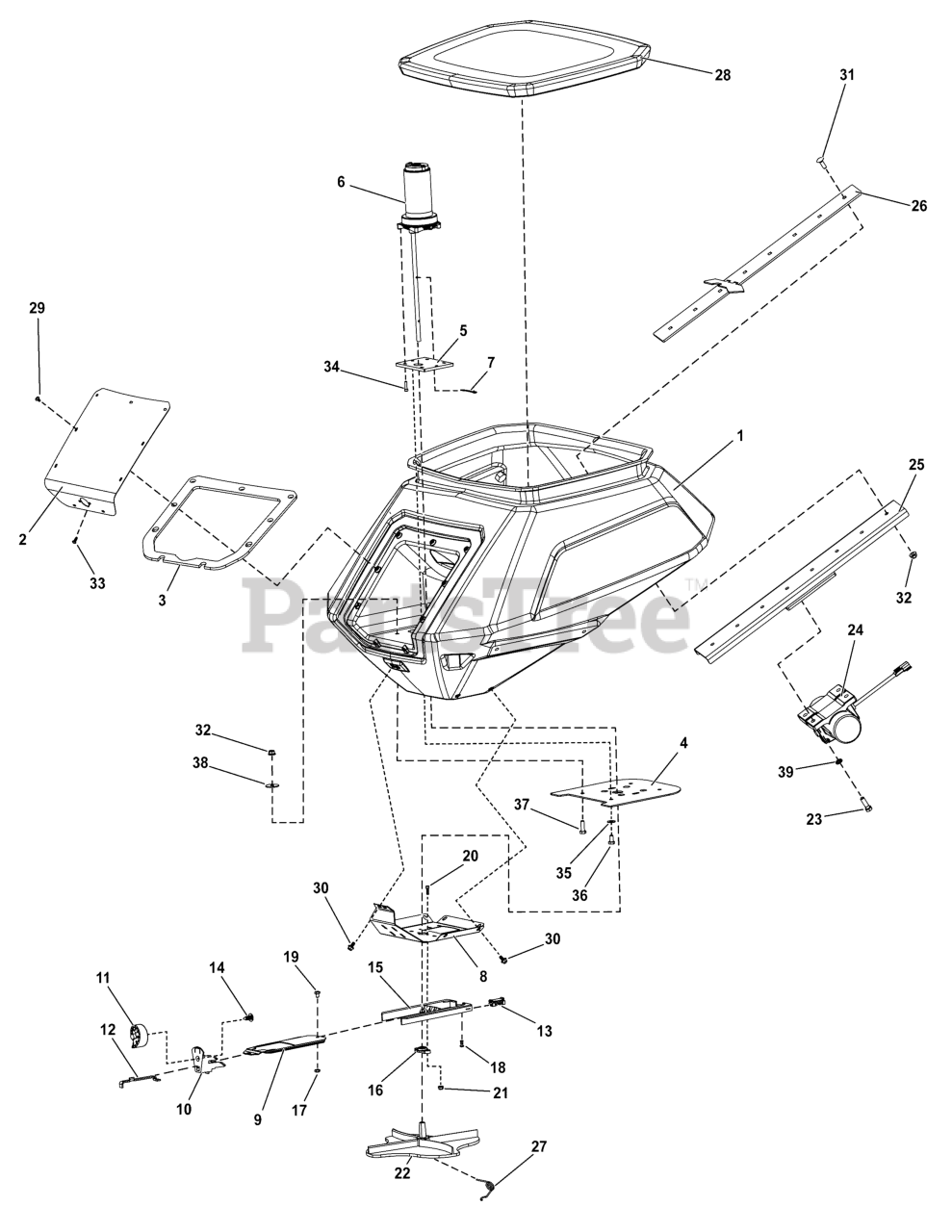

Hopper Group Parts Diagram

  • Title

1

Briggs & Stratton 5109660

HOPPER, GRANULAR LESCO 250 LBS.

$465.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 5421605

SHROUD, MOTOR HOPPER LESCO

$120.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 5108251

GASKET, MOTOR HOPPER

$50.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 5418978

PLATE, SCREEN SUPPORT CENTER

$32.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 5418220

BRACKET, GEARMOTOR, SUPPORT
(Superseded to 84009083)

$58.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 5107701

GEARMOTOR, SPINNER PLATTER

$521.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5105875

CLIP, SPINNER AGITATOR
(Superseded to 5105875FS)

$12.99

$

In Stock, Qty 12

0

8

Briggs & Stratton 5419442

BRACKET, HOPPER BOTTOM

$46.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 5419448

PLATE, RATE GATE OFFSET

$57.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5105888

MOUNT, SPREADER DIAL

$13.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 5105913

DIAL, CONTROLLER

$10.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 5105942

PLATE, STOPPER, GATE OPENING

$35.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 5105933

GUIDE, RATE GATE & DIFFUSER

$6.99

$

In Stock, Qty 16

0

14

Briggs & Stratton 5105953

PINE TREE CLIP, SPREADER FOR DIA .33"

$5.99

$

In Stock, only 3 left!

0

15

Briggs & Stratton 5106014

BAFFLE, SPREADER DIFFUSER

$24.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 5107702

BEARING, FLANGE IGUS EFOI-6
(Superseded to 84008991)

$19.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5105915

NUT-HEX-NYLK, .250"-20 TH SS188

$3.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 5105921

FITTING, SWIVEL ACCUWAY

$21.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 5105894

SCR-CAP, HEX .250"-20 X .375" SS188 SPC

$12.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 5108132

SCR-CAP, SH #10-24 X .625" SS188

$2.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$2.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 5105880

PLATTER, Spinner
(Superseded to 84009996)

$54.99

$

In Stock, Qty 16

0

23

Briggs & Stratton 5107635

SCR-CAP, HEX .375"-16 X 1.250" F593C

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 5108690

VIBRATOR, Z80 12VDC

$552.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 5419872

WELD, VIBRATOR MOUNT

$170.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 5419892

WELD, SCREEN SUPPORT

$82.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 5105879

CLIP, SPREADER SPINNER
(Superseded to 84009152)

$11.99

$

In Stock, only 4 left!

0

28

Briggs & Stratton 5108508

COVER, HOPPER FS5250 VOYAGER

$79.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 5107705

SCR-CAP, SBWH #10-24 X .375" SS188

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 5108087

SCR-CAP, HSWH .250"-20 X .500" SS188

$2.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$2.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 5108534

SCR-TAP, PLPH 10-14X.500" TR 48-2 SS188

$2.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 5106676

SCR-CAP SH, #10-32 X .750" SS188
(Superseded to 84010130)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 5106009

WSHR-STL, FLT .343" X .750" X .050" SPC SS188
(Superseded to 84010428)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 5106649

SCR-CAP, HEX .3125"-18 X .625" SS188
(Superseded to 84010133)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 5106576

SCR-CAP, HEX .3125"-18 X 1.000" SS188

$2.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 5107652

WSHR-SS, FLT .348"X1.250"X.065" FEN

$2.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 5108674

WSHR-NORD LOCK 0.406" X 0.654" ZP

$2.49

$

Usually ships in 2-12 days

0
