LZ 250800 V - Lesco Stand-On Spreader Sprayer Main Frame Group Parts Diagram

Stand-On Spreader Sprayer

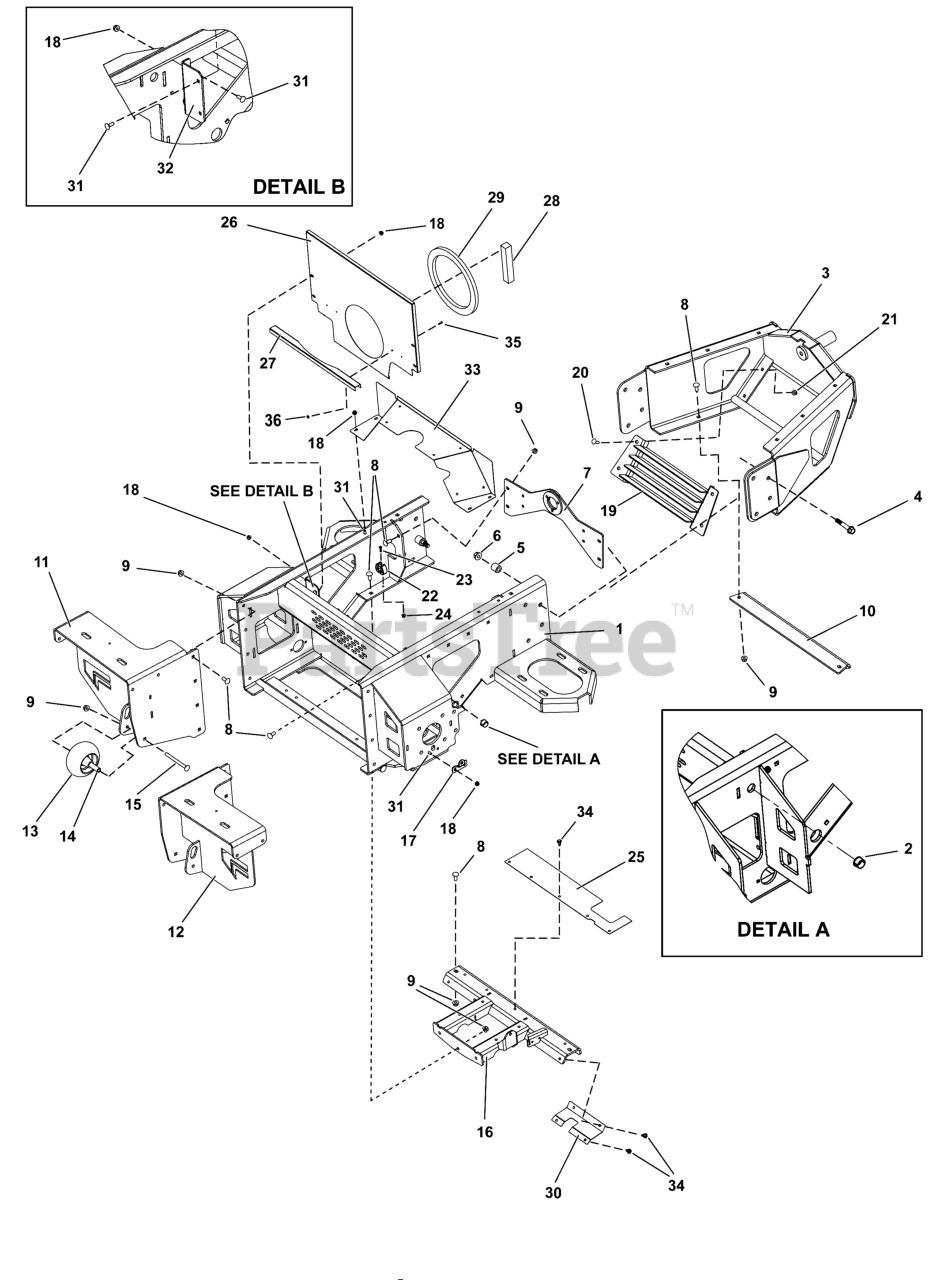

Main Frame Group Parts Diagram

  • Title

1

5418924

WELD, FRAME REAR

$

$

Not available

2

5108335

BUSHING, SNAP .69" I.D.

$

$

Not available

3

5418925

WELD, FRAME FRONT

$

$

Not available

4

5108775

SCR-CAP, HWH .500"-13 X 3.000" F593C

$

$

Not available

5

5108793

SPCR-SS, 303 .510" X 1.00" X 1.00"

$

$

Not available

6

5107637

NUT-HEX-NYLK, FLG .500"-13 SS188

$

$

Not available

7

5418911

WELD, REAR PIVOT CROSS-MEMBER

$

$

Not available

8

5107639

BLT-RDHDSQNK, .375"-16 X 1.000" SS188

$

$

Not available

9

5107638

NUT-HEX-NYLK, FLG .375"-16 SS188

$

$

Not available

10

5420323

BRACKET, FRONT CROSS MEMBER

$

$

Not available

11

5418926

WELD, TANK MOUNT LEFT REAR

$

$

Not available

12

5418927

WELD, TANK MOUNT RIGHT REAR

$

$

Not available

13

5105521

WHEEL, ANTI SCALP, 5"

$

$

Not available

14

5107650

SPCR-SS, 303 .375" X .625" X 3.375"

$

$

Not available

15

5107681

BLT-RDHDSQNK, .375"-16 X 4.500" SS188

$

$

Not available

16

5418184

WELD, ENGINE SERVICE

$

$

Not available

17

5419654

BRKT, SPEED SENSOR MOUNT

$

$

Not available

18

5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$

$

Not available

19

5419691

WELD, LOUVER FRONT INTAKE

$

$

Not available

20

5107645

BLT-RDHDSQNK, .3125"-18 X 1.000" SS188

$

$

Not available

21

5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$

$

Not available

22

5108265

CLIP, .750" O.D. OIL DRAIN HOSE

$

$

Not available

23

5108503

SCR-CAP, SBH #10-24 X .750" SS188

$

$

Not available

24

5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$

$

Not available

25

5420317

PLATE, FWD HEAT SHIELD

$

$

Not available

26

5420309

BRKT, ENGINE PARTITION

$

$

Not available

27

5420310

BRKT, PARTITION SUPPORT

$

$

Not available

28

5108770

FOAM, PARTITION SEAL

$

$

Not available

29

5108771

FOAM, PARTITION ROTATING SCREEN

$

$

Not available

30

5420329

BRKT, REAR HEAT SHIELD

$

$

Not available

31

5108774

BLT-RDHDSQNK .250"-20 X .750" SS188

$

$

Not available

32

5420311

PLATE, PARTITION MOUNT

$

$

Not available

33

5420260

BRACKET, HEAT SHIELD EXH TOP

$

$

Not available

34

5108769

CLIP, PUSH IN, BLK, .312 X .529 LG.

$

$

Not available

35

5108096

SCR-CAP, SBH #6-32 X .500" SS188

$

$

Not available

36

5108089

NUT-HEX, KEPS #6-32 SS188

$

$

Not available
