LZ 250800 V - Lesco Stand-On Spreader Sprayer Pump and Valves Group Serial Number 051723001 and Above Parts Diagram

Stand-On Spreader Sprayer

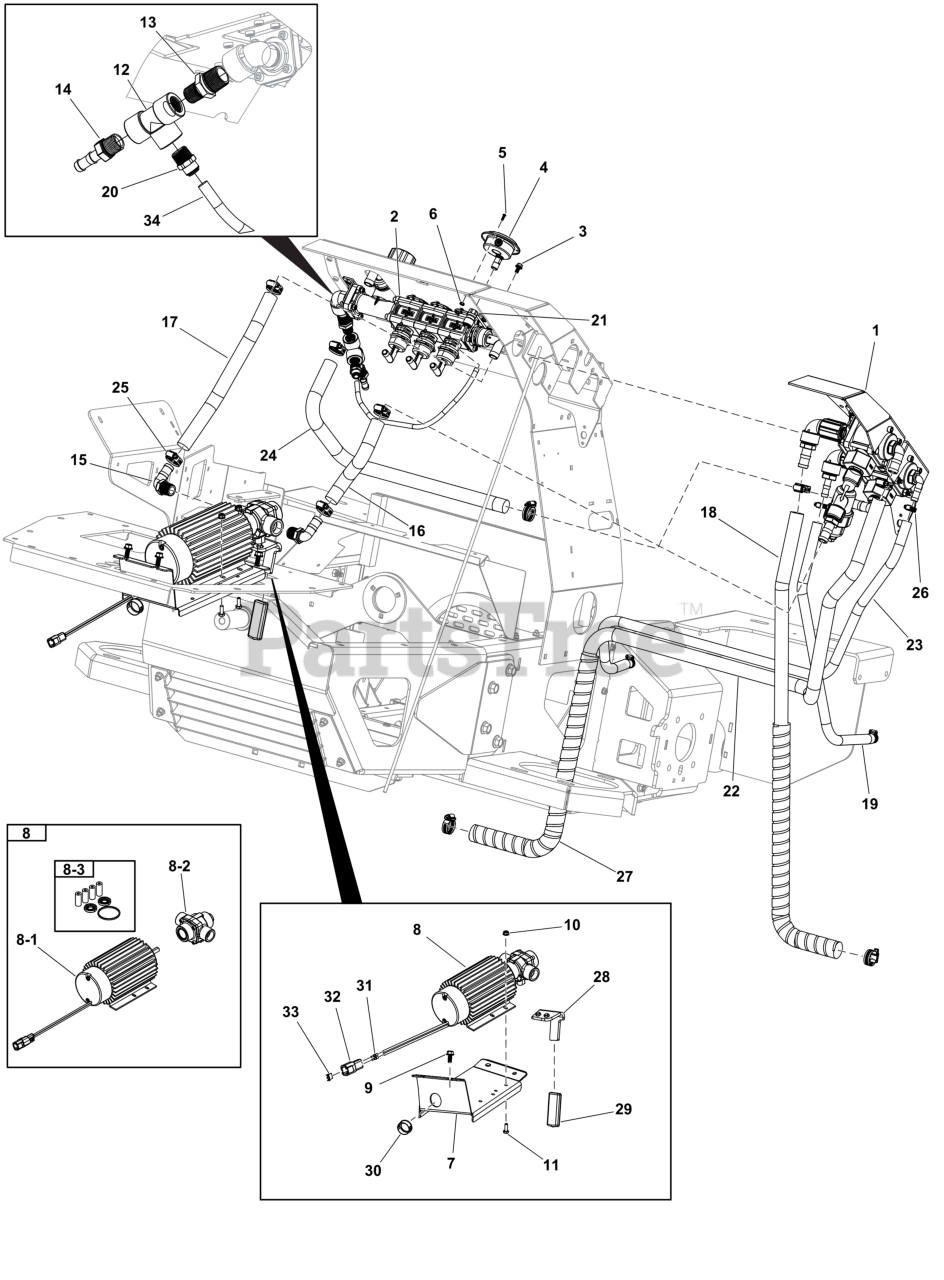

Pump and Valves Group Serial Number 051723001 and Above Parts Diagram

  • Title

1

Refer to: Tank Valve Assembly Group

$

$

Not available

2

Briggs & Stratton 5109928

MANIFOLD, TEEJET SPRAY SYSTEM

$713.99

$

Usually ships in 2-12 days

0

2-1

Briggs & Stratton 5111674

VALUE, PRESSURE RELIEF 9510-NYB

Note: (Replacement Pressure Relief Valve for item #2, part number 5109928.)

$

$

Currently unavailable

3

Briggs & Stratton 5108087

SCR-CAP, HSWH .250"-20 X .500" SS188

$2.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 5107700

GAUGE, PRESSURE PANEL MOUNT 60 PSI

$427.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 5108096

SCR-CAP, SBH #6-32 X .500" SS188

$2.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 5108089

NUT-HEX, KEPS #6-32 SS188

$2.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5419843

BRACKET, MOUNT SPRAY PUMP

$89.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5601487

KIT, 9GPM SPRAY PUMP W/CONNECTOR

$

$

Currently unavailable

8-1

Briggs & Stratton 5422338

MOTOR, PUMP W/ CONNECTOR

$1447.99

$

Usually ships in 2-12 days

0

8-2

Briggs & Stratton 5110039

PUMP, ROLLER HYPRO 4001X-4

$1308.99

$

Usually ships in 2-12 days

0

8-3

KIT, REBUILD PUMP HYPRO 3430-0390

$

$

Not available

9

Briggs & Stratton 5108284

SCR-CAP, HSWH .313"-18 X .750" SS188

$2.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5106214

SCR-CAP, HEX .250"-20 X .750" SS188
(Superseded to 84010151)

$3.49

$

In Stock, only 2 left!

0

12

Briggs & Stratton 5109309

FTG, T 1/2" FNPT BPP

$13.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 5109308

FTG, CPLR 3/4" MNPT-1/2"MNPT X 1.75" BPP

$8.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 5108462

FTG, STR 1/2" MNPT - 1/2" HB BPP

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 5108459

FTG, ELBW 90° 3/4" MNPT - 3/4" HB BPP

$7.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5420075

HOSE, CHEM .75" X 8.5"

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5420076

HOSE, CHEM .75" X 9.5"

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 5420071

HOSE, CHEM .75" X 48"

$47.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5420073

HOSE, CHEM .50" X 27.5"

$21.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5108601

FTG, STR 1/2" MNPT - 3/8" PTC BPP

$32.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5108602

FTG, STR 1/4" FNPT - 3/8" PTC BPP

$38.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 5420072

HOSE, CHEM .75" X 68"

$65.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 5420074

HOSE, CHEM .50" X 46"

$35.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 5420077

HOSE, CHEM .75" X 23"

$22.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 5108877

CLAMP, HOSE, WORM GEAR, 11/16" TO 1-1/4"

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 5106683

CLAMP, MINIATURE WORM GEAR MAH6
(Superseded to 84009147)

$4.49

$

In Stock, only 4 left!

0

27

Briggs & Stratton 5420367

WRAP, HOSE 1.25" ID X 30.0"

$49.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 5419844

ARM, TORQUE ROLLER PUMP

$30.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 5105900

GRIP, .188" X 1.00" ID X .150" THK CLSD CELL FOAM
(Superseded to 84009478)

$17.99

$

In Stock, only 4 left!

0

30

Briggs & Stratton 5108598

BUSHING, SNAP 1" ID

$2.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 5108319

PIN CONTACT, SIZE 12, SOLID DEUTSCH

$2.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 5107784

RECEPTACLE, DTP, 2 PIN GREY

$

$

Not available

33

Briggs & Stratton 5107785

WEDGELOCK, WP-2P

$

$

Not available

34

HOSE, Chemical (3/8 OD, PTC, 10' length)

$

$

Not available
