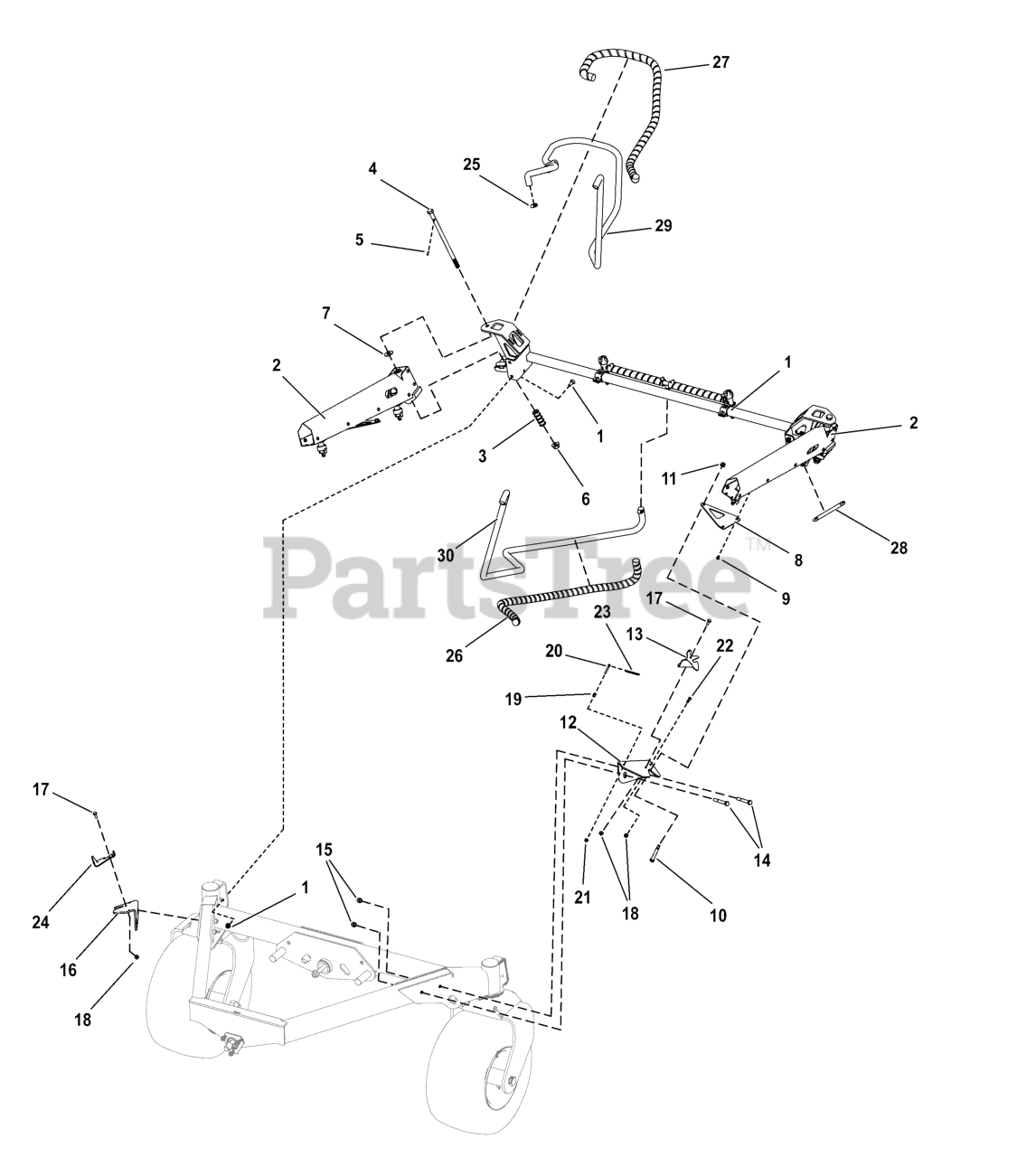

LZ 250800 V - Lesco Stand-On Spreader Sprayer Spray Boom Group Parts Diagram

Stand-On Spreader Sprayer

Spray Boom Group Parts Diagram

  • Title

1

Refer to: Spray Boom Group - Center Boom

$

$

Not available

2

Refer to: Spray Boom Group - Outer Wing Boom

$

$

Not available

3

Briggs & Stratton 5108206

SPRG, ELA .500" X 2.26", 33#/IN

$28.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 5108530

SCR-CAP, HEX .50"-13 X 9.50" SS188 SPC

$20.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 5108532

PIN, ROLL 0.187" X 1.00" SS188

$2.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 5107637

NUT-HEX-NYLK, FLG .500"-13 SS188

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 5108203

WSHR-SS, FLT .535"X1.250"X.065" FEN 188

$2.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 5420231

BRKT, BOOM PIN, FLAT

$12.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 5108320

SCR-CAP, SBH .250"-20 X .375" SS188
(Superseded to 84010141)

$2.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 5108686

BLT-SLDR,SH.375"X2.00",.313"-18X.50SS188

$15.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 5107653

NUT-HEX-NYLK, FLG .3125"-18 SS188

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 5420180

BRACKET, MOUNT BOOM CATCH RH

$23.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 5420181

BRACKET, BOOM CATCH RH

$15.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 5109009

SCR-CAP, HEX .375"-16 X 2.750" SS188

$2.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 5106006

NUT-HEX-NYLK, .375"-16 SS188
(Superseded to 5106006FS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 5420055

BRACKET, MOUNT BOOM CATCH LH

$20.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 5106214

SCR-CAP, HEX .250"-20 X .750" SS188
(Superseded to 84010151)

$3.49

$

In Stock, only 2 left!

0

18

Briggs & Stratton 5107655

NUT-HEX-NYLK, FLG .250"-20 SS188

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 5108805

STANDOFF, HEX .3125"X.500, 10-24 SS188

$15.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 5108533

SCR-CAP, SH #10-24 X 1.500" PT SS188

$2.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 5108133

NUT-HEX-NYLK, FLG .#10-24 SS188

$2.49

$

In Stock, only 1 left!

0

22

Briggs & Stratton 5108687

SCR-CAP, SH .250"-20 X .625" SS188

$2.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 5108676

SPRING,EXT 2.438" XØ.25"X1.74LBF/IN SS

$7.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 5420056

BRACKET, BOOM CATCH LH

$15.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 5106683

CLAMP, MINIATURE WORM GEAR MAH6
(Superseded to 84009147)

$4.49

$

In Stock, only 4 left!

0

26

Briggs & Stratton 5420365

WRAP, HOSE .813" ID X 26.0"

$19.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 5420366

WRAP, HOSE .813" ID X 41.0"

$30.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 5108691

TRIM, U-CHANNEL .031" X .156" X 7.25" LONG

$3.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84008665

HOSE, Chemical

$45.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84008666

HOSE, Chemical

$51.99

$

Usually ships in 2-12 days
